CRL PH2790SH0RH85 Rixson PH27 8.5Lb Offset 90 Hold Open Floor Closer Body - Right HandCRL PH2790SH0RH85 Rixson Model PH27 8.5 Lb. Offset 90 Degree Selective Hold Open Floor Mounted Closer Body Only - Right Hand is engineered for superior door control in both exterior and interior applications. This robust closer accommodates doors weighing up to 450 lbs. (204 kg) and measuring up to 48" (1.22 m) in width, making it a versatile choice for a variety of settings. The closer features a selective on or off hold open function, allowing for customized usage based on your needs. Its built-in positive dead stop ensures reliable operation and extends the longevity of the door and hardware. The design incorporates independent valves for closing, latching, and backcheck adjustments, providing precise control over door movement. With a body height of 4-1/16 in. (103.2 mm), length of 11-1/8 in. (282.6 mm), and width of 5-7/8 in. (149.2 mm), the closer is compact yet powerful. It complies with ANSI 117.1 and ANSI 156.4 Grade 1 standards, ensuring quality and reliability. For optimal performance, consider additional accessories such as the floor closer cement case or offset pivots. C.R. Laurence is a trusted source for Rixson products, providing expert support for your hardware needs.

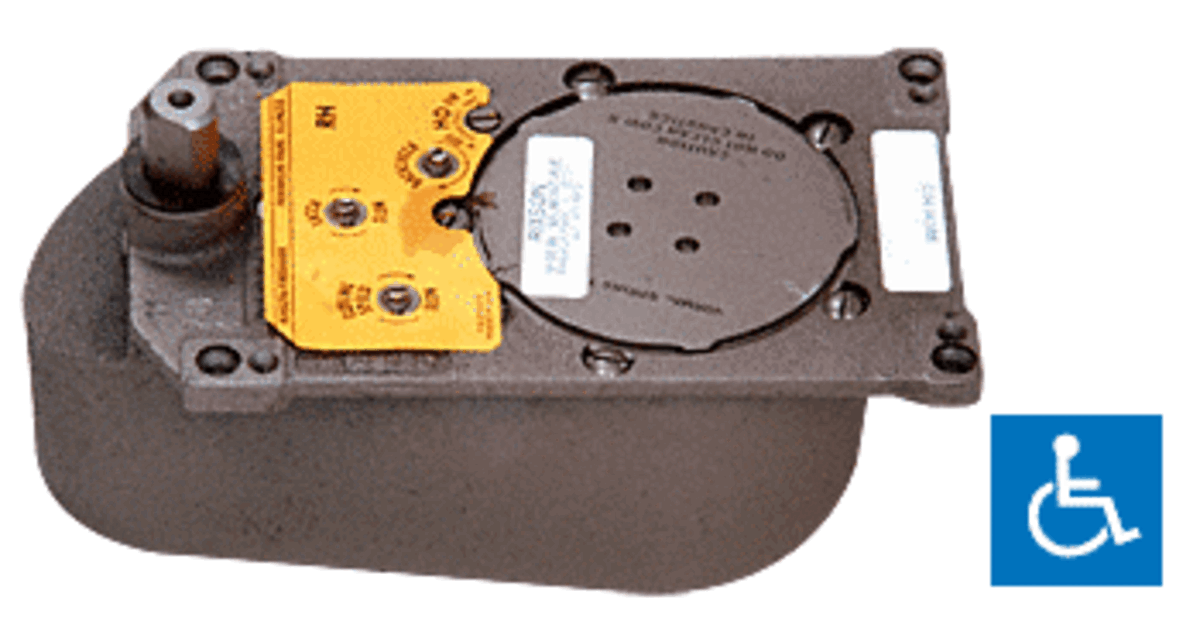

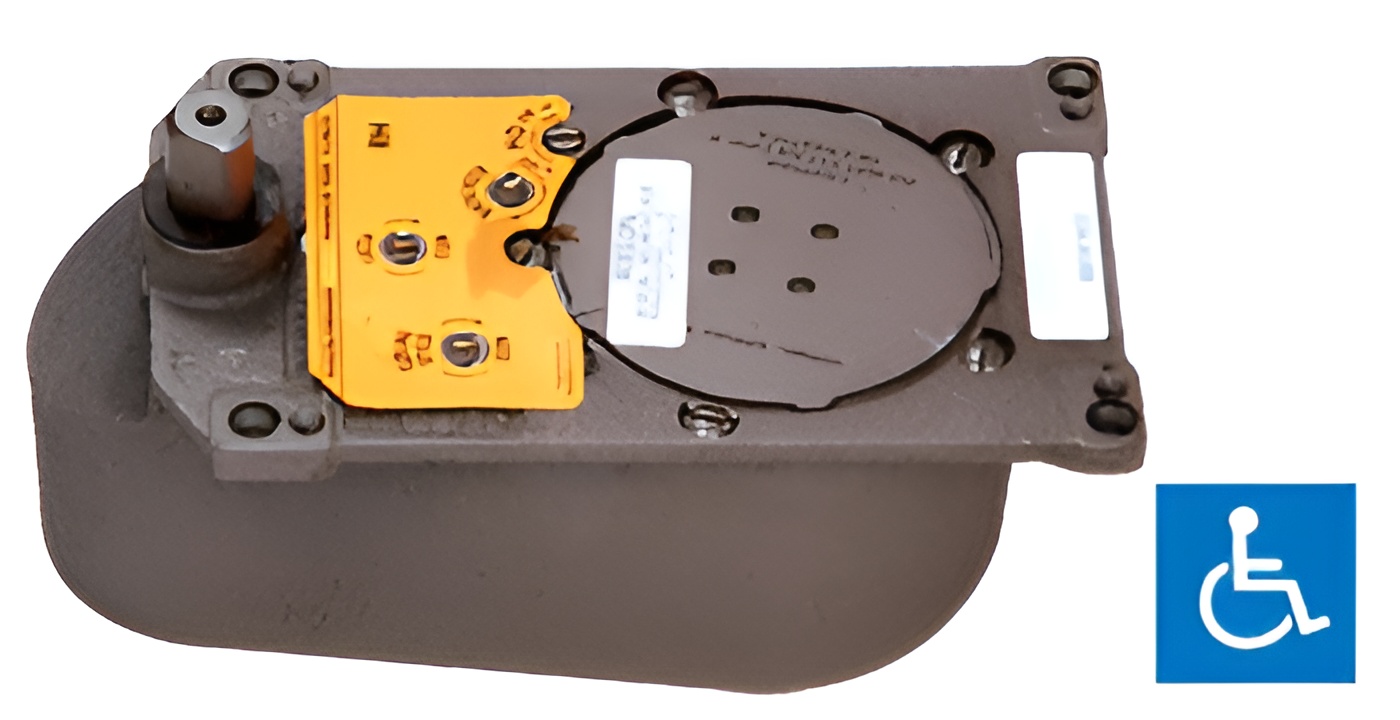

Rixson Model PH27 8.5 Lb. Offset 90 Degree Selective Hold Open Floor Mounted Closer Body Only - Right Hand
- For Exterior or Interior Doors Weighing Up to 450 Lbs. (204 kg) and 48" (1.22 m) Wide
- Selective On or Off Hold Open
- Built-in Positive Dead Stop
This
Rixson® Model 27 Offset Floor Mounted Door Closer provides the best mechanical means of controlling a door. The weight of the door is supported by the bottom arm, which is directly connected to the floor closer spindle. The direct connection between the bottom arm and the floor closer spindle creates a tremendous increase in closing efficiency compared to surface or overhead concealed closers. This closer is capable of supporting exterior or interior doors weighing up to 450 lbs. (204 kg) and 48" (1.22 m) Wide.
Standard features include selective on or off hold open, build-in positive dead stop, and separate independent valves for closing, latch and backcheck adjustments.
NOTE: CRL is a stocking Rixson® Specialty Door Control Distributor. If you need Rixson® products please contact our Technical Sales Department for assistance.
NOTE: Although A.D.A. Series Door Closers comply with A.D.A. specified opening forces, they might not provide adequate spring power to control and close the door due to varying site conditions and door size.
Optional accessories that may be needed:
253000 Floor Closer Cement Case
274750RH Closer Cover
252050RH Bottom Offset Arm
R180 Top Offset Pivot
M19RH Intermediate Offset Pivots.
Additional finishes and accessories are available upon request for quotation.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Adjustable Hydraulic Backcheck: Yes
Americans with Disabilities Act: Yes
Body Height: 4-1/16 in. (103.2 mm)
Body Length: 11-1/8 in. (282.6 mm)
Body Widt: 5-7/8 in. (149.2 mm)
Body Width: 5-7/8 in. (149.2 mm)
Brand: Rixson
Built In Positive Dead Stop: Yes
Certification: ANSI 117.1, ANSI 156.4 Grade 1
Closer Body Only: Yes
Closer Type: Floor Closer
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height May Require Intermediate Pivots: Yes
Door Opening: 90 °
Handing: Right Hand
Independent Closing and Latching Valves: Yes
Interior Or Exterior Doors: Yes
Maximum Door Width - Exterior: 48 in. (1219.2 mm)
Maximum Door Width - Interior: 48 in. (1219.2 mm)
Maximum Weight Center Hung: 450 lbs. (204.1 kg)
Non Stocked Parts and Acessories Special Order: Yes
Recommended Door Type: Aluminum, Hollow Metal
Selective Hold Open: Yes
Series: 27
Shipping Limitations: None
Similar: BTS75VBF90HO, BTS80BF, J993HOD, J994HOD
Spring Size: 8.5
UL Listed: Yes
