CRL PH2890SH0RH85 Rixson PH28 8.5 lb Center-Hung 90 Floor-Mounted Closer Body - Right HandC.R. Laurence Rixson Model PH28 8.5 Lb. Center-Hung 90 Degree Selective Hold Open Floor Mounted Closer Body Only - Right Hand is engineered for superior door control, accommodating both exterior and interior doors weighing up to 350 lbs (158 kg) and 48" wide (1.22 m). This closer features a selective on or off hold open functionality, allowing for flexible operation based on user needs. The mechanical efficiency of the closer is enhanced by the direct connection of the bottom arm to the floor closer spindle, which significantly improves closing performance compared to traditional surface-mounted or overhead concealed closers. A built-in positive dead stop ensures reliable door positioning, while independent valves for closing, latching, and backcheck adjustments allow for precise tuning. Constructed to meet ANSI 117.1 and ANSI 156.4 Grade 1 certification standards, this floor closer provides robust functionality for high-traffic environments. It’s also designed for ADA compliance, making it suitable for a variety of settings. For optimal installation, optional accessories such as the Floor Closer Cement Case and Closer Cover are available. With its durable build and thoughtful design, the Rixson Model PH28 is a dependable choice for professionals seeking quality in door control solutions.

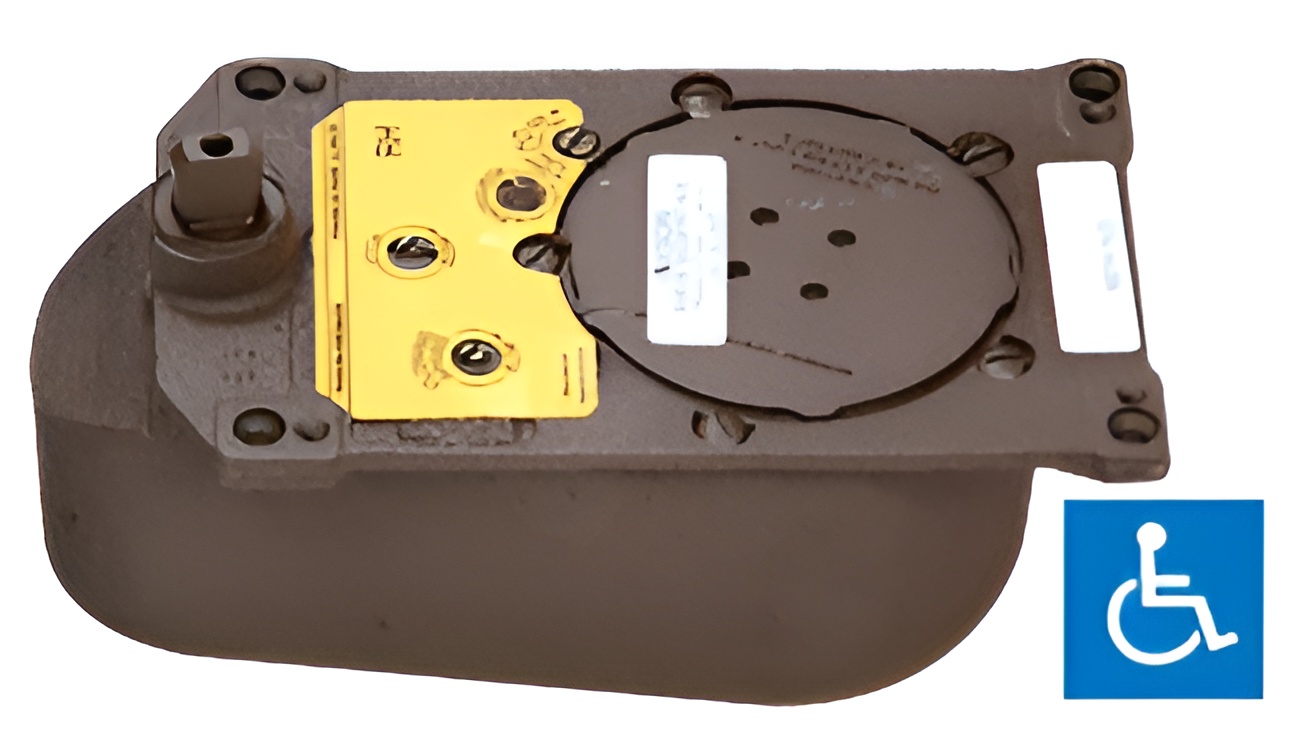

Rixson Model PH28 8.5 Lb. Center-Hung 90 Degree Selective Hold Open Floor Mounted Closer Body Only - Right Hand
- For Exterior or Interior Doors Weighing Up to 350 Lbs. (158 kg) and 48" (1.22 m) Wide
- Selective On or Off Hold Open
- Built-in Positive Dead Stop
This
Rixson® Model 28 Center-Hung Floor Mounted Door Closer provides the best mechanical means of controlling a door. The weight of the door is supported by the bottom arm, which is directly connected to the floor closer spindle. The direct connection between the bottom arm and the floor closer spindle creates a tremendous increase in closing efficiency compared to surface or overhead concealed closers. This closer is capable of supporting exterior or interior doors weighing up to 350 lbs. (158 kg) and 48" (1.22 m) Wide.
Standard features include selective on or off hold open, build-in positive dead stop, and separate independent valves for closing, latch and backcheck adjustments.
NOTE: Although A.D.A. Series Door Closers comply with A.D.A. specified opening forces, they might not provide adequate spring power to control and close the door due to varying site conditions and door size.
NOTE: CRL is a stocking Rixson® Specialty Door Control Distributor. If you need Rixson® products please contact our Technical Sales Department for assistance.
Optional accessories that may be needed are:
253000
Floor Closer Cement Case
284720RH
Closer Cover
282026
Bottom Center-Hung Arm
340
Top Center-Hung Pivot
Additional finishes and accessories are available upon request for quotation.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable Hydraulic Backcheck: Yes
Americans with Disabilities Act: Yes
Body Height: 4-1/16 in. (103.2 mm)
Body Length: 11-1/8 in. (282.6 mm)
Body Widt: 5-7/8 in. (149.2 mm)
Body Width: 5-7/8 in. (149.2 mm)
Brand: Rixson
Built In Positive Dead Stop: Yes
Certification: ANSI 117.1, ANSI 156.4 Grade 1
Closer Body Only: Yes
Closer Type: Floor Closer
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 102 in. (2590.8 mm)
Door Opening: 90 °
Handing: Right Hand
Independent Closing and Latching Valves: Yes
Interior Or Exterior Doors: Yes
Maximum Door Width - Exterior: 48 in. (1219.2 mm)
Maximum Door Width - Interior: 48 in. (1219.2 mm)
Maximum Weight Center Hung: 350 lbs. (158.8 kg)
Non Stocked Parts and Acessories Special Order: Yes
Recommended Door Type: Aluminum, Hollow Metal
Selective Hold Open: Yes
Series: 28
Shipping Limitations: None
Similar: BTS75VBF90HO, BTS80BF, J993HOD, J994HOD
Spring Size: 8.5
UL Listed: Yes
