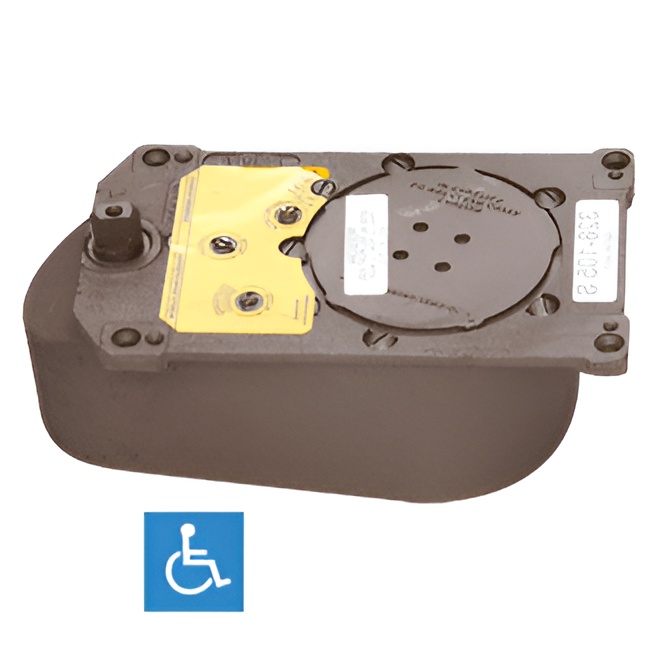

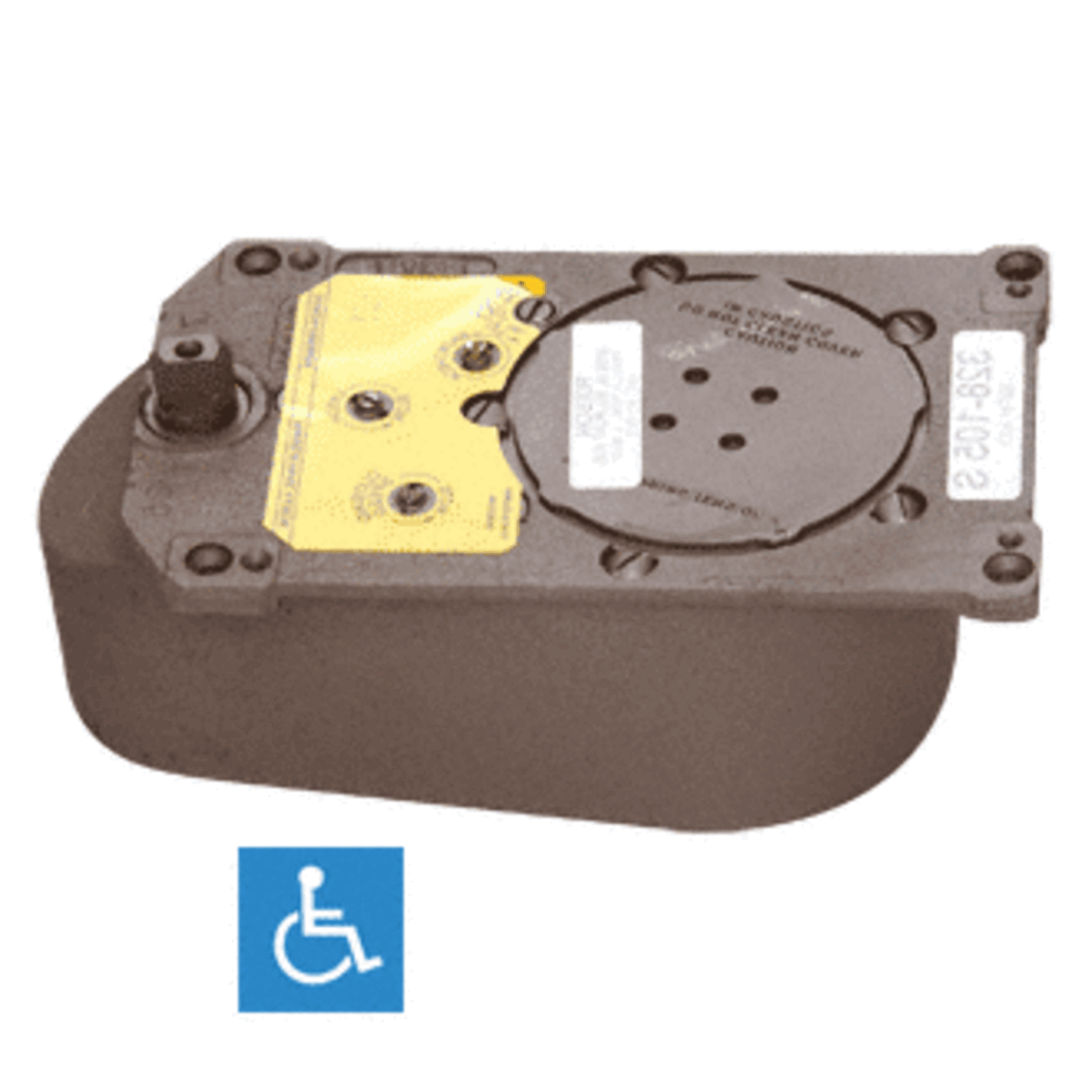

CRL PH32890SH0R85 Rixson PH328 8.5 Lb. Right Hand Floor-Mounted Closer Body for Patch FittingsC.R. Laurence Rixson PH32890SH0R85 Rixson PH328 Series 8.5 Lb. Center-Hung Right Hand 90 Degree Selective Hold Open Floor Mounted Closer Body Only for Patch Fittings is a robust solution designed to provide superior door control in both commercial and residential settings. With an opening force of just 8.5 lbs, this closer complies with ADA accessibility requirements, ensuring ease of use for all individuals. This model features a tapered spindle design specifically intended for use with patch fittings, making it an ideal choice for modern architectural applications. Supporting doors weighing up to 325 lbs and up to 42 inches wide, it offers remarkable strength and versatility. The closer also includes selectable hold-open functionality, allowing users to choose between hold-open or free-swing modes, enhancing convenience. Standard features such as an adjustable hydraulic backcheck, positive dead stop, and independent valves for closing, latching, and back check adjustments contribute to its reliability and performance. With ANSI certifications and a built-in positive dead stop, this closer ensures safety and durability. Opt for the Rixson PH328 for a dependable, stylish door closing solution that meets the demands of today's architectural designs. Optional accessories, including a floor closer cement case and closer cover, are available to enhance functionality further.
Rixson PH328 Series 8.5 Lb. Center-Hung Right Hand 90 Degree Selective Hold Open Floor Mounted Closer Body Only for Patch Fittings
- Physically Handicapped 8.5 lbs. Opening Force for Compliance with ADA Accessibility Requirements
- Tapered Spindle Design Intended for use with Patch Fittings
- Selective On or Off Hold-Open
This
Rixson® Model 328 Center-Hung Floor Mounted Door Closer provides the best mechanical means of controlling a door. This model is specifically designed to be used with the tapered spindle insert used for patch fittings. This closer is capable of supporting exterior or interior doors weighing up to 325 lbs. (147 kg) and 42" (1.07 m) Wide.
Standard features include selective on or off hold open, build-in positive dead stop, and separate independent valves for closing, latch and back check adjustments.
NOTE: Although A.D.A. Series Door Closers comply with A.D.A. specified opening forces, they might not provide adequate spring power to control and close the door due to varying site conditions and door size.
Optional accessories that may be needed are:
253000 Floor Closer Cement Case
284720RH Closer Cover
Additional finishes and accessories are available upon request for quotation.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable Hydraulic Backcheck: Yes
Americans with Disabilities Act: Yes
Body Height: 4-1/16 in. (103.2 mm)
Body Length: 11-1/8 in. (282.6 mm)
Body Widt: 5-7/8 in. (149.2 mm)
Body Width: 5-7/8 in. (149.2 mm)
Brand: Rixson
Built In Positive Dead Stop: Yes
Certification: ANSI 117.1,ANSI 156.4 Grade 1
Closer Body Only: Yes
Closer Type: Floor Closer
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96 in. (2438.4 mm)
Door Opening: 90 °
Handing: Right Hand
Independent Closing and Latching Valves: Yes
Interior Or Exterior Doors: Yes
Maximum Door Width - Exterior: 38 in. (965.2 mm)
Maximum Door Width - Interior: 38 in. (965.2 mm)
Maximum Weight Center Hung: 325 lbs. (147.4 kg)
Non Stocked Parts and Acessories Special Order: Yes
Patch Fitting Usage: Yes
Recommended Door Type: Patch Fittings
Selective Hold Open: Yes
Series: 328
Shipping Limitations: None
Similar: BTS75VBF90HO, BTS80BF, J993HOD, J994HOD
Spring Size: 8.5
Tapered Spindle Design: Yes
UL Listed: Yes
