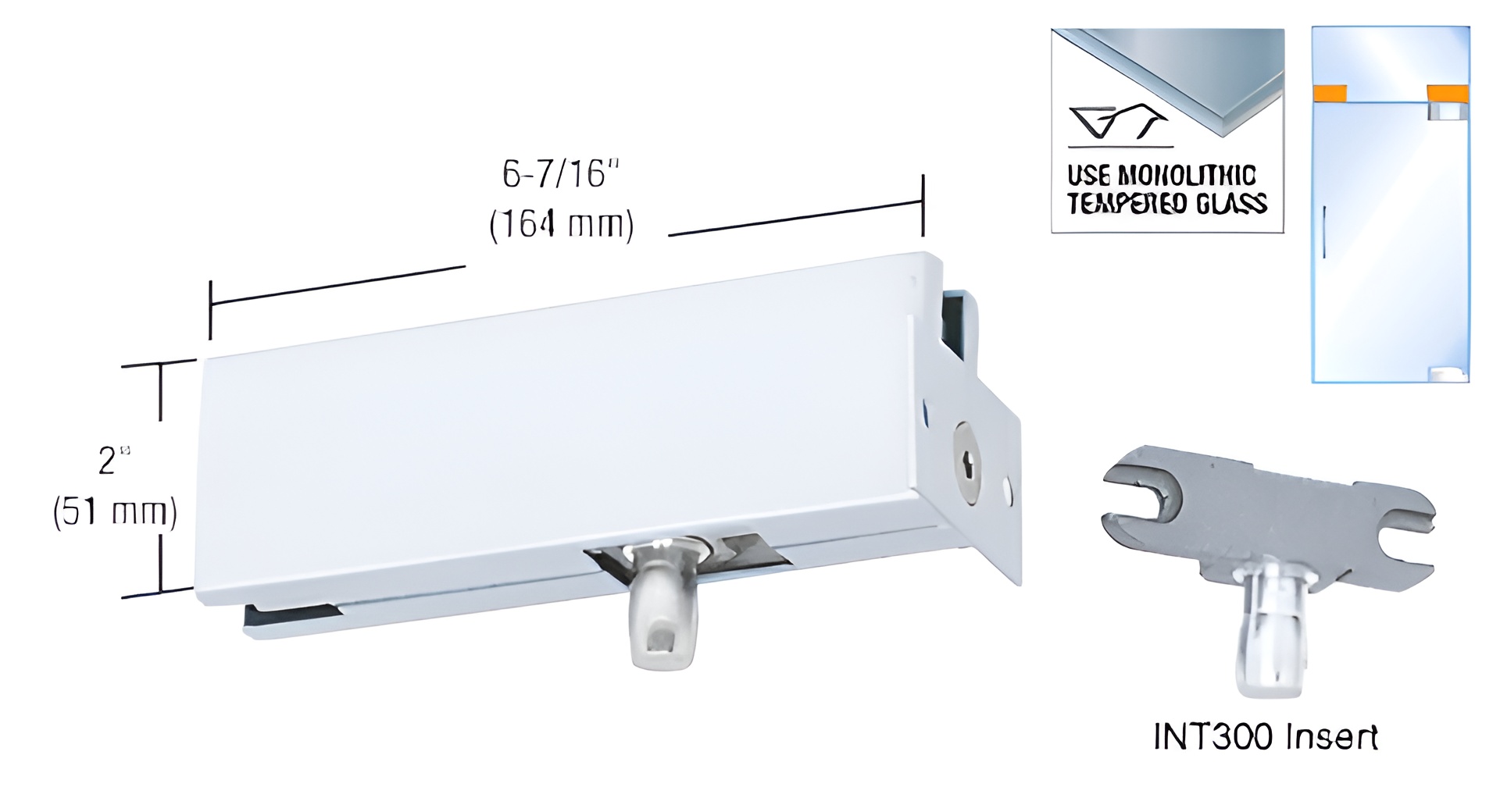

C.R. Laurence PH34A Satin Anodized Wall Mounted Transom Patch With 1NT300 Insert offers a robust solution for supporting transoms from side jambs. Compatible with both 2-3/4" and 2-9/16" pivot setback door patch fittings, this transom patch is designed for use with monolithic tempered glass, accommodating thicknesses of 3/8" or 1/2" (10 or 12 mm). The included 1NT300 insert allows for seamless mounting with CRL's PH20A or PH21A top door patch fittings, and it can be adjusted on the non-hinged side for double swing door configurations. For heavier transoms exceeding 100 lbs. (45.4 kg), ceiling support is recommended to prevent slippage. Additional inserts, such as the INT306 Transom Patch Door Stop Insert for one-way doors, and the INT305L Transom Patch Keeper Insert for locking applications, enhance versatility. The product comes complete with a template and instructions for easy installation, although glass fabrication is required, including a 3/4" (19 mm) diameter hole and corner notch. Please note that these fittings are not suitable for laminated glass. With its satin anodized finish, the PH34A delivers both durability and aesthetic appeal, making it a reliable choice for professional glazing applications.
Satin Anodized Wall Mounted Transom Patch With 1NT300 Insert
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Satin Anodized
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type: 1NT300
Mounting Type: Wall Mount
Shipping Limitations: None
With Insert: Yes
