CRL PHA2BS Brushed Stainless Patch Door Kit for Overhead Closer - No Lock Instructions
Images may not represent actual product and finish

CRL PHA2BS Brushed Stainless Patch Door Kit for Overhead Closer - No Lock Instructions

Your Price: $186.01
Retail Price:$222.68
Your Savings:$36.67(16%)
The CRL PHA2BS Brushed Stainless Patch Door Kit features adjustable fittings for monolithic tempered glass, available in five finishes.
Part Number : CRL_PHA2BS
Availability: 725 In Stock
CRL PHA2BS Brushed Stainless Patch Door Kit for Overhead Closer - No Lock Instructions

C.R. Laurence PHA2BS Brushed Stainless North American Patch Door Kit is designed to elevate the functionality and aesthetic of your glass doors. This comprehensive kit includes all necessary hardware for a single door installation, minus the overhead door closer and glass. Featuring an adjustable top fitting, the PH20C allows for precise alignment after the door is installed, ensuring a flawless finish. Crafted for use with monolithic tempered glass, this kit accommodates glazing thicknesses of 3/8 in. (10 mm) or 1/2 in. (12 mm), making it versatile for various applications. The kit includes a bottom patch fitting (PH10C), a bottom pivot (1NT403), and gaskets tailored to your glass specifications, providing a secure and robust installation. Available in five architectural finishes, including brushed stainless steel, the PHA2BS complements a range of design aesthetics. It serves as an ideal choice for A Style Glass Doors, with a pivot setback of 2-3/4 inches (70 mm). For added security, kits with locks come equipped with a patch lock (sold separately). When considering long-term maintenance, be mindful that while stainless steel is corrosion-resistant, it requires periodic care to maintain its appearance. Choose C.R. Laurence for a blend of durability and elegance in your architectural projects.

Brushed Stainless North American Patch Door Kit for Use with Overhead Door Closer - Without Lock

  • Adjustable Top Fitting
  • Five Architectural Finishes
  • Door Closer Not Included
  • Use Monolithic Tempered Glass

CRL PHA2 North American Patch Door Kits come with all the hardware to complete a single door (except the overhead closer and glass). Pivot setback is 2-3/4" (70 mm). The Top Patch Fitting (Cat. No. PH20C) is adjustable after the door is installed. Overhead door closer must be ordered separately.

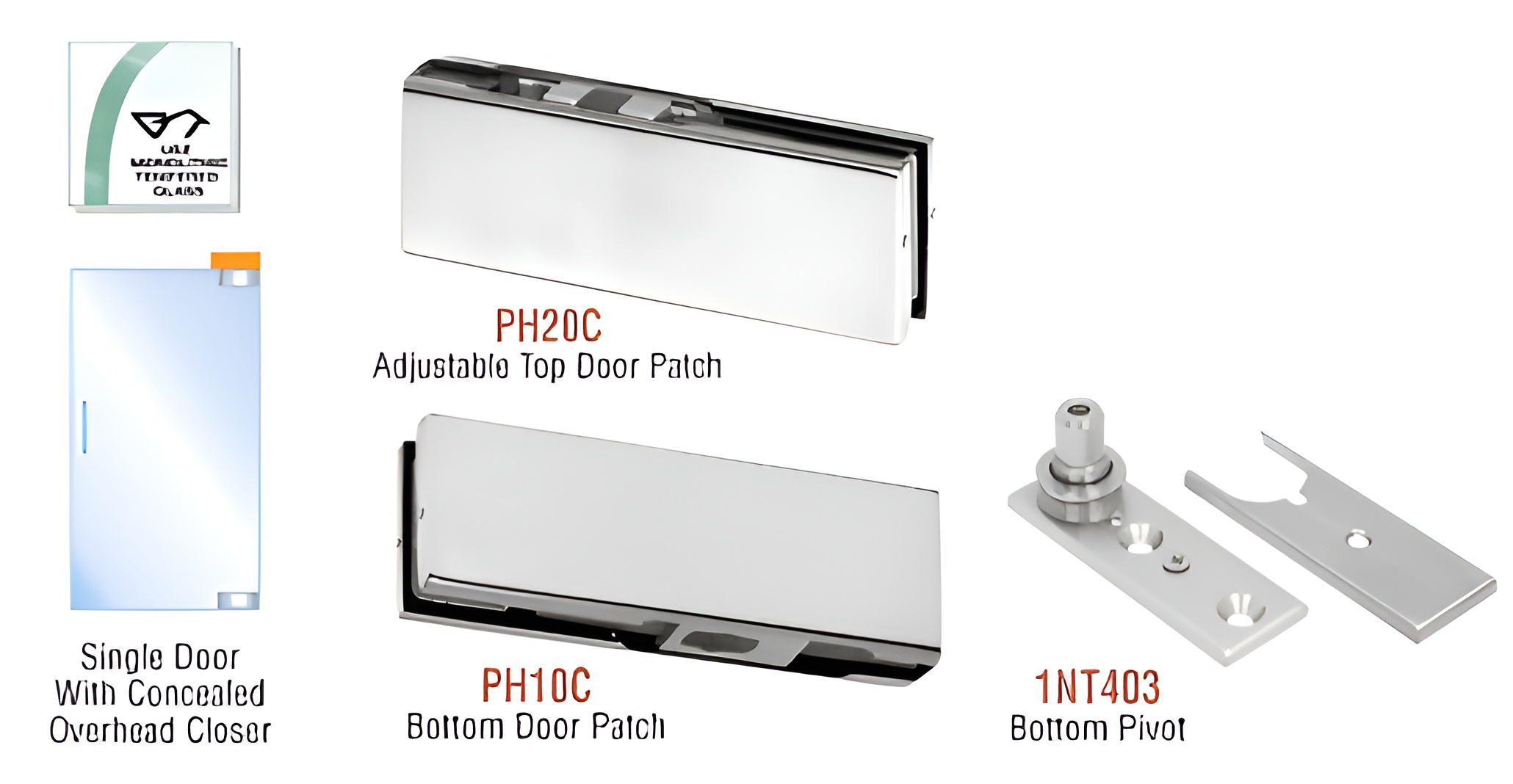

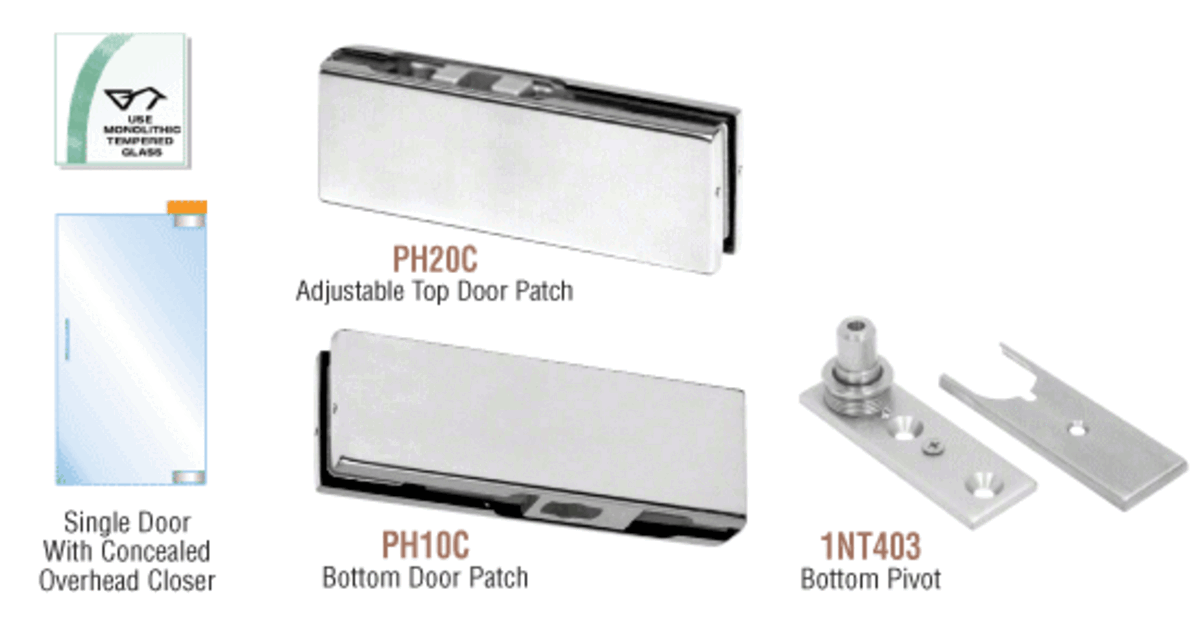

Kit Contains:
  • One - PH20C Adjustable Top Door Patch
  • One - PH10C Bottom Door Patch
  • One - 1NT403 Bottom Pivot
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) Tempered Glass (holes and notches are required in the glass).

    Kits with Lock also come with one each Cat. No. AMR205 patch lock. Cylinders, thumbturns, and keepers are ordered separately.

    NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

    Stainless Steel Advisory:
    Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

    • Attributes

    Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

    Configuration: Single

    Door Type: A Style Glass Door

    Finish/ Color:: Brushed Stainless Steel

    Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)

    Pivot Setback: 2-3/4

    Shipping Limitations: None
