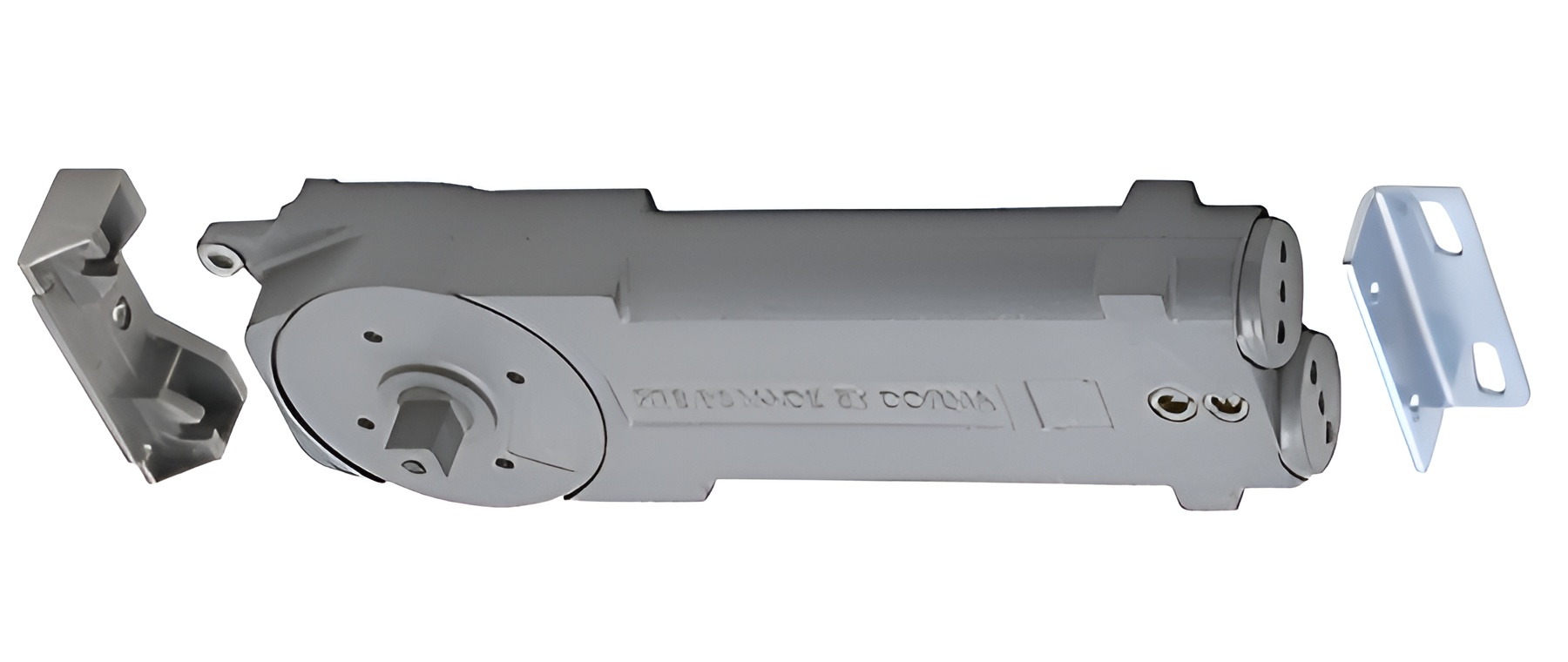

C.R. Laurence Dormakaba Overhead Concealed Closer 105 Degree Hold Open is expertly crafted for use with ADA barrier-free 5 lb. interior doors. This closer features dual action and non-critical valves, allowing for precise control over both closing and latching speeds independently. Designed to accommodate doors up to 36 inches wide and 96 inches high, it supports a maximum door weight of 250 lbs., making it a reliable choice for commercial and residential applications alike. Included with each closer are standard mounting clips, templates, and comprehensive instructions to ensure a straightforward installation process. The compact dimensions-1-1/2 inches in height, 12-1/2 inches in length, and 3-1/2 inches in width-allow for seamless integration into various door types, including aluminum and hollow metal. With a hold-open feature and a maximum opening angle of 105 degrees, the Dormakaba closer provides accessibility without compromising functionality. It's UL listed, ensuring adherence to safety standards. Please note that while this closer complies with ADA specified opening forces, site conditions may affect its spring power effectiveness. Enhance your space's accessibility and ease of use with the C.R. Laurence Dormakaba Overhead Concealed Closer.
Dormakaba Overhead Concealed Closer 105 Degree Hold Open - ADA Barrier-Free 5 Lb. Interior
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Americans with Disabilities Act: Yes
Body Height: 1-1/2
Body Length: 12-1/2
Body Widt: 3-1/2
Body Width: 3-1/2
Brand: Dormakaba®
Closer Type: Overhead Concealed
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96
Door Opening: 105
Handing: Double Acting
Hold Open: Yes
Maximum Door Weight: 250
Maximum Door Width - Exterior: 36 Inches
Maximum Door Width - Interior: 36 Inches
Recommended Door Type: Aluminum, Hollow Metal
Shipping Limitations: None
Spindle: 1/2
Spring Size: 5
UL Listed: Yes
