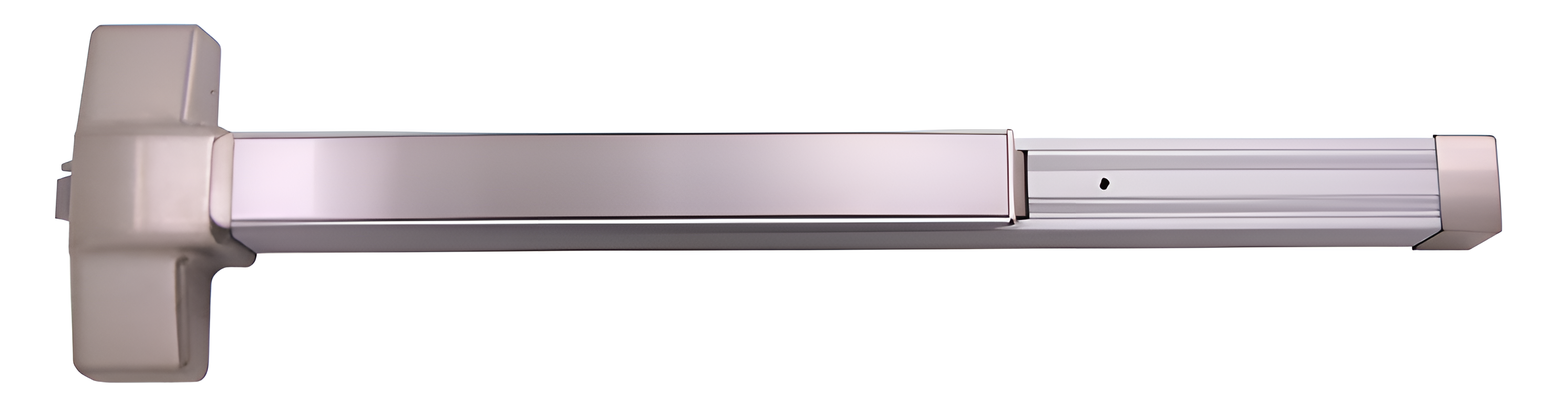

Design Hardware 1000R-33-32D Rim Exit Heavy Duty Non-Handed G1, 630/US32D Satin Stainless Steel

Design Hardware 1000R-33-32D Rim Exit Heavy Duty Non-Handed G1, 630/US32D Satin Stainless Steel is a robust and versatile solution for ensuring safety in high-traffic areas. Built to meet ANSI A156.3-grade 1 standards, this exit device is also compliant with the Americans with Disabilities Act, making it suitable for a wide range of applications. Designed for medium to heavy use, this exit device boasts a heavy-duty extruded anodized aluminum channel and steel chassis, ensuring durability and reliability. The non-handed design allows for easy installation, while the deadlocking latchbolt with a 5/8" projection enhances security. Its dimensions accommodate various door sizes, with the 33" device being adaptable for doors as narrow as 2’-8". Maintenance is simple, thanks to the straightforward design of the panic hardware. This model is UL Listed for panic exit hardware and has options for fire-rated applications. With features like a roller strike and optional cylinder dogging kits, it provides flexibility tailored to your needs. Available in a brushed satin stainless steel finish, the Design Hardware 1000R-33-32D is not only functional but also aesthetically pleasing, fitting seamlessly into any environment. Take advantage of the limited lifetime warranty, ensuring peace of mind with your investment.

Rim Exit Heavy Duty Non-Handed G1, 630/US32D Satin Stainless Steel

When push comes to shove, you want exit devices designed with flexibility and safety in mind. That’s why Design Hardware’s series meets ANSI A156.3-grade 1 standards and complies with the Americans with disabilities act. Plus, you can choose from standard, heavy-duty, and marine-grade options in different finishes, mounting styles, door widths, and trims. With Design Hardware exit devices, you’ll always get the kind of quality and variety that adds value to your project.

Features:

• Simplest and easiest to maintain panic hardware
• Designed for medium to heavy use
• Limited lifetime warranty

Specifications:

• UL Listings: UL Listed for panic exit hardware
• (Optional) Fire Rating: UL Listed for "A" label 3 hour fire doors (no dogging on rated devices)
• ADA: Meets ADA requirements ANSI A117.1 with lever trim
• Handing: Non handed - completely reversible
• Construction: Heavy duty extruded anodized aluminum channel & steel chassis
• Marine Grade: Marine grade 316 stainless steel option available
• Latchbolt: Deadlocking latchbolt with 5/8" projection
• Strike: Roller strike with 5/8" projection & 1/8" shim
• Dogging: 5/32" Hex key dogging standard on panic exit hardware only
• Cylinder Dogging: Cylinder dogging kits available for new or existing exit devices
• Device Lengths: 33" for 3’-0" wide doors and 42" for 3-8" to 4’-0" wide doors
• Min. Door Width: 33" device can be cut down to fit on 2’-8" wide door. 42" device can be cut down to fit on 3’-4" wide door
• Center Case Dim.: 8" Height x 2 7/8" wide x 2 13/16" thick - 4 1/2" minimum stile required
• Mechanism Case Dim.: 2 3/16" Height x 2 3/16" wide
• Projection: 3 3/8" Undogged • push bar neutral & 2 13/16" dogged • push bar depressed
• Fasteners: Wood, machine & self tapping machine screws (F1000R includes thru bolts)
• Trim & Accessories: ASA & latch fillers included, exterior trims, shim kits & other accessories available
• Alarmed Exits: Exit alarm kit ALK-1000 available for new or existing devices
• Electrification: ELR • Motorized electric latch retraction, ED • electric dogging, REX • request to exit, LBM - latch bolt monitoring available.

Finishes:

• US3/605 - Bright polished brass
• US4/606 - Brushed satin brass
• US10B/613 - Oil rubbed bronze
• US26/625 - Bright polished chrome
• US32D/630 - Brushed satin stainless steel
