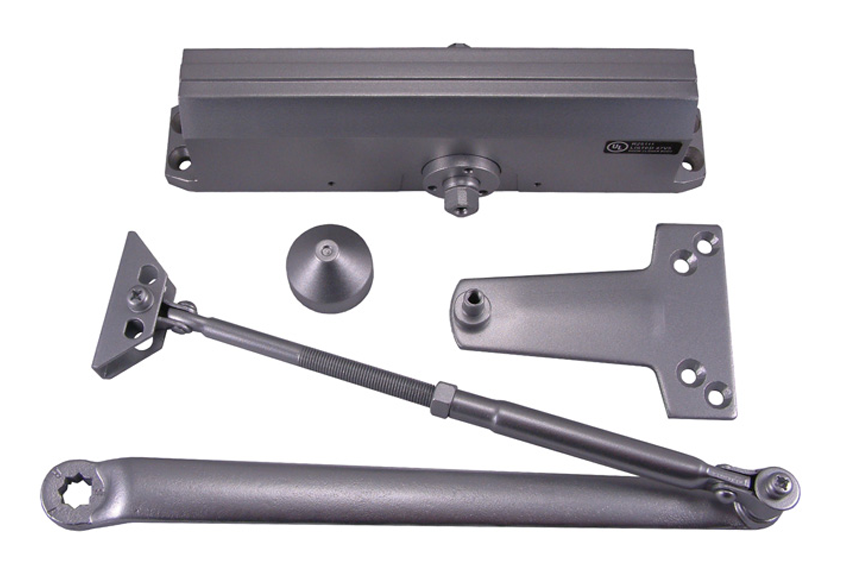

Design Hardware 116-AL Door Closer Adjustable Spring Heavy Duty, 689/US28 Aluminum Powder Coat

Design Hardware 116-AL Door Closer Adjustable Spring Heavy Duty, 689/US28 Aluminum Powder Coat offers a robust solution for commercial door control, designed for medium to heavy use. This grade 1 heavy-duty closer features adjustable spring power, ranging from size 1 to 6, allowing you to customize the closing force to fit your specific needs. The independent latch and sweep speed controls ensure smooth operation, enhancing safety and energy efficiency. Constructed with a heavy-duty cast aluminum body and rack & pinion mechanism, this door closer meets ANSI A156.4 grade 1 standards and is UL listed for "A" label 3-hour fire doors. Its ADA compliance ensures accessibility, making it a reliable choice for a variety of settings. The design is non-handed, providing complete reversibility for easy installation. Additional features include a slim profile with a 2 1/4" projection when the cover is installed, and it comes with all necessary fasteners for regular, top jamb, and parallel arm installations. The product includes a limited lifetime warranty, giving you peace of mind with your investment. Available in an aluminum powder coat finish, the Design Hardware 116-AL promises durability and aesthetics that blend seamlessly into any environment.

Door Closer Adjustable Spring Heavy Duty, 689/US28 Aluminum Powder Coat

Our proven line of commercial door closers built for grade 1 heavy-duty action feature varying speed controls and adjustable opening spring power. With multiple finishes to choose from, a patent-pending series that can replace 33 of the most popular closers on the market, and all models meeting ADA ANSI A117.1 compliance, Design Hardware door closers arm customers with flexibility and safety that can’t be beaten.

Features:

• Adjustable spring power and speed controls
• Designed for medium to heavy use
• Improves fire safety and energy savings
• Handing non-handed – completely reversible

Specifications:

• Spindle with needle bearings
• ANSI: Meets ANSI A156.4 grade 1 standards
• UL Listings: For "A" label 3 hour fire doors, UL10C positive pressure rated
• ADA Compliance: Meets ADA requirements ANSI A117.1
• Closer Body: Heavy duty cast aluminum closer body, rack & pinion construction
• Piston, Spindle, Spring: Heat treated heavy duty steel piston, spindle & spring
• Spring Sizing: Adjustable spring power from size 1 to 6 - factory set at size 3
• Speed Controls: Independent latch & sweep speed controls
• Back Check: Back check intensity control standard
• Valves: Staked valves to prevent backing valves out too far
• Included Parts: Plastic pinion cap & PA bracket included
• Cover: Molded plastic cover available separately
• CTC Hole Pattern: 9 1/16" CTC horizontally x 3/4" CTC vertically
• Projection: Slim 2 1/4" projection with cover installed over mtg. plate
• Minimum Top Rail: Regular: 3 1/8" - Top Jamb: 1 7/8 " - Parallel Arm: 5 3/4"
• Fasteners: Machine screws & thru bolts, wood screws & self tapping machine screws included
• Mounting Styles: Includes all screws and brackets for regular, top jamb and parallel arm Installations
• Accessories: Hold open arms, heavy duty arms, drop plates, extended arms & more ...
• Warranty: Limited lifetime warranty

Finishes:

• AL/689 - Aluminum painted
• BZ/690 - Dark bronze painted
