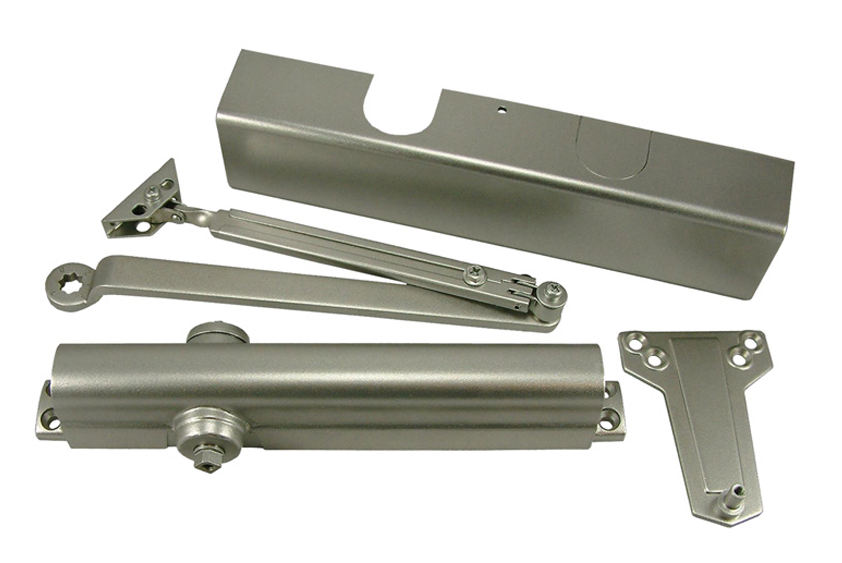

Design Hardware 316-AL Door Closer Heavy Duty, 689/US28 Aluminum Powder Coat

Design Hardware 316-AL Door Closer Heavy Duty, 689/US28 Aluminum Powder Coat delivers exceptional performance for commercial applications. Engineered to meet ANSI A156.4 grade 1 standards, this door closer is designed for medium to heavy use, ensuring durability and reliability in high-traffic areas. Its robust cast aluminum body features a rack and pinion construction, providing smooth operation and enhanced longevity. Adjustable spring power, ranging from size 1 to 6 and factory set at size 3, allows for tailored performance to suit your specific door requirements. The independent latch and sweep speed controls offer further customization, enabling precise closing speeds. The non-handed design allows for easy installation on either side of the door, enhancing flexibility for various setups. This door closer meets ADA requirements under ANSI A117.1, promoting accessibility and safety. It also improves fire safety and energy efficiency, making it a smart choice for modern buildings. With five attractive finishes, including aluminum painted and polished chrome, the Design Hardware 316-AL complements any architectural style. Included with the product are essential fasteners for multiple mounting styles and a limited lifetime warranty, ensuring peace of mind with your investment. Choose the Design Hardware 316-AL Door Closer for a blend of functionality, safety, and aesthetic appeal.

Door Closer Heavy Duty, 689/US28 Aluminum Powder Coat

Our proven line of commercial door closers built for grade 1 heavy-duty action feature varying speed controls and adjustable opening spring power. With multiple finishes to choose from, a patent-pending series that can replace 33 of the most popular closers on the market, and all models meeting ADA ANSI A117.1 compliance, Design Hardware door closers arm customers with flexibility and safety that can’t be beaten.

Features:

• Five finish options to meet any door design
• Adjustable spring power and speed controls
• Designed for medium to heavy use
• Improves fire safety and energy savings
• Non-Handed – completely reversible

Specifications:

• Spindle with needle bearings
• ANSI: Meets ANSI A156.4 grade 1 standards
• UL Listings: For "A" label 3 hour fire doors, UL10C positive pressure rated
• ADA Compliance: Meets ADA requirements ANSI A117.1
• Closer Body: Heavy duty cast aluminum closer body, rack & pinion construction
• Piston, Spindle, Spring: Heat treated heavy duty steel piston, spindle & spring
• Spring Sizing: Adjustable spring power from size 1 to 6 - factory set at size 3
• Speed Controls: Independent latch & sweep speed controls
• Back Check: Back check intensity control standard
• Valves: Staked valves to prevent backing valves out too far
• Cover: Molded Plastic Cover included - metal cover included with US3 & US26 finish
• Projection: Slim 2 1/8" projection with cover installed
• CTC Hole Pattern: 12" CTC Horizontally x 3/4" CTC vertically
• Projection: Slim 2 1/4" projection with cover installed over mtg. plate
• Minimum Top Rail: Regular: 3 1/2" - Top Jamb: 2 1/4" - Parallel Arm: 5 1/4"
• Fasteners: Thru bolts with machine screws, wood screws & self tapping machine screws included
• Mounting Styles: Includes all screws and brackets for regular, top jamb and parallel arm installations
• Accessories: Hold open arms, heavy duty arms, drop plates, extended arms & more ...
• Warranty: Limited lifetime warranty

Finishes:

• AL/689 - Aluminum painted
• BZ/690 - Dark bronze painted
• GLD/696 - Gold painted
• US3/632 - Bright polished brass
• US26/651 - Bright polished chrome
