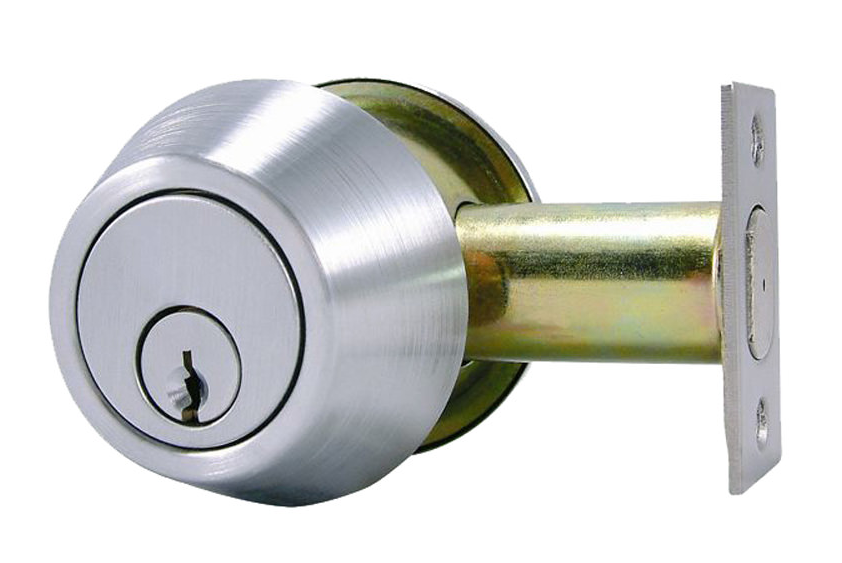

Design Hardware D2-S-26D D2 Series Single Cylinder Deadbolt G2, 626 Satin Chrome with Thumbturn

Design Hardware D2-S-26D D2 Series Single Cylinder Deadbolt with Inside Thumbturn G2, 626/US26D Satin Chrome delivers a blend of security and convenience ideal for a variety of commercial applications. This robust deadbolt meets and exceeds ANSI A156.2 grade 2 standards and is UL listed for "A" label 3-hour fire doors, ensuring peace of mind in high-stakes environments. Crafted from corrosion-resistant steel and featuring a free-spinning cylinder collar, this lock resists wrenching and prying, making it a reliable choice for both durability and security. The non-handed design allows for easy installation on any door, while the 2" ADA-compliant thumbturn meets accessibility codes, catering to all users. The D2-S-26D is equipped with a grade 1 solid brass latchbolt that features a 1" throw and an anti-saw hardened steel pin insert for added protection. With a fixed 2 3/4" backset and compatibility with various latch face options, this deadbolt adapts effortlessly to your needs. Available in a sleek satin chrome finish, the D2-S-26D combines aesthetics with function. Backed by a limited lifetime warranty, this deadbolt is a smart investment for securing your property effectively.

D2 Series Single Cylinder Deadbolt with Inside Thumbturn G2, 626/US26D Satin Chrome

When it comes to Design Hardware’s commercial locksets, we give you the flexibility, functionality, and durability you desire. Offering multiple finishes, lever options, and trim selections, our goal is to provide the customer with a wide variety of easily accessible Commercial Locksets for broad range applications.

Specifications:

• ANSI: Meets & exceeds ANSI - A 156.2, grade 2 standards
• UL Listings: UL Listed for "A" label 3 hour fire doors
• ADA Compliance: 2" ADA Thumbturn meets ADA & ANSI A117. 1 accessibility codes
• Lock Chassis: Steel, zinc dichromated for corrosion resistance
• Trim: Free spinning cylinder collar resists wrenching and prying
• Handing: Non-handed - completely reversible
• Backset & Latch face: 2 3/4" fixed backset std. with 1 1/8" [ 2 1/4" latch face, 2 3/8" backset available with 1" x 2 1/4" latch face both with self adjusting front for square or beveled doors
• Latchbolt: Grade 1 solid brass with 1" throw & anti-saw hardened steel pin insert
• Cylinder Options: 6 Pin brass, C Kwy, with 2 Keys std, prepared for small format IC core (less core)
• Strike: 1 1/8" x 2 3/4" Square corner
• Door Preparation: ANSI A115.2 - 2 1/8" crossbore
• Door Thickness: 1 3/4" thick doors
• Fasteners: Combination screws for wood or metal doors & frames
• Warranty: Limited lifetime warranty

Functions:

• D2-S/D2-S-IC: Single Cylinder.
• ANSI No. E21522
• Deadbolt thrown or retracted by key from outside or by inside thumbturn. Bolt automatically deadlocks when thrown.
• D2-D/D2-D-IC: Double Cylinder
• ANSI No. E21412
• Deadbolt thrown or retracted by key from either side. Bolt automatically deadlocks when fully thrown.
• D2-BP-T: Single Cylinder x Blank Plate
• ANSI No. E01112
• Deadbolt thrown or retracted by thumbturn only. Outside blank plate. Bolt automatically deadlocks when fully thrown.
• D2-S-BP/D2-S-IC-BP: Single Cylinder x Blank Plate
• ANSI No. E01622
• Deadbolt thrown or retracted by key only. Blank plate inside. Bolt automatically deadlocks when fully thrown.
• D2-IND: Indicator x thumbturn
• Deadbolt thrown or retracted by thumbturn only. Outside indicator "in use/vacant". Bolt automatically deadlocks when fully thrown.

Options:

• Latch Options:
• 2 3/4" backset with 1 1/8" x 2 1/4" latch face
• 2 3/8" backset with 1" x 2 1/4" latch face
• Cylinder Options:
• 6 Pin brass, C Kwy, with 2 keys standard
• Prepared for small format IC core (less core)

Finishes:

• US3/605 - Bright/polished brass lifetime finish
• US4/606 - Brushed/satin brass
• US10B/613 - Oil rubbed bronze
• US15/619 - Brushed/satin nickel
• US26/625 - Bright polished chrome lifetime finish
• US26D/626 - Brushed/satin chrome

Features

• Trim: Free spinning cylinder collar resists wrenching and prying
• Handing: Non-handed - completely reversible
• Backset & Latch face: 2 3/4" fixed backset std. with 1 1/8" [ 2 1/4" latch face, 2 3/8" backset available with 1" x 2 1/4" latch face both with self adjusting front for square or beveled doors
• Warranty: Limited lifetime warranty
• Door Thickness: 1 3/4" thick doors
• Latchbolt: Grade 1 solid brass with 1" throw & anti-saw hardened steel pin insert
• ADA Compliance: 2" ADA Thumbturn meets ADA & ANSI A117. 1 accessibility codes
• Cylinder Options: 6 Pin brass, C Kwy, with 2 Keys std, prepared for small format IC core (less core)
• Lock Chassis: Steel, zinc dichromated for corrosion resistance
• Strike: 1 1/8" x 2 3/4" Square corner
• ANSI: Meets & exceeds ANSI - A 156.2, grade 2 standards
• UL Listings: UL Listed for "A" label 3 hour fire doors
• Fasteners: Combination screws for wood or metal doors & frames
• Door Preparation: ANSI A115.2 - 2 1/8" crossbore
