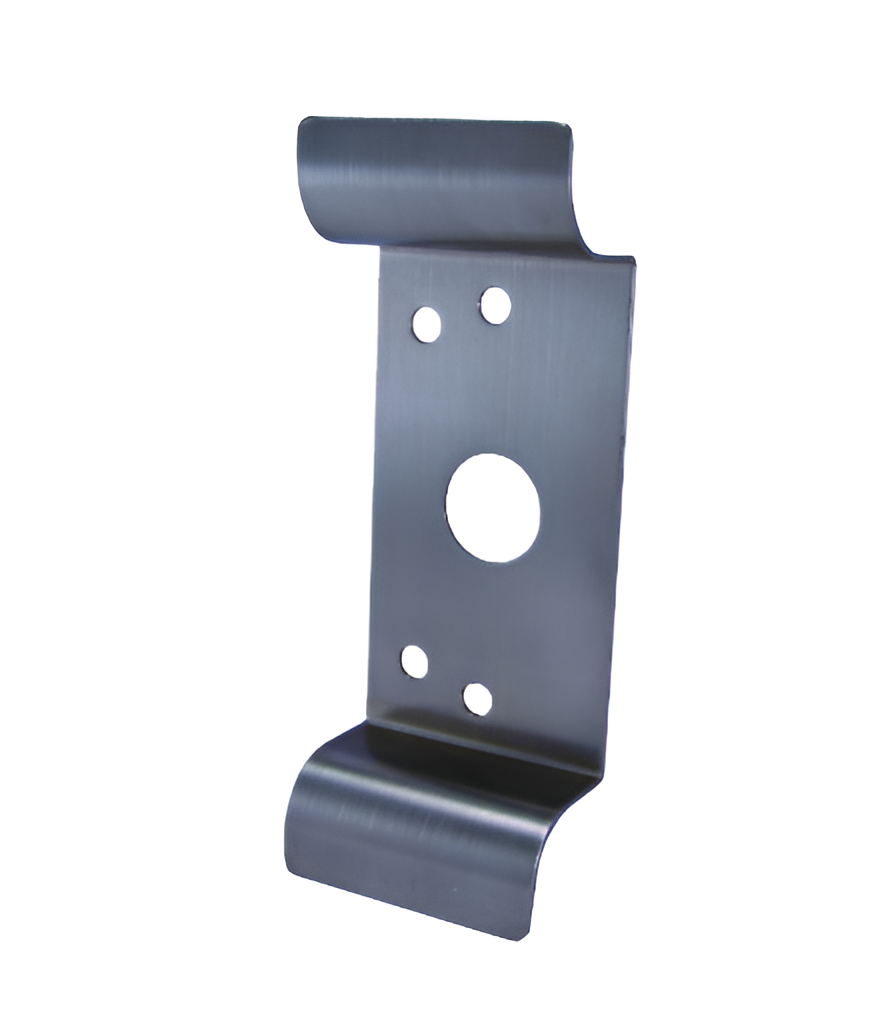

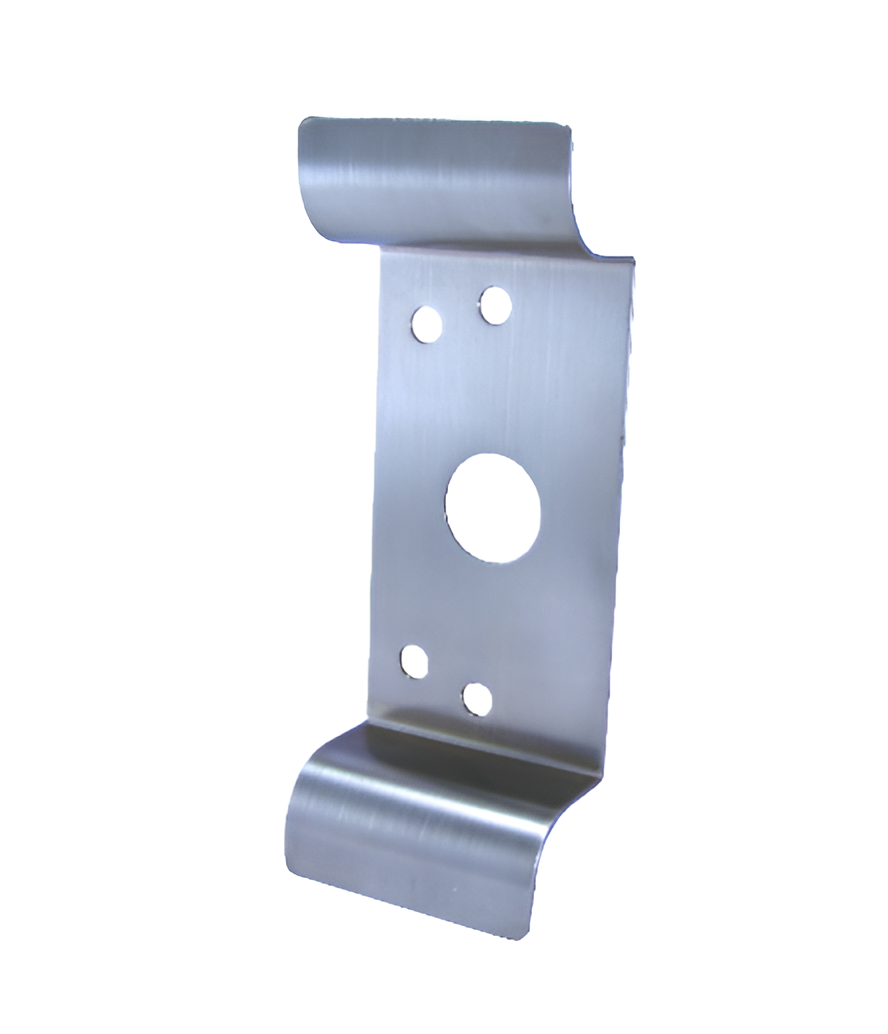

Design Hardware DFP-03NL AL Double Finger Pull Trim, NL Nightlatch, Rim Cylinder, AL Powder Coat

Design Hardware DFP-03NL AL Double Finger Pull Trim combines functionality and durability in a sleek package. Crafted from stainless steel, this pull trim is designed to withstand daily use while providing an economical solution for 1000R and 2000R applications. Measuring 3 inches wide, 8 inches high, and featuring a 1/16-inch thickness with a 1 11/16-inch projection, it seamlessly integrates into various door styles. The DFP-03NL is non-handed, making it versatile for any installation. It is specifically designed to cover 161 door prep and includes a cylinder sleeve for easy installation. Notably, it functions as a nightlatch (03-NL), allowing for key retraction of the latch, ensuring security without compromising accessibility. Installation is straightforward with the included four thru bolts and 1/4"-20 machine screws. A rim cylinder is required for the nightlatch function, offering flexibility with options for 6 or 7 pin small format IC cores (not included). Available in an array of finishes-such as aluminum anodized, dark bronze anodized, and polished brass-the DFP-03NL enhances both aesthetics and security. Backed by a limited lifetime warranty, this trim is a reliable and stylish choice for your locking needs.

Double Finger Pull Trim, NL Nightlatch Function, Rim Cylinder Required, AL Aluminum Powder Coat

Specifications:

• Construction: Stainless steel construction
• Pull Plate: 3" Wide x 8" Height x 1/16" thick x 1 11/16" projection
• Application: Economical pull trim option for 1000R & 2000R. Will cover 161 door prep (not recommended for SVR devices as rods can be hard to lift with rim cylinder tailpiece)
• Mounting: Thru bolted design thru bolts to head of exit device
• Handing: Non-handed
• Door Thickness: 1 3/4"
• Functions: 02DT Dummy, 03-NL nightlatch (key retracts latch)
• Accessories: 03-NL includes cylinder sleeve for installation into 161 door prep
• Fasteners: Includes (4) thru bolts and 1/4"-20 machine screws for installation
• Cylinders: Rim cylinder required for 03NL (not included). Rim cylinder housing for 6 or 7 pin small format IC core (less core) also available
• Warranty: Limited lifetime warranty

Finishes:

• AL - Aluminum anodized
• BZ - Dark bronze anodized
• US3/605 - Bright/polished brass
• US4/606 - Brushed/satin brass
• US10B/613 - Oil rubbed bronze
• US26/625 - Bright/polished chrome
• US32D/630 - Brushed/satin stainless steel

Features

• Construction: Stainless steel construction
• Application: Economical pull trim option for 1000R & 2000R. Will cover 161 door prep (not recommended for SVR devices as rods can be hard to lift with rim cylinder tailpiece)
• Cylinders: Rim cylinder required for 03NL (not included). Rim cylinder housing for 6 or 7 pin small format IC core (less core) also available
• Functions: 02DT Dummy, 03-NL nightlatch (key retracts latch)
• Accessories: 03-NL includes cylinder sleeve for installation into 161 door prep
• Door Thickness: 1 3/4"
• Fasteners: Includes (4) thru bolts and 1/4"-20 machine screws for installation
• Handing: Non-handed
• Warranty: Limited lifetime warranty
• Pull Plate: 3" Wide x 8" Height x 1/16" thick x 1 11/16" projection
• Mounting: Thru bolted design thru bolts to head of exit device
