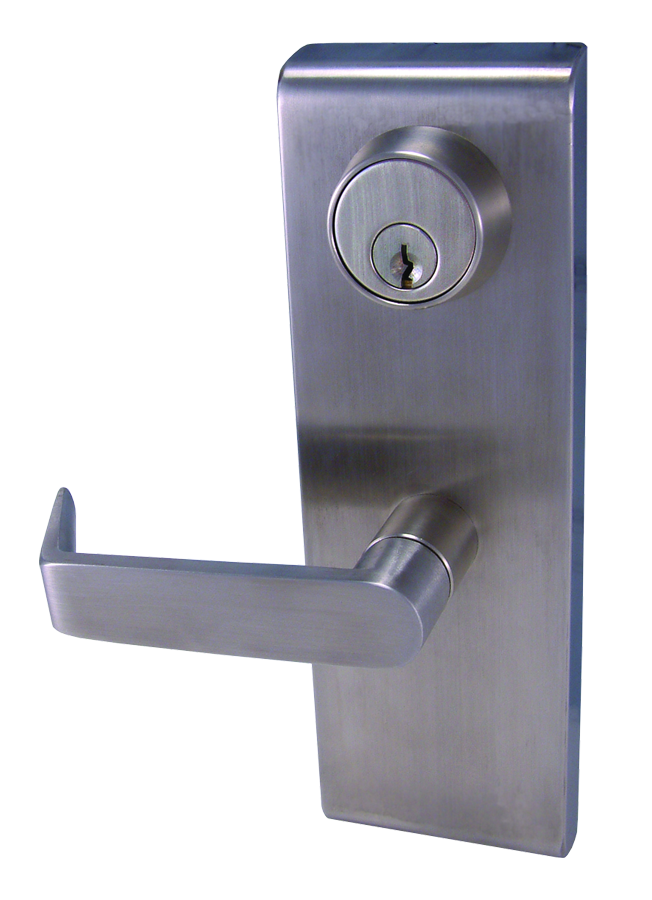

Design Hardware E-LE-08 24V FS 32D Electric Exit Trim is engineered for heavy-duty performance in stairwell conditions and other environments where electric pullback of the exit device’s latch bolt is unnecessary. This versatile trim is particularly advantageous in applications adhering to fire and life safety codes that demand a fail-safe condition, eliminating the need for costly electrified latch pullback devices. With a low current draw, it operates efficiently without requiring an expensive power supply. Constructed from a robust steel chassis with a satin stainless steel exterior, this exit trim meets ANSI A156.3, Grade 1 standards, ensuring durability and reliability. The non-handed design offers flexibility during installation, accommodating standard 1 3/4" thick doors, with options available for 2" thick doors. Featuring a solid 5" stainless steel lever and a 3" wide by 9" tall escutcheon, it provides a sleek and professional appearance while covering 161 door preparations. The E-LE-08 is compatible with all 1000 and 2000 series exit devices and comes with a standard 1 1/8" mortise cylinder. Its electrified options allow for field-selectable fail-safe or fail-secure configurations, making it an ideal choice for various commercial applications. Enjoy peace of mind with a limited lifetime warranty, ensuring long-lasting security and performance.
Electric Exit Trim, FS/FSE 12/24VDC Field Selectable, Lever x Escutcheon, Entry/Night Latch Field Convertible, Includes Mortise Cylinder, 630/US32D Satin Stainless Steel
Our LE exit device trims for the 1000 series are perfect for stairwell conditions or applications where electric pullback of the exit device’s latch bolt is cost prohibitive or not required. This is especially practical in applications where fire/life safety codes require a "fail safe" condition which is not an option with electrified latch pullback devices. Because the current draw is quite low there is no need for a more expensive power supply to provide the surge current
Specifications:
Options:
Finishes:
Features
Alternate Codes: E-LE-08 24V FS 32D, ELE0824VFS32D
Category: Panic Devices & Exit Alarms, Panic Device Trims
