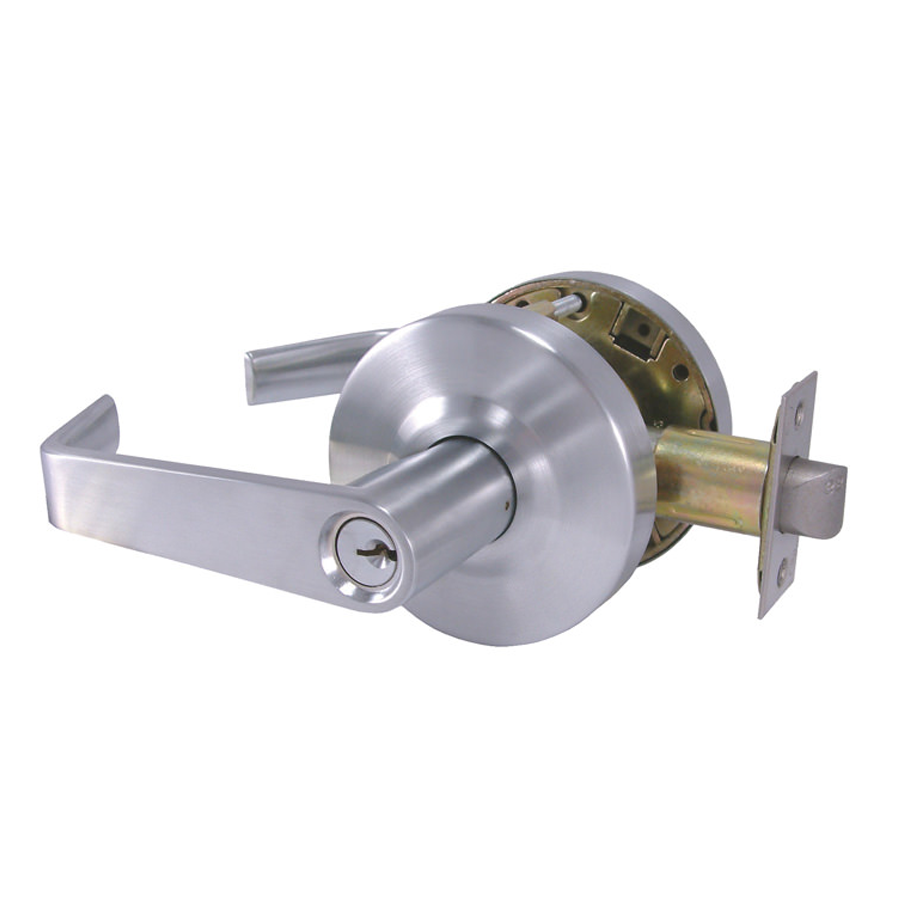

Design Hardware J-82-F-26D J Series Cylindrical Lock with Flat Non-Handed Lever, Satin Chrome

Design Hardware J-82-F-26D J Series Entry/Office Cylindrical Lock with Flat Non-Handed Lever in Satin Chrome offers a perfect blend of durability and functionality tailored for medium to high traffic environments. This lockset is designed for quick and easy installation, making it an excellent choice for commercial applications. Meeting ANSI A156.2, grade 2 standards and UL Listed for "A" label 3-hour fire doors, the J-82-F-26D ensures reliability and safety. Its non-handed design allows for versatile installation, while the steel lock chassis, finished with zinc dichromate, provides corrosion resistance for longevity. The flat solid zinc diecast lever and wrought brass roses enhance both aesthetic appeal and usability. This lockset is also ADA compliant, addressing accessibility needs, and features an anti-sag mechanism for consistent lever performance. With a standard 2 3/4" backset and self-adjusting front for square or beveled edge doors, it accommodates various door thicknesses from 1 3/8" to 2". The stainless steel latchbolt, deadlocking on keyed functions, offers added security. Available in multiple finishes, including the brushed satin chrome (US26D), the Design Hardware J-82-F-26D is backed by a limited lifetime warranty, making it a dependable choice for any commercial space.

J Series Entry/Office Cylindrical Lock with Flat Non-Handed Lever, 626/US26D Satin Chrome

When it comes to Design Hardware’s commercial locksets, we give you the flexibility, functionality, and durability you desire. Offering multiple finishes, lever options, and trim selections, our goal is to provide the customer with a wide variety of easily accessible commercial locksets for broad range applications.

Features:

• Best for medium to high traffic
• Designed for fast and easy installation

Specifications:

• ANSI: Meets ANSI - A156.2, grade 2 standards
• UL Listings: UL Listed for "A" label 3 hour fire doors
• ADA Compliance: Meets ADA and ANSI A117.1 accessibility codes
• Lock Chassis: Steel, zinc dichromated for corrosion resistance
• Trim: 5" Solid zinc diecast levers, 3 3/8" wrought brass roses
• Lever Return: Anti-sag mechanism with independent lever return springs to prevent lever sag
• Handing: Non-handed - completely reversible (S-A & S-B lever styles are handed)
• Backset & Latch face: 2 3/4" backset standard with 1 1/8" x 2 1/4" latch face, 2 3/8" backset is available with 1" x 2 1/4" latch face both with self adjusting front for square or beveled edge doors
• Latchbolt: Stainless steel with 1/2" projection, deadlocking on keyed functions & exit latch
• Cylinder Options: 6 Pin brass, C Kwy, with 2 keys or prepared for small format IC core (less core)
• Strikes: 4 7/8" x 1 1/4" ASA standard - T-strike & full lip strikes available
• Door Preparation: ANSI A115.2 - 2 1/8" crossbore with (2) 3/8" thru bolt holes
• Optional Thru Bolts: Removable thru bolts - can be installed without thru bolts
• Door Thickness: Factory set for 1 3/4" - can be adjusted to fit 1 3/8" up to 2" thick
• Standard Lever Design: Flat (standard - stocked in US26D and US10B)
• Other Lever Choices: Curved, half curved, S-A & S-B
• Fasteners: Combination screws for wood or metal doors & frames
• Warranty: Limited lifetime warranty

Functions:

• J-61: Connecting Room/ Exit Latch
• ANSI No. F61
• Deadlocking latchbolt operated by lever from inside only. Blank plate outside.
• J-75: Passage
• ANSI No. F75
• Latchbolt operated by lever from either side at all times
• J-76: Privacy
• ANSI No. F76
• Latchbolt operated by lever from either side. Outside lever is locked by push button inside and unlocked by emergency release outside, rotating inside lever or closing door.
• J-82/J-82IC: Entry/Office
• ANSI No. F82
• Turn/ Push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Pushing button locks outside lever until unlocked with key or Inside lever is turned. Deadlocking latchbolt operated by Inside lever at all times.
• J-84/J-84IC: Classroom
• ANSI No. F84
• Deadlocking latchbolt operated by lever from either side except when outside lever is locked from outside with key. When outside lever is locked, Latchbolt is operated by key in outside lever or by rotating inside lever.
• J-86/J-86IC: Storeroom
• ANSI No. F86
• Deadlocking latchbolt operated by key in outside lever or rotating inside lever. Outside lever is always locked.
• J-87/J-87IC: Institutional
• ANSI No. F87
• Deadlocking latchbolt operated by key from either side. Both levers are always locked.
• J-90/J-90IC: Dormitory/Corridor
• ANSI No. F90
• Deadlocking latchbolt operated by lever from either side except when outside lever is locked by key in outside lever or by push button inside. Key in outside lever locks or unlocks outside lever. Unlocked by rotating inside lever, closing door or key in outside lever. Deadlocking latchbolt operated by inside lever at all times.
• J-SD: Single Dummy(surface mounted)
• Single dummy trim for one side of door. Lever rigid

Options:

• Latch Options:
• 2 3/4" backset with 1 1/8" x 2 1/4" latch face – stainless steel latch w/ 1/2" projection
• 2 3/8" backset with 1" x 2 1/4" latch face – stainless steel latch w/ 1/2" projection
• Cylinder Options:
• 6 Pin brass, C Kwy, with 2 Keys standard
• Prepared for small format IC core (less core)

Finishes:

• US3/605 - Bright/polished brass lifetime finish (PVD)
• US4/606 - Brushed/satin brass
• US10B/613 - Oil rubbed bronze
• US15/619 - Brushed/satin nickel
• US26/625 - Bright polished chrome lifetime finish (PVD)
• US26D/626 - Brushed/satin chrome
