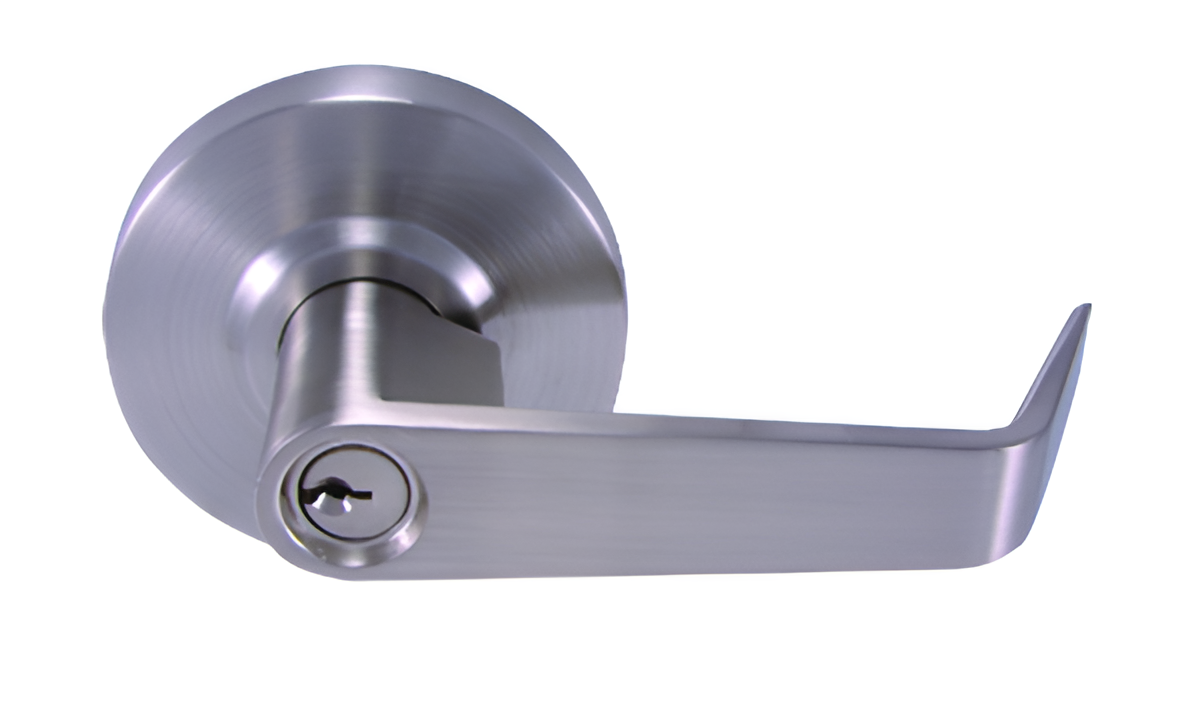

Design Hardware KIL FLAT ENTRY 26D Key in Lever Trim w/ Clutch, Entry Function, 2000/1000 Series, Satin Chrome

Design Hardware KIL FLAT ENTRY 26D Key in Lever Trim w/ Clutch (Flat Lever) combines style and functionality for robust security applications. Designed for the 1000 and 2000 Series, this entry function lever trim is ideal for standard duty use. Its through-bolted design ensures durability, while the non-handed feature allows for easy installation and versatility in any door configuration. Constructed from a zinc die-chromated chassis, this lever trim meets ANSI A156.3 grade 1 standards, ensuring high performance and reliability. It also complies with ADA requirements, making it accessible for all users. The lever is crafted from solid zinc diecast, featuring a 5-inch length and 2 7/8-inch projection for comfortable use. This trim installs easily in a 2 1/8" 161 door prep and accommodates a standard door thickness of 1 3/4", with options available for 2" thick doors. The actuator is made from cross-shaped stainless steel for added strength, and the decorative 3 3/8" wrought brass roses enhance its aesthetic appeal. Available in a variety of finishes, including the elegant US26D satin chrome, this product is backed by a limited lifetime warranty. Enhance your security solutions with the reliability and sophistication of the Design Hardware KIL FLAT ENTRY 26D.

Key in Lever Trim w/ Clutch (Flat Lever), Entry Function, for 2000 and 1000 Series, 626/US26D Satin Chrome

Features:

• Through bolted design
• Non-Handed
• Zinc die-chromated chassis

Specifications:

• ANSI: ANSI A156.3, grade 1
• ADA: Meets ADA requirements ANSI A117.1
• Construction: Steel, zinc dichromated chassis with secure thru bolted design
• Application: Standard duty lever trim option for 1000R & 2000R (not recommended for SVR devices, heavy duty LE trim recommended)
• Door Prep: Installs in 2 1/8" 161 door prep
• Actuator: Cross shaped stainless steel
• Lever: 5" Solid zinc diecast lever - 2 7/8" total projection
• Lever Designs: Flat (standard, shown above) curved, half curved, S-A & S-B
• Rose: 3 3/8" wrought brass roses
• Handing: Non-handed completely reversible
• Door Thickness: 1 3/4" standard - available for 2" thick doors, specify when ordering
• Functions: Passage, storeroom & entry
• Cylinders Options: 6 Pin brass, C Kwy, with 2 keys std., prepared for small format IC core (less core)
• Warranty: Limited lifetime warranty

Finishes:

• US3/605 - Bright/polished brass
• US4/606 - Brushed/satin brass
• US10B/613 - Oil rubbed bronze
• US26/625 - Bright/polished chrome
• US26D/626 - Brushed/satin Chrome
• US32D/630 - Brushed/satin stainless steel
