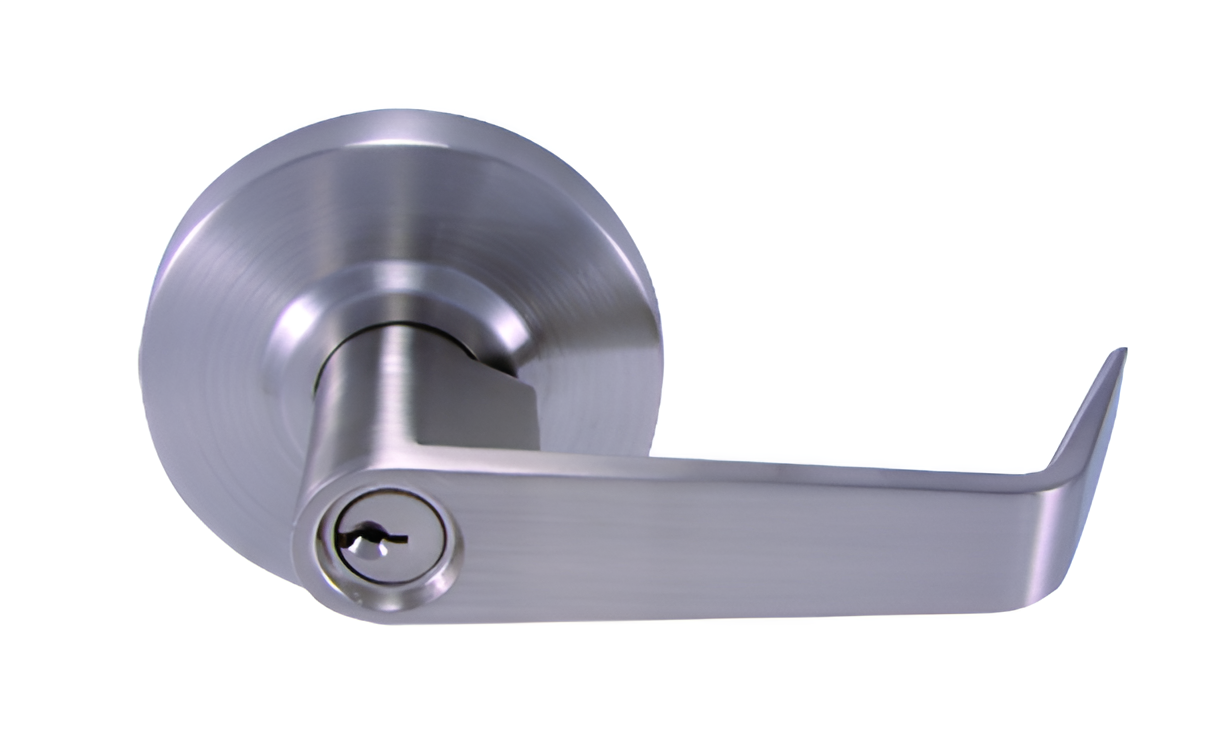

Design Hardware KIL-FLAT-STOREROOM-26D Storeroom Key Lever Trim for 1000R/2000R Exits, Reversible, Satin Chrome

Design Hardware KIL-FLAT-STOREROOM-26D Storeroom Key in Lever Trim seamlessly combines functionality and style, making it an essential addition to your security hardware lineup. Designed specifically for 1000R and 2000R exit devices, this standard-duty lever trim is crafted from durable steel with a zinc dichromated chassis that ensures long-lasting performance. Its secure thru-bolted design enhances stability and reliability in high-traffic areas. This lever trim is ADA-compliant and meets ANSI A156.3 grade 1 standards, making it suitable for a variety of applications. The non-handed, reversible design allows for versatile installation on doors with a standard thickness of 1 3/4 inches, with an option for 2-inch doors available upon request. Featuring a 5-inch solid zinc diecast lever with a total projection of 2 7/8 inches, it offers a comfortable grip while maintaining an elegant profile. The KIL-FLAT-STOREROOM-26D also includes 6-pin brass cylinders with two keys, prepared for small format IC core systems. Choose from a range of finishes, including brushed satin chrome, to match your design aesthetic. With a limited lifetime warranty, you can trust in its quality and performance for years to come.

Storeroom Key in Lever Trim for 1000R and 2000R Exits, Reversible Handing, 626/US26D Satin Chrome

Specifications:

• ANSI: ANSI A156.3, grade 1
• ADA: Meets ADA requirements ANSI A117.1
• Construction: Steel, zinc dichromated chassis with secure thru bolted design
• Application: Standard duty lever trim option for 1000R & 2000R (not recommended for SVR devices, heavy duty LE trim recommended)
• Door Prep: Installs in 2 1/8" 161 door prep
• Actuator: Cross shaped stainless steel
• Lever: 5" Solid zinc diecast lever - 2 7/8" total projection
• Lever Designs: Flat (standard) curved, half curved, S-A & S-B
• Rose: 3 3/8" wrought brass roses
• Handing: Non-handed completely reversible
• Door Thickness: 1 3/4" standard - available for 2" thick doors, specify when ordering
• Functions: Passage, storeroom & entry
• Cylinders Options: 6 Pin brass, C Kwy, with 2 keys standard prepared for small format IC core (less core)
• Warranty: Limited lifetime warranty

Finishes:

• US3/605 - Bright/polished brass
• US4/606 - Brushed/satin brass
• US10B/613 - Oil rubbed bronze
• US26/625 - Bright/polished chrome
• US26D/626 - Brushed/satin chrome
• US32D/630 - Brushed/satin stainless steel

Features

• Door Prep: Installs in 2 1/8" 161 door prep
• Handing: Non-handed completely reversible
• Lever Designs: Flat (standard) curved, half curved, S-A & S-B
• Rose: 3 3/8" wrought brass roses
• Functions: Passage, storeroom & entry
• Construction: Steel, zinc dichromated chassis with secure thru bolted design
• Door Thickness: 1 3/4" standard - available for 2" thick doors, specify when ordering
• Warranty: Limited lifetime warranty
• ANSI: ANSI A156.3, grade 1
• ADA: Meets ADA requirements ANSI A117.1
• Lever: 5" Solid zinc diecast lever - 2 7/8" total projection
• Application: Standard duty lever trim option for 1000R & 2000R (not recommended for SVR devices, heavy duty LE trim recommended)
• Cylinders Options: 6 Pin brass, C Kwy, with 2 keys standard prepared for small format IC core (less core)
• Actuator: Cross shaped stainless steel
