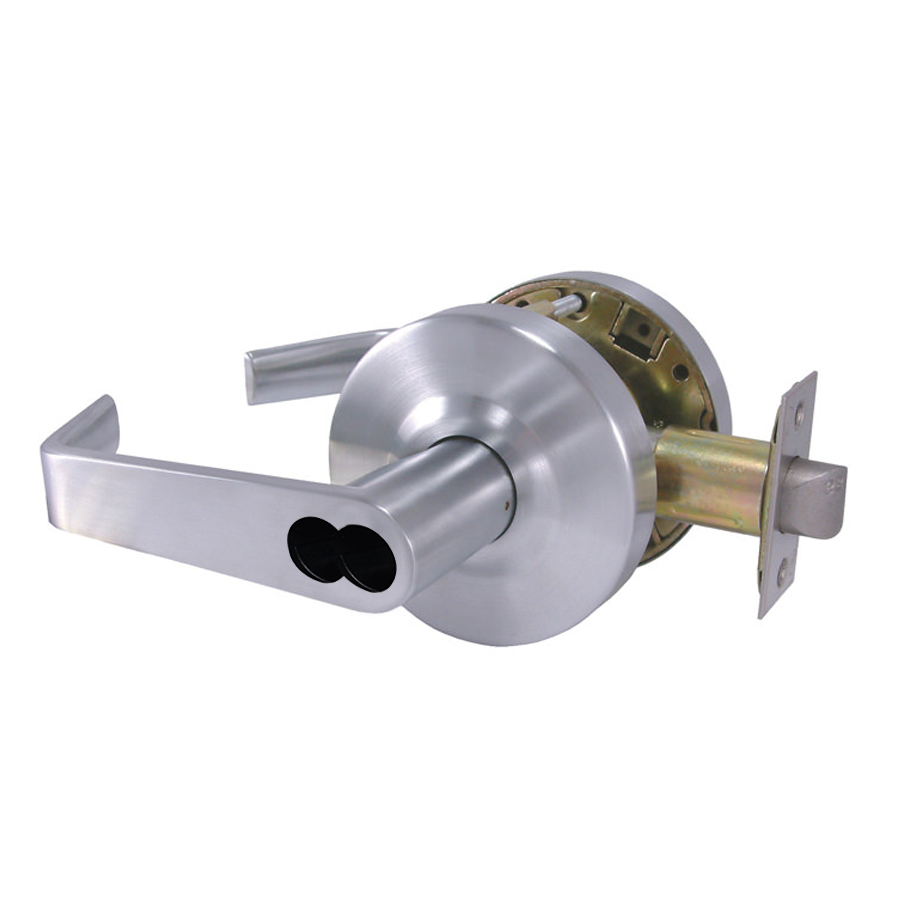

Design Hardware X-82IC-F-26D-LC X Series Heavy Duty IC Cylindrical Lock with Flat Lever LC, 626 Satin Chrome

Design Hardware X-82IC-F-26D-LC X Series Heavy Duty Entry/Office IC Cylindrical Lock with Flat Non-Handed Lever LC offers a robust solution for commercial security needs. Engineered to meet ANSI A156.2, series 4000, grade 1 standards, this lock is ideal for medium to high traffic areas, ensuring durability and reliability. The X-82IC features a steel lock chassis with zinc dichromate finishing for enhanced corrosion resistance, making it suitable for various environments. Its non-handed design allows for easy installation and adaptability, accommodating door thicknesses up to 2 inches. The clutching levers provide additional vandal resistance, maintaining functionality even under stress. With a satin chrome finish (626/US26D), the lock complements a wide array of building aesthetics. The 5-inch solid zinc diecast lever and 3 3/8-inch wrought brass rose add a touch of elegance while ensuring longevity. Designed for versatility, it supports multiple functions, including Entry/Office locking with a deadlocking latchbolt. Additionally, the X-82IC is UL listed for "A" label 3-hour fire doors and meets ADA and ANSI A117.1 accessibility codes, making it a safe choice for any commercial facility. Backed by a limited lifetime warranty, this lockset promises peace of mind and enduring performance.

X Series Heavy Duty Entry/Office IC Cylindrical Lock with Flat Non-Handed Lever LC, 626/US26D Satin Chrome

When it comes to Design Hardware’s commercial locksets, we give you the flexibility, functionality, and durability you desire. Offering multiple finishes, lever options, and trim selections, our goal is to provide the customer with a wide variety of easily accessible commercial locksets for broad range applications.

Features:

• Five finish and design options to meet any building style
• Best for medium to high traffic
• Designed for fast and easy installation

Specifications:

• ANSI: Meets ANSI - A156.2, series 4000, grade 1 standards
• UL Listings: UL Listed for "A" label 3 hour fire doors
• ADA Compliance: Meets ADA and ANSI A117.1 accessibility codes
• Lock Chassis: Steel, zinc dichromated for corrosion resistance
• Clutching: Clutching levers standard for vandal resistance on locking functions
• Trim: 5" Solid zinc diecast levers, 3 3/8" wrought brass roses
• Lever Return: Anti-sag mechanism with independent lever return springs to prevent lever sag
• Handing: Non-handed - completely reversible (S-A & S-B lever styles are handed)
• Backset & Latch face: 2 3/4" backset std. with 1 1/8" x 2 1/4" latch face, 2 3/8" backset is available with 1" x 2 1/4" latch face both with self adjusting front for square or beveled edge doors
• Latchbolt: Stainless Steel with 1/2" projection, Deadlocking on keyed functions & exit latch
• Cylinder Options: 6 Pin brass, C Kwy, with 2 Keys std, Prepared for Small format IC core (less core)
• Strikes: 4 7/8" x 1 1/4" ASA standard - T-strike and full lip strikes available
• Door Preparation: ANSI A115.2 - 2 1/8" crossbore with (2) 3/8" thru bolt holes
• Door Thickness: Factory set for 1 3/4" - 1 3/8" require shims, can be adjusted to fit up to 2" thick
• Lever Designs: Flat (standard), curved, half curved, S-A & S-B
• Marine Grade Option: Marine grade 316 stainless steel lever and rose cover upgrade available
• Fasteners: Combination screws for wood or metal doors & frames
• Warranty: Limited lifetime warranty

Functions:

• X-61: Connecting Room/Exit Latch
• ANSI No. F61
• Deadlocking latchbolt operated by lever from inside only. Blank plate outside
• X-75: Passage
• ANSI No. F75
• Latchbolt operated by lever from either side at all times.
• X-76: Privacy
• ANSI No. F76
• Latchbolt operated by lever from either side. Outside lever is locked by push button inside and unlocked by emergency release outside, rotating inside lever or closing door.
• X-82/X-82IC: Entry/Office
• ANSI No. F82
• Turn/ Push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Pushing button locks outside lever until unlocked with key or inside lever is turned. Deadlocking latchbolt operated by inside lever at all times.
• X-84/X-84IC: Classroom
• ANSI No. F84
• Deadlocking latchbolt operated by lever from either side except when outside lever is locked from outside with key. When outside lever is locked, Latchbolt is operated by key in outside lever or by rotating inside lever.
• X-110/X-110IC: Classroom Intruder
• ANSI No. F110
• Deadlocking latchbolt operated by lever from either side except when outside lever is locked from outside or inside with key. When outside lever is locked latchbolt is operated by key in outside lever or by rotating inside lever. Inside lever Is always unlocked .
• X-86/X-86IC: Storeroom
• ANSI No. F86
• Deadlocking latchbolt operated by key in outside lever or rotating inside lever. Outside lever is always locked.
• X-87/X-87IC: Institutional
• ANSI No. F87
• Deadlocking latchbolt operated by key from either side. Both levers are always locked.
• X-90/X-90IC: Dormitory/Corridor
• ANSI No. F90
• Deadlocking latchbolt operated by lever from either side except when outside lever is locked by key In outside lever or by push button inside. Key in outside lever locks or unlocks outside lever. Unlocked by rotating inside lever, closing door or key in outside lever. Deadlocking latchbolt operated by inside lever at all times.
• X-DD: Double Dummy (surface mounted)
• Double dummy trim for both sides of the door. Levers rigid.
• X-SD: Single Dummy (Surface mounted)
• Single dummy trim for one side of door. Lever rigid.

Finishes:

• US3/605 - Bright/polished brass lifetime finish (PVD)
• US4/606 - Brushed/satin brass
• US10B/613 - Oil rubbed bronze
• US15/619 - Brushed/satin nickel
• US26/625 - Bright/polished chrome (PVD)
• US26D/626 - Brushed/satin chrome
