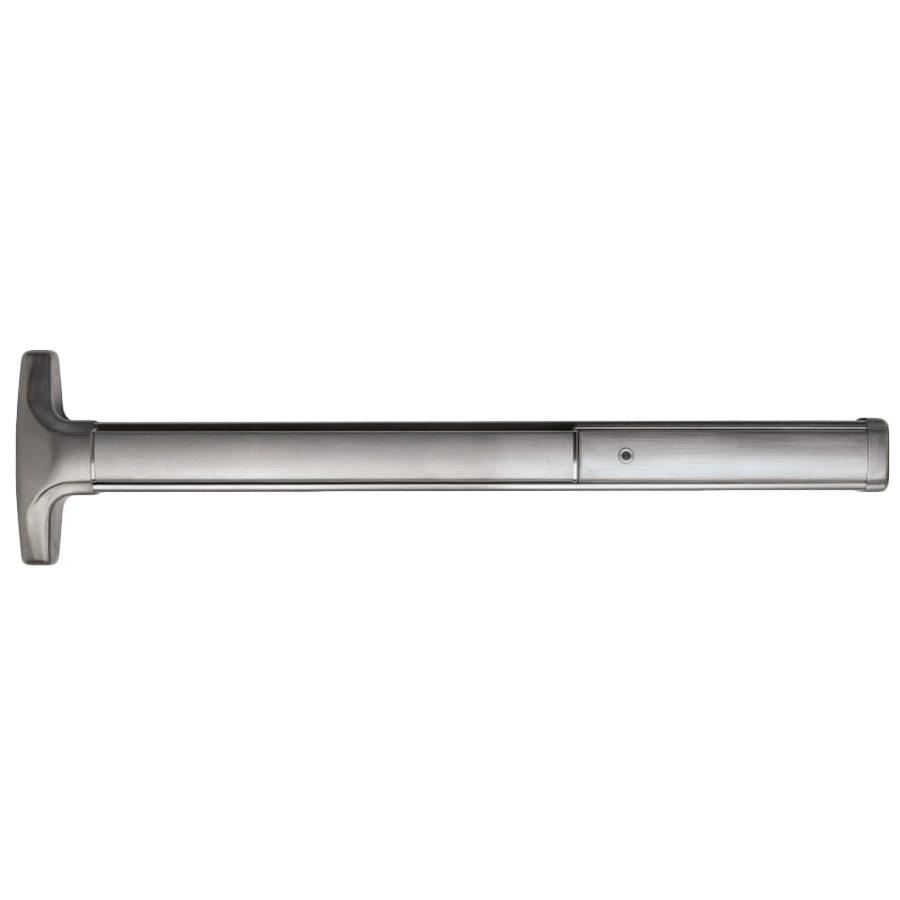

Detex 60-630-48X96 Advantex Narrow Stile Concealed Vertical Rod for Aluminum Door, Satin SS

Detex Corporation 60-630-48X96 Advantex Narrow Stile Concealed Vertical Rod (CVR) is a robust exit device designed specifically for aluminum doors, providing enhanced security for high-traffic environments. This exit-only device features a sleek design without trim, allowing for a streamlined aesthetic while maintaining functionality. With hex dogging included, it ensures easy operation and reliability. Crafted for durability, the 60-630-48X96 is ideal for high-use situations, minimizing door preparation time and installation efforts. Its heavy-duty angled end cap deflects potential damage, ensuring longevity. The patented mounting plate system simplifies installation, making it an efficient choice for professionals. This device supports door heights from 80 to 96 inches and widths of 48 inches, fitting standard door thicknesses between 1-3/4" and 2-1/4". The adjustable top strike accommodates various weather strip thicknesses, enhancing its versatility. Notable features include a 6-position multi-step action for consistent re-latching, easily changeable outside trims, and field-reversible handing. With a satin stainless steel finish (630/US32D) and compliance to various certifications including ADA and ANSI, the Detex 60-630-48X96 is a reliable choice for those seeking superior safety and ease of use in panic exit situations.

Advantex Narrow Stile Concealed Vertical Rod (CVR) for Aluminum Door, Exit Only Device, No Trim, Hex Dogging, 48in x 80in-96in, 630/US32D Satin Stainless Steel

The 60 and 61 series concealed vertical rod exit device is super-heavy-duty panic and fire exit hardware for use on all types of narrow stile aluminum doors without a mullion. The patented mounting plate system ensures the easiest and most accurate installation of panic hardware available.

Features:

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments
• Minimal door prep saves time and money
• Fast and easy installation saves time and money
• Heavy duty angled end cap deflects damage away from device
• Except for 03R, outside trims are easily changed or rekeyed without removing device from door
• 6-position multi-step action in top latch keeps top and bottom bolts retracted until door closes and provides more consistent re-latching and security to door
• Top strike fully adjustable both vertically and to accommodate a variety of varying weather strip thicknesses
• Top strike both secures the door and re-engages the latchbolts
• Patented deadlocking of top (60 and 61 series) and bottom bolt (60 series) assemblies
• Durable steel bottom drop bolt (60 series)
• Rods are easily adjustable with rods installed in door
• Handed - field reversible
• Field sizeable
• 1/8 turn dogging

Mechanical Options:

• F: 3-Hour fire rated without astragal up to 10 foot (steel) door
• AM: Anti-microbial coating
• HD: Hex dogging (std.)
• CD: Cylinder dogging
• SLR: Silencer
• 24: Fits 24" door width
• 30: Fits 30" door width
• 36: Fits 36" door width (std.)
• 48: Fits 48" door width
• EC1: Heavy duty angled end cap (standard on 630, 606, 612, 613, 605, 611 & 629 finishes only)
• EC2: Flush end cap (standard on 628, 693 & 695 finishes only), specify when used on 2" - 3-1/2" stiles

Electrical Options:

• EA: Exit alarm
• ED: Electric dogging
• ER: Electric latch retraction
• EE: Delayed egress self-contained
• EX: Request to exit
• EXV: Request to exit for high voltage
• EE ER: Electric delayed egress with latch retraction

Specifications:

• Door Thickness: Fits standard 1-3/4" - 2-1/4" doors
• Door Stile: Fits minimum 2"
• For 2": 3-1/2" door stiles, specify EC2
• Door Types: Aluminum/aluminum channel FRP
• Fasteners: Machine and sheet metal screws supplied standard
• Rail is heavy ribbed aluminum extrusion

Finishes:

• 605/US3 - Polished brass
• 606/US4 - Brushed brass
• 611/US9 - Polished bronze
• 612/US10 - Brushed bronze
• 613/US10B - Oil rubbed bronze
• 628/US28 - Aluminum satin
• 629/US32 - Polished stainless steel
• 630/US32D - Brushed stainless steel
• 693/SPBLK - Black painted
• 695/SP313 - Dark bronze painted
