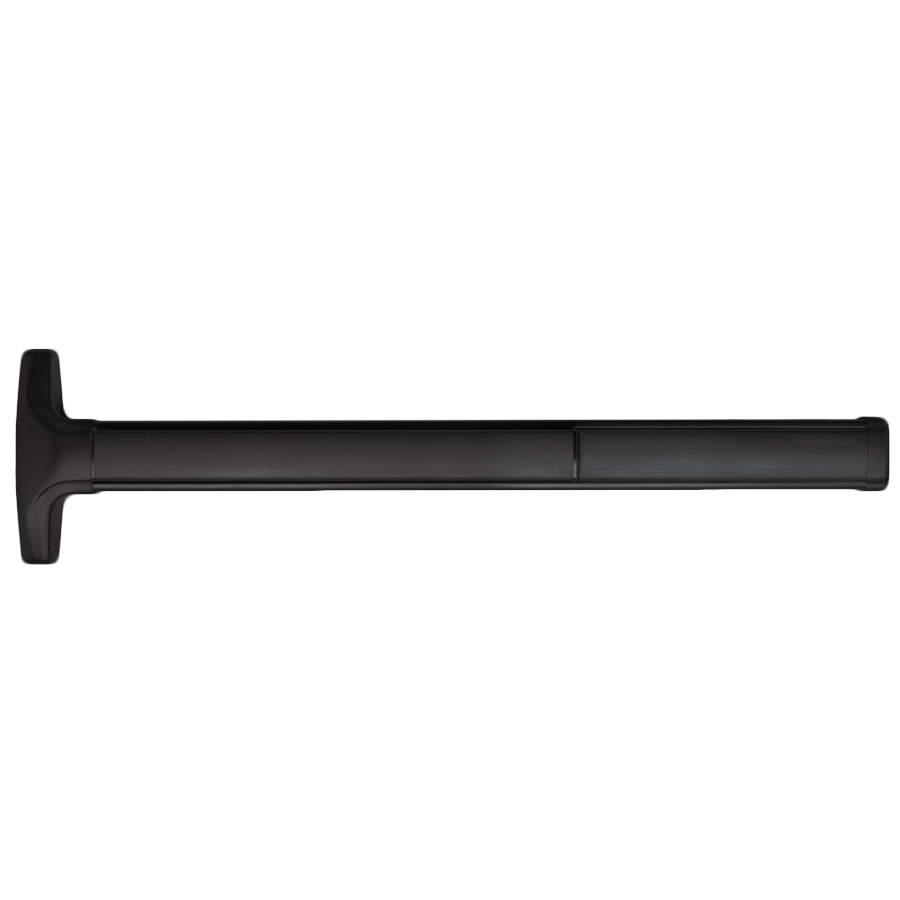

Detex F60-LD-693-36X96 Advantex Fire Rated Narrow Stile CVR Exit Device, 36in x 80in-96in, Black

Detex Corporation F60-LD-693-36X96 Advantex Fire Rated Narrow Stile Concealed Vertical Rod (CVR) is engineered for superior performance on narrow stile aluminum doors, providing an exit-only solution that meets stringent safety standards. This device is specifically designed for high-traffic environments, ensuring durability with its heavy-duty construction and patented mounting plate system for effortless installation. Featuring a 3-hour fire rating, the F60-LD is perfect for applications where safety is paramount. The top latch incorporates a 6-position multi-step action, allowing for reliable re-latching and security as the door closes. Its adjustable top strike accommodates various weather strip thicknesses, enhancing the device’s versatility. Additionally, the heavy-duty angled end cap effectively deflects damage, prolonging the lifespan of the hardware. This exit device fits standard door widths of 36 inches and is suitable for door heights ranging from 80 to 96 inches. With the option for field reversal, it offers flexibility in installation. Notably, it comes in a sleek black powder-coated finish, providing a modern look while maintaining robust functionality. The Detex F60-LD-693 is an ideal choice for building professionals seeking reliable and efficient panic hardware, ensuring safety without compromising on aesthetics.

Advantex Fire Rated Narrow Stile Concealed Vertical Rod (CVR) for Aluminum Door, Exit Only Device, No Trim, Less Dogging, 36in x 80in-96in, 693/SPBLK Black Powder Coated

The 60 and 61 series concealed vertical rod exit device is super-heavy-duty panic and fire exit hardware for use on all types of narrow stile aluminum doors without a mullion. The patented mounting plate system ensures the easiest and most accurate installation of panic hardware available.

Features:

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments
• Minimal door prep saves time and money
• Fast and easy installation saves time and money
• Heavy duty angled end cap deflects damage away from device
• Except for 03R, outside trims are easily changed or rekeyed without removing device from door
• 6-position multi-step action in top latch keeps top and bottom bolts retracted until door closes and provides more consistent re-latching and security to door
• Top strike fully adjustable both vertically and to accommodate a variety of varying weather strip thicknesses
• Top strike both secures the door and re-engages the latchbolts
• Patented deadlocking of top (60 and 61 series) and bottom bolt (60 series) assemblies
• Durable steel bottom drop bolt (60 series)
• Rods are easily adjustable with rods installed in door
• Handed - field reversible
• Field sizeable
• 1/8 turn dogging

Mechanical Options:

• F: 3-Hour fire rated without astragal up to 10 foot (steel) door
• AM: Anti-microbial coating
• HD: Hex dogging (std.)
• CD: Cylinder dogging
• SLR: Silencer
• 24: Fits 24" door width
• 30: Fits 30" door width
• 36: Fits 36" door width (std.)
• 48: Fits 48" door width
• EC1: Heavy duty angled end cap (standard on 630, 606, 612, 613, 605, 611 & 629 finishes only)
• EC2: Flush end cap (standard on 628, 693 & 695 finishes only), specify when used on 2" - 3-1/2" stiles

Electrical Options:

• EA: Exit alarm
• ED: Electric dogging
• ER: Electric latch retraction
• EE: Delayed egress self-contained
• EX: Request to exit
• EXV: Request to exit for high voltage
• EE ER: Electric delayed egress with latch retraction

Specifications:

• Door Thickness: Fits standard 1-3/4" - 2-1/4" doors
• Door Stile: Fits minimum 2"
• For 2": 3-1/2" door stiles, specify EC2
• Door Types: Aluminum/aluminum channel FRP
• Fasteners: Machine and sheet metal screws supplied standard
• Rail is heavy ribbed aluminum extrusion

Finishes:

• 605/US3 - Polished brass
• 606/US4 - Brushed brass
• 611/US9 - Polished bronze
• 612/US10 - Brushed bronze
• 613/US10B - Oil rubbed bronze
• 628/US28 - Aluminum satin
• 629/US32 - Polished stainless steel
• 630/US32D - Brushed stainless steel
• 693/SPBLK - Black painted
• 695/SP313 - Dark bronze painted
