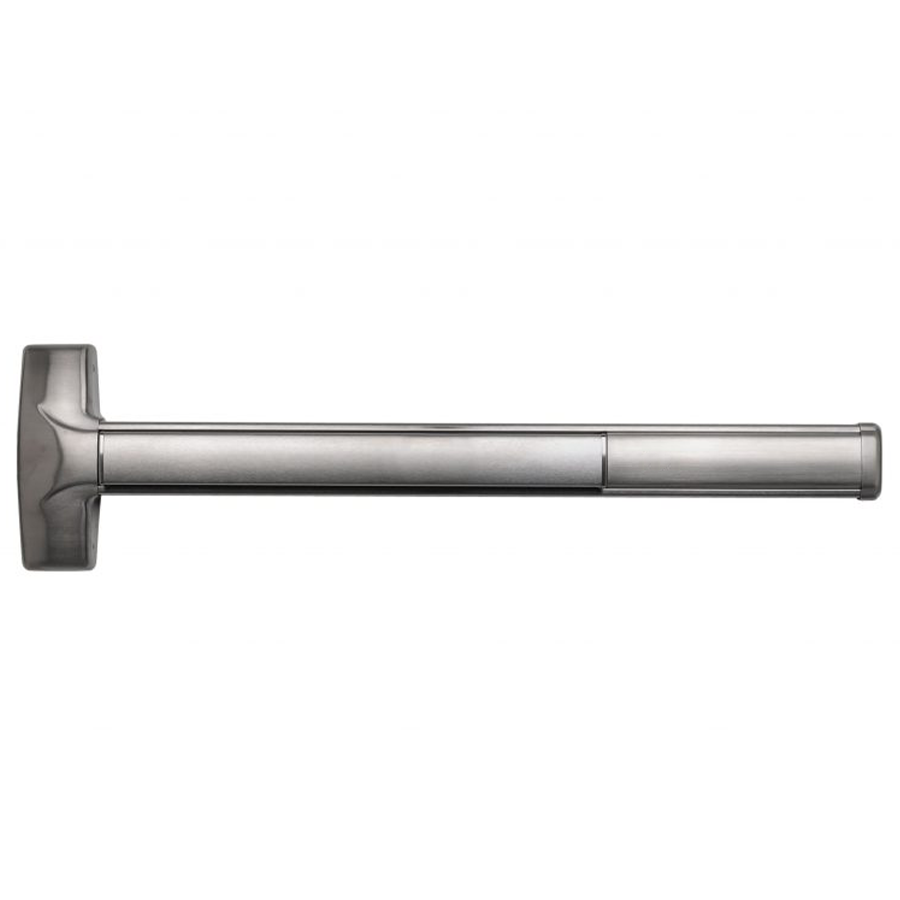

Detex Corporation F80-LD-630-36X96 Advantex Fire Rated Wide Stile Concealed Vertical Rod (CVR) is an exceptional exit device designed for hollow metal doors, offering both functionality and enhanced security. This robust panic hardware accommodates door heights ranging from 80 to 96 inches and features a satin stainless steel finish that combines durability with aesthetic appeal. Engineered for high-use environments, the F80-LD's heavy-duty design ensures years of trouble-free service while minimizing door preparation time. Its innovative mounting plate system allows for quick and precise installation, making it an ideal choice for contractors and building professionals. The device includes a patented deadlocking mechanism for both the top and bottom bolts, ensuring maximum security during use. With adjustable top strikes and a 6-position multi-step action in the top latch, this exit device provides consistent re-latching and effective door security. The F80-LD is field reversible, accommodating various handing requirements, and offers easy accessibility for changes or rekeying without removing the device from the door. Certified for fire safety with a 3-hour rating, this exit device meets stringent ANSI and UL standards, making it a reliable choice for commercial applications. Elevate your security solutions with the Detex Corporation F80-LD-630-36X96, designed for performance and peace of mind.

Advantex Fire Rated Wide Stile Concealed Vertical Rod (CVR) for Hollow Metal Door, Exit Only Device, No Trim, Less Dogging, 36in x 80in-96in, 630/US32D Satin Stainless Steel

Designed to enhance the architectural aesthetics of any décor, the 80 and 81 series concealed vertical rod exit device is also super-heavy-duty panic and fire exit hardware for use on all types of hollow metal doors without a mullion. The patented mounting plate system ensures the easiest and most accurate installation of panic hardware available.

Features:

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments
• Minimal door prep saves time and money
• Heavy duty angled end cap deflects damage away from device
• Fast and easy installation saves time and money
• Except for 03WSV, outside trims are easily changed or rekeyed without removing device from door
• 6-position multi-step action in top latch keeps top and bottom bolts retracted until door closes and provides more consistent re-latching and security to door
• Top strike fully adjustable both vertically and to accommodate a variety of varying weather strip thicknesses
• Top strike both secures the door and re-engages the latchbolts
• Patented deadlocking of top (80 and 81 series) and bottom bolt (80 series) assemblies
• Durable steel bottom drop bolt (80 series)
• Rods are easily adjustable with rods installed in door
• Handed - field reversible
• Field sizeable
• 1/8 turn dogging

Mechanical Options:

• F: 3-Hour fire rating without astragal up to 10 foot (steel) door
• AM: Anti-microbial coating
• HD: Hex dogging (std.)
• CD: Cylinder dogging
• SLR: Silencer
• 24: Fits 24" door width
• 30: Fits 30" door width
• 36: Fits 36" door width (std.)
• 48: Fits 48" door width
• EC1: Heavy duty angled end cap (standard on 630, 606, 612, 613, 605, 611 & 629 finishes only)
• EC2: Flush end cap (standard on 628, 693 & 695 finishes only), specify when used on 2" - 3-1/2" stiles

Electrical Options:

• EA: Exit alarm
• ED: Electric dogging
• ER: Electric latch retraction
• EE: Delayed egress self-contained
• EX: Request to exit
• EXV: Request to exit for high voltage
• EE ER: Electric delayed egress with latch retraction

Specifications:

• Door Types: Hollow metal
• Door Thickness: Fits standard 1-3/4" - 2-1/4"
• Minimum Stile: 5"
• Fasteners: Machine and self-drilling screws standard
• Rail is heavy ribbed aluminum extrusion

Finishes:

• 605/US3 - Polished brass
• 606/US4 - Brushed brass
• 611/US9 - Polished bronze
• 612/US10 - Brushed bronze
• 613/US10B - Oil rubbed bronze
• 628/US28 - Aluminum satin
• 629/US32 - Polished stainless steel
• 630/US32D - Brushed stainless steel
• 693/SPBLK - Black painted
• 695/SP313 - Dark bronze painted
