Detex Corporation F80-LD-693-48X96 Advantex Fire Rated Wide Stile Concealed Vertical Rod (CVR) is engineered to deliver exceptional security and aesthetic appeal for hollow metal doors. This exit-only device, featuring no trim and less dogging, is designed for door sizes ranging from 48 inches wide and 80 to 96 inches tall, making it a versatile solution for various applications. Constructed for durability, the F80 series exit device is perfect for high-traffic environments. Its minimal door preparation saves both time and money during installation, while the heavy-duty angled end cap deflects damage, ensuring longevity. The patented mounting plate system allows for quick and precise installation of panic hardware, and the 6-position multi-step action in the top latch enhances security by keeping the top and bottom bolts retracted until the door closes. This fire-rated device boasts a 3-hour rating without an astragal, adding an extra layer of safety. Its adjustable top strike accommodates varying weather strip thicknesses, making it adaptable to different door environments. Handed field reversible, this device simplifies maintenance, allowing for easy rekeying or changing of outside trims. The F80-LD-693-48X96 is not just a security solution; it’s a reliable choice for professionals seeking quality and performance in their hardware.

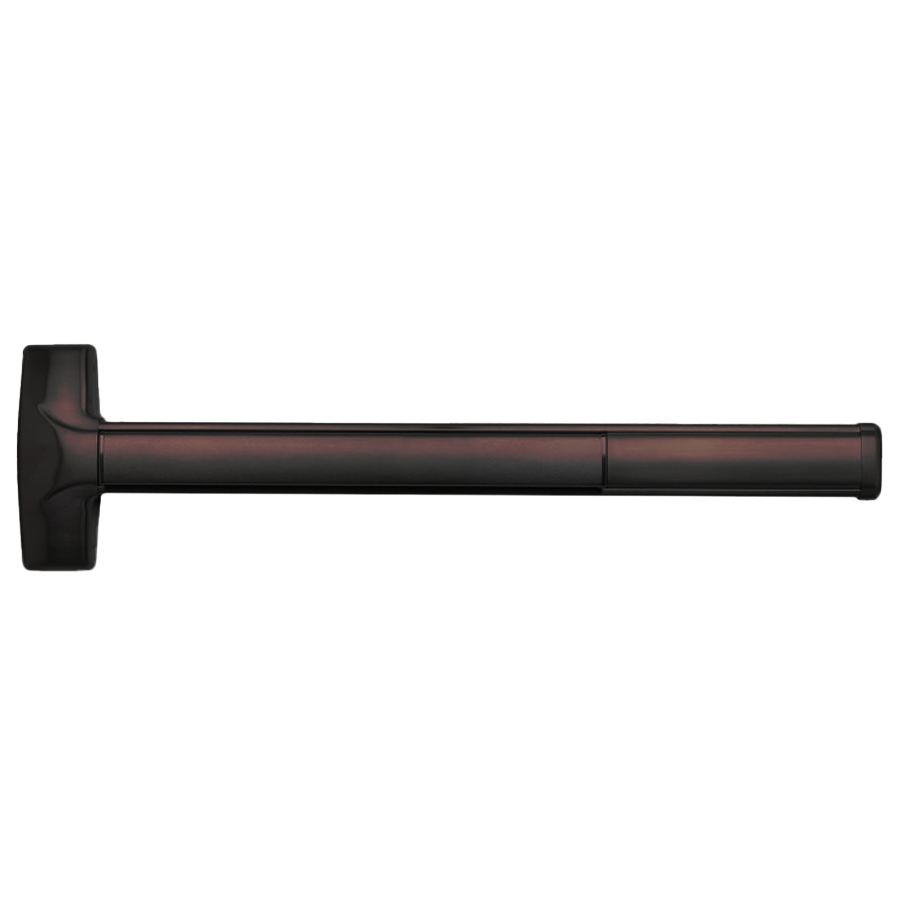

Advantex Fire Rated Wide Stile Concealed Vertical Rod (CVR) for Hollow Metal Door, Exit Only Device, No Trim, Less Dogging, 48in x 80in-96in, 693/SPBLK Black Powder Coated

Designed to enhance the architectural aesthetics of any décor, the 80 and 81 series concealed vertical rod exit device is also super-heavy-duty panic and fire exit hardware for use on all types of hollow metal doors without a mullion. The patented mounting plate system ensures the easiest and most accurate installation of panic hardware available.

Features:

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments
• Minimal door prep saves time and money
• Heavy duty angled end cap deflects damage away from device
• Fast and easy installation saves time and money
• Except for 03WSV, outside trims are easily changed or rekeyed without removing device from door
• 6-position multi-step action in top latch keeps top and bottom bolts retracted until door closes and provides more consistent re-latching and security to door
• Top strike fully adjustable both vertically and to accommodate a variety of varying weather strip thicknesses
• Top strike both secures the door and re-engages the latchbolts
• Patented deadlocking of top (80 and 81 series) and bottom bolt (80 series) assemblies
• Durable steel bottom drop bolt (80 series)
• Rods are easily adjustable with rods installed in door
• Handed - field reversible
• Field sizeable
• 1/8 turn dogging

Mechanical Options:

• F: 3-Hour fire rating without astragal up to 10 foot (steel) door
• AM: Anti-microbial coating
• HD: Hex dogging (std.)
• CD: Cylinder dogging
• SLR: Silencer
• 24: Fits 24" door width
• 30: Fits 30" door width
• 36: Fits 36" door width (std.)
• 48: Fits 48" door width
• EC1: Heavy duty angled end cap (standard on 630, 606, 612, 613, 605, 611 & 629 finishes only)
• EC2: Flush end cap (standard on 628, 693 & 695 finishes only), specify when used on 2" - 3-1/2" stiles

Electrical Options:

• EA: Exit alarm
• ED: Electric dogging
• ER: Electric latch retraction
• EE: Delayed egress self-contained
• EX: Request to exit
• EXV: Request to exit for high voltage
• EE ER: Electric delayed egress with latch retraction

Specifications:

• Door Types: Hollow metal
• Door Thickness: Fits standard 1-3/4" - 2-1/4"
• Minimum Stile: 5"
• Fasteners: Machine and self-drilling screws standard
• Rail is heavy ribbed aluminum extrusion

Finishes:

• 605/US3 - Polished brass
• 606/US4 - Brushed brass
• 611/US9 - Polished bronze
• 612/US10 - Brushed bronze
• 613/US10B - Oil rubbed bronze
• 628/US28 - Aluminum satin
• 629/US32 - Polished stainless steel
• 630/US32D - Brushed stainless steel
• 693/SPBLK - Black painted
• 695/SP313 - Dark bronze painted
