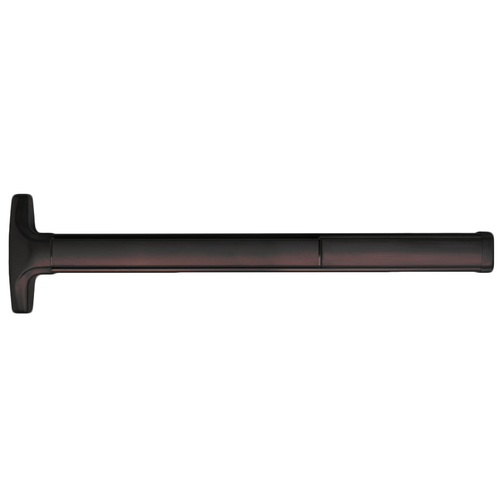

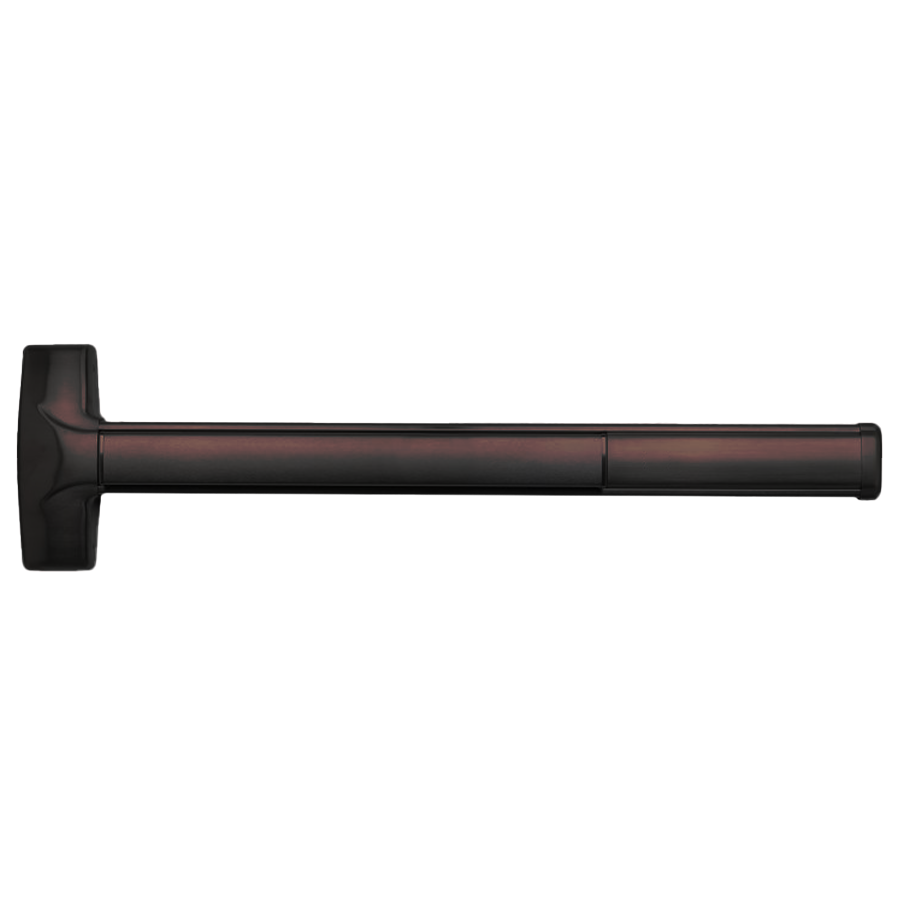

Detex Corporation F80-LD-695-48X96 Advantex Fire Rated Wide Stile Concealed Vertical Rod (CVR) is engineered for exceptional performance in panic and fire exit scenarios. Designed for hollow metal doors without a mullion, this exit only device offers a robust, heavy-duty construction that ensures years of reliable service even in high-traffic environments. Its patented mounting plate allows for quick and accurate installation, minimizing door prep time and costs. This model features a 3-hour fire rating, making it an ideal choice for safety-conscious applications. The heavy-duty angled end cap deflects damage away from the device, while the adjustable top strike caters to varying weather strip thicknesses, securing the door and re-engaging the latchbolts effectively. The 6-position multi-step action top latch guarantees consistent re-latching and heightened security. With options for easy changing or rekeying of outside trims, and field-reversible handing, the F80-LD-695-48X96 is versatile and user-friendly. It accommodates door widths of 48 inches and heights ranging from 80 to 96 inches, making it suitable for various applications. Finished in dark bronze, this device not only provides security but also enhances the architectural appeal of any setting. Choose Detex for reliable, aesthetically pleasing security solutions.

Advantex Fire Rated Wide Stile Concealed Vertical Rod (CVR) for Hollow Metal Door, Exit Only Device, No Trim, Less Dogging, 48in x 80in-96in, 695/SP313 Dark Bronze Painted

Designed to enhance the architectural aesthetics of any décor, the 80 and 81 series concealed vertical rod exit device is also super-heavy-duty panic and fire exit hardware for use on all types of hollow metal doors without a mullion. The patented mounting plate system ensures the easiest and most accurate installation of panic hardware available.

Features:

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments
• Minimal door prep saves time and money
• Heavy duty angled end cap deflects damage away from device
• Fast and easy installation saves time and money
• Except for 03WSV, outside trims are easily changed or rekeyed without removing device from door
• 6-position multi-step action in top latch keeps top and bottom bolts retracted until door closes and provides more consistent re-latching and security to door
• Top strike fully adjustable both vertically and to accommodate a variety of varying weather strip thicknesses
• Top strike both secures the door and re-engages the latchbolts
• Patented deadlocking of top (80 and 81 series) and bottom bolt (80 series) assemblies
• Durable steel bottom drop bolt (80 series)
• Rods are easily adjustable with rods installed in door
• Handed - field reversible
• Field sizeable
• 1/8 turn dogging

Mechanical Options:

• F: 3-Hour fire rating without astragal up to 10 foot (steel) door
• AM: Anti-microbial coating
• HD: Hex dogging (std.)
• CD: Cylinder dogging
• SLR: Silencer
• 24: Fits 24" door width
• 30: Fits 30" door width
• 36: Fits 36" door width (std.)
• 48: Fits 48" door width
• EC1: Heavy duty angled end cap (standard on 630, 606, 612, 613, 605, 611 & 629 finishes only)
• EC2: Flush end cap (standard on 628, 693 & 695 finishes only), specify when used on 2" - 3-1/2" stiles

Electrical Options:

• EA: Exit alarm
• ED: Electric dogging
• ER: Electric latch retraction
• EE: Delayed egress self-contained
• EX: Request to exit
• EXV: Request to exit for high voltage
• EE ER: Electric delayed egress with latch retraction

Specifications:

• Door Types: Hollow metal
• Door Thickness: Fits standard 1-3/4" - 2-1/4"
• Minimum Stile: 5"
• Fasteners: Machine and self-drilling screws standard
• Rail is heavy ribbed aluminum extrusion

Finishes:

• 605/US3 - Polished brass
• 606/US4 - Brushed brass
• 611/US9 - Polished bronze
• 612/US10 - Brushed bronze
• 613/US10B - Oil rubbed bronze
• 628/US28 - Aluminum satin
• 629/US32 - Polished stainless steel
• 630/US32D - Brushed stainless steel
• 693/SPBLK - Black painted
• 695/SP313 - Dark bronze painted
