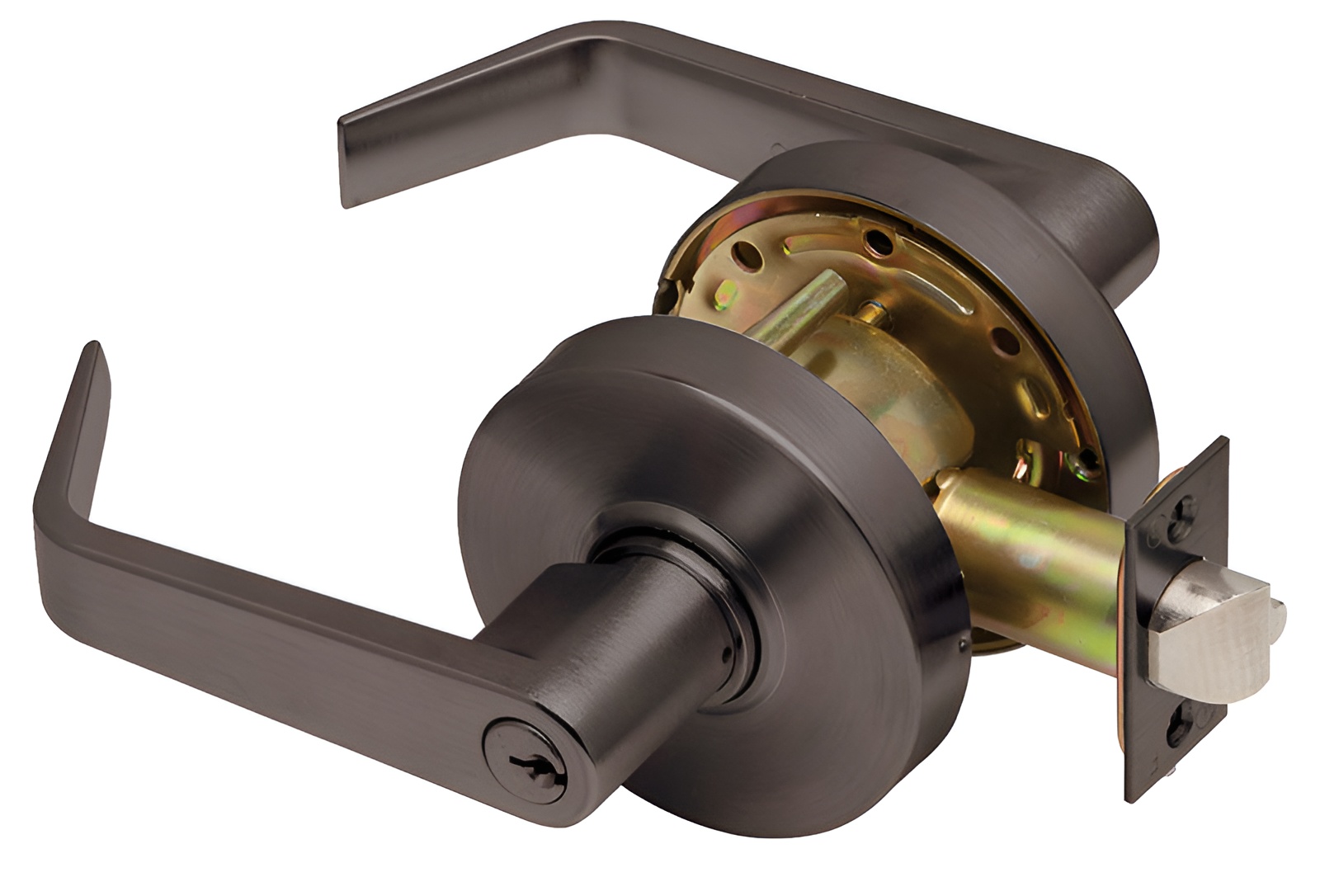

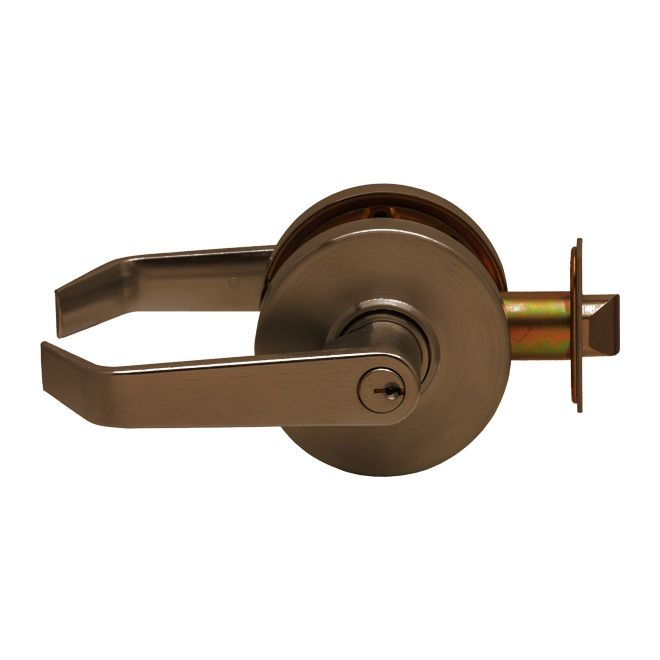

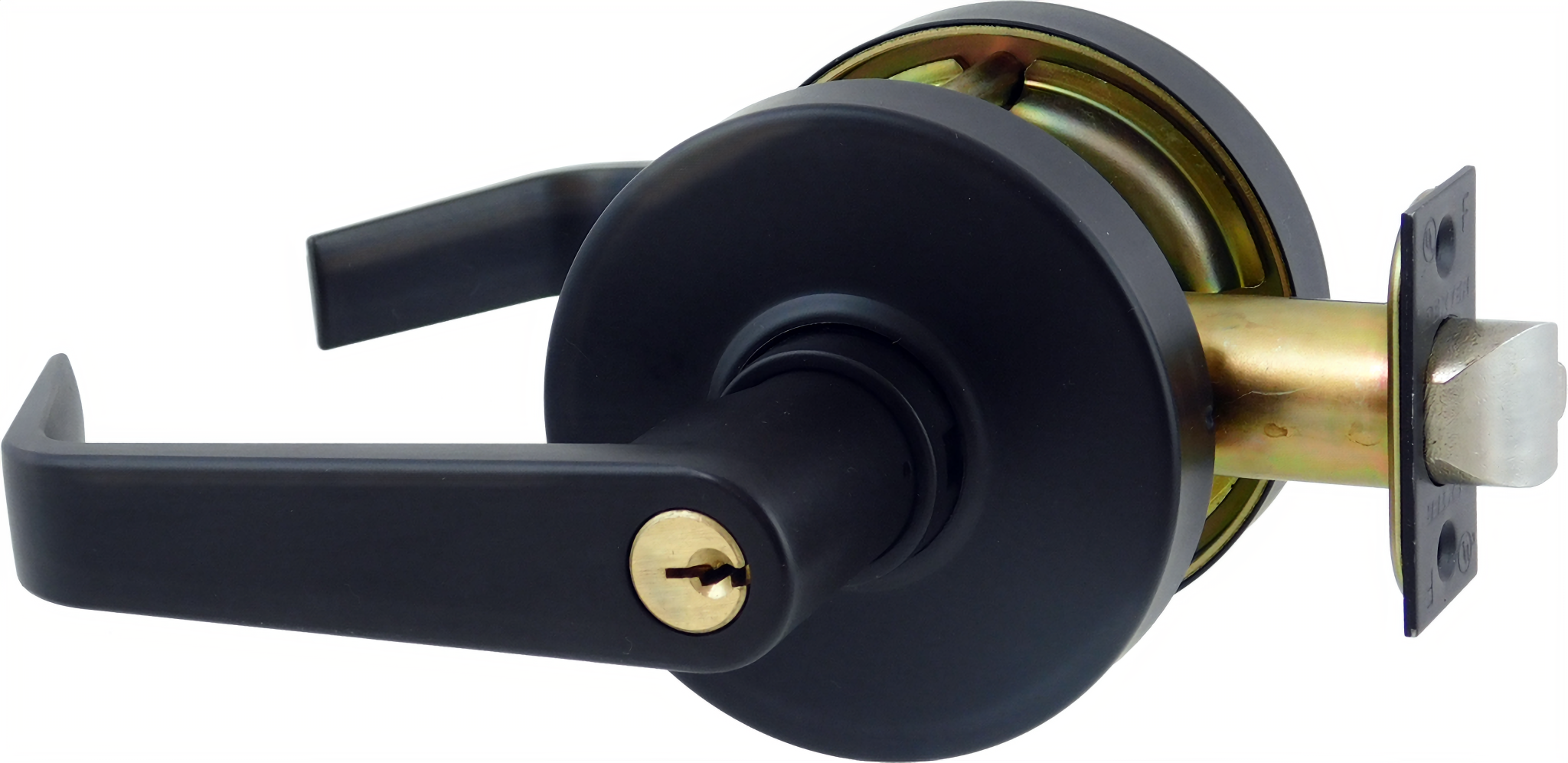

Cylindrical Lock, Classroom Security, Grade 1, 2-3/4" Backset, ANSI Strike, Regular Lever, Schlage C Keyway, Keyed Different, Oil Rubbed Bronze
Attributes
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: C1000-CSEC-R-613-KDC, C1000CSECR613KDC
Ansi: F88
Ansi Function: F88 - Entry/Restroom
Backset: 2-3/4"
Base Material: Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 7-1/4"
Box Height Fraction: 3-3/4"
Box Width Fraction: 6-3/4"
Burglar Rated: No
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Included: Yes
Cylinder Type: 6-Pin Cylinder
Cylinders Present: Double Cylinder
Design: Regular Lever
Door Application: Commercial Locks
Door Bore Size: 2-1/8"
Door Thickness: 1-3/8" to 2"
Door Thickness Max: 2"
Door Thickness Min: 1-3/8"
Finish: Oil Rubbed Bronze
Finish Code: 613
Finish Color: Oil Rubbed Bronze
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Finish Family: Dark Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Classroom Security
Function Family: Classroom Security
Grade: Grade 1
Handing: Non-Handed
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Keyway: Schlage C
Knob/ Lever Design: Regular
Knob/ Lever Style: Lever
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/8"
Latch Bolt Type: Deadlatch
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Regular
Lever Style: Regular
Leverknob Design: Regular Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 5 Years
Lock Category: Cylindrical Lock
Lock Face Size: 1" x 2-1/4"
Manufacturer Function: Classroom Security
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/8"
Of Keys: 2
Origin: Mexico
Pack Height: 3.75"
Pack Length: 7.25"
Pack Qty: 1
Pack Volume: 183.52 in³
Pack Width: 6.75"
Pins: 6
Product Height: 3.75"
Product Length: 7.25"
Product Width: 6.75"
Projection: 2-15/16"
Restricted Keyway: No
Rose Escutcheon: Rose
Rose/ Escutcheon Style: Rose
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: 3-7/16"
Screws: Wood/Machine Screws
Series: C1000
Ship Weight: 3.5 lbs.
Std Keyway: C
Std Latch Backset Dim: 2-3/4"
Std Latch Number: C1000-DL-234-630
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: C1000-ACLS
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Size: 4-7/8" x 1-1/4"
Strike Style: Square Corner
Strike Type: ANSI Strike
Subtype: Cylindrical Lock
Supplier: Dexter
Type: LOCK SETS
Ul Listing: ANSI A156.2 Series 4000, Grade 1, UL Listed
Unit of Measure: Each
Upc: 043156534968
Upc Code: 43156534968
