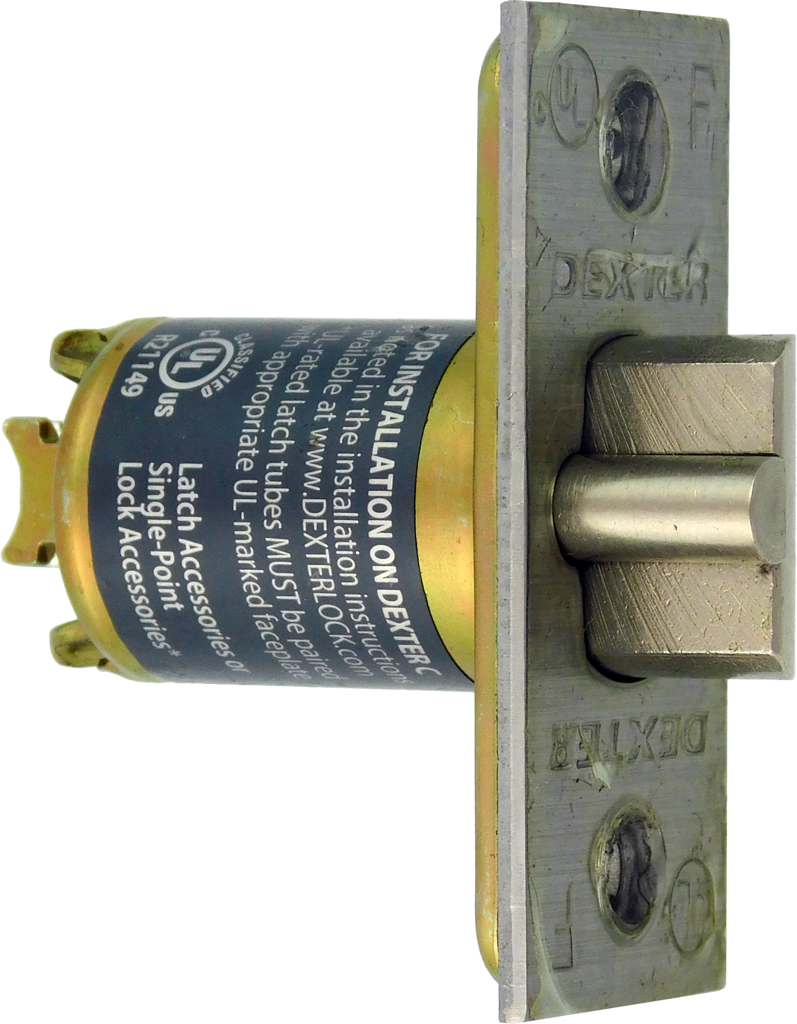

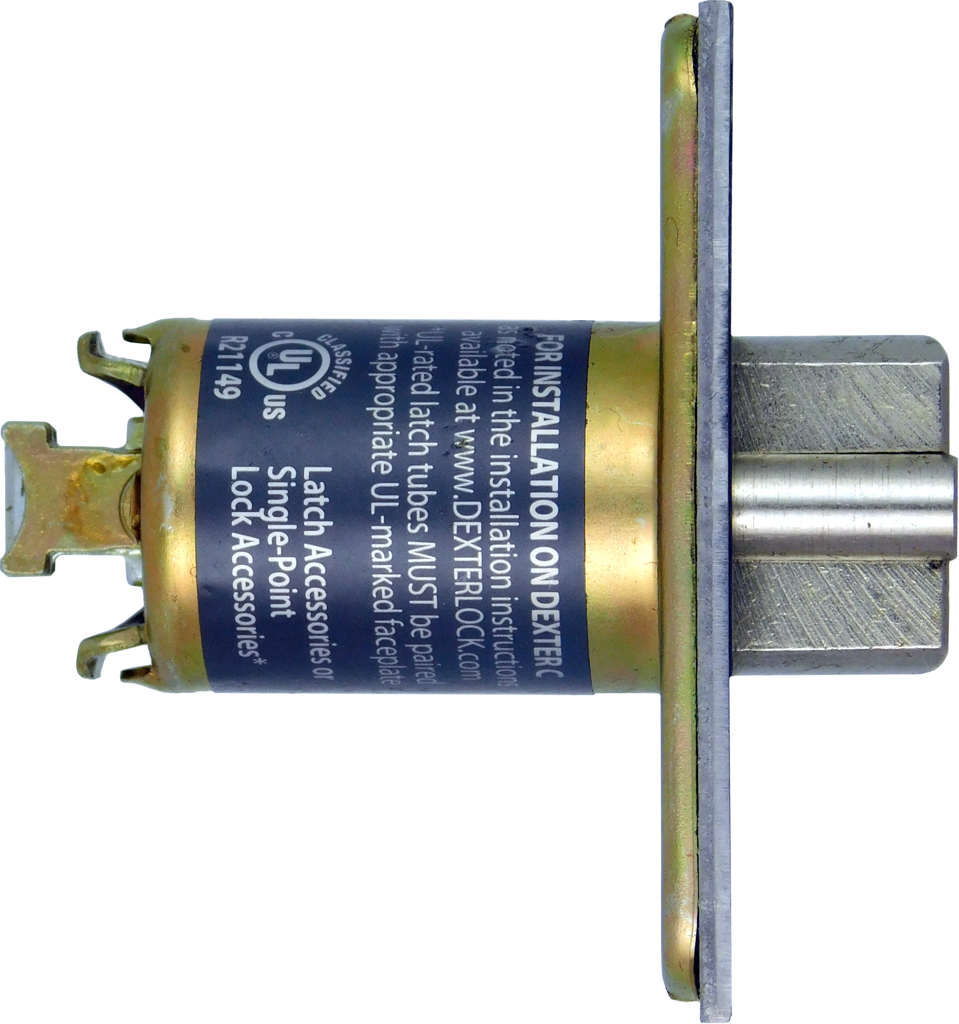

Dexter C1000-DL-630-2 3/8 BS Grade 1 Deadlatch offers robust security and reliability, making it an essential choice for both commercial and residential applications. This Grade 1 deadlatch is UL listed for three hours, ensuring optimal performance and durability for doors ranging from 1-3/4" to 2" in thickness. Designed specifically for the C1000 Series, it features a square-corner beveled latch measuring 1-1/8" x 2-1/4" with a 2-3/4" backset, paired with an ANSI curved lip strike for added security. The C1000-DL-630-2 accommodates Schlage C cylinders, utilizing 6-pin configurations for versatile keying options. This deadlatch supports various functions including Entry/Office and Classroom Security, with both clutching and non-clutching capabilities, allowing for tailored access control based on your needs. With a sleek satin stainless steel finish (630), this deadlatch not only enhances security but also complements modern architectural aesthetics. The durable construction and reliable operation ensure long-term satisfaction for building professionals and homeowners alike. Elevate your security solution with the Dexter C1000-DL-630-2, designed for those who prioritize safety without compromising style.

Grade 1 Deadlatch 2-3/8in for C1000 Series, 630/US32D Stainless Steel

Specifications:

• Grade 1, UL listed 3 hour
• 1-3/4" to 2" door range standard
• All functions include 1-1/8" x 2-1/4" square-corner beveled latch with 2-3/4" backset and ANSI 1-1/4" x 4-7/8" curved lip strike
• Accommodate Schlage C cylinders are 6-pin cylinders keyed 6, keyed different
• Accommodates SFIC to accept 6-pin/7-pin

Function and Lever Features:

• PASS - F75 Passage (non-clutching)
• PRIV - F76 Privacy (non-clutching)
• ENTR - F109 Entry/office (clutching)
• NC-ENTR - F109 Entry/office (non-clutching)
• CLRM - F84 Classroom (clutching)
• CSEC - Classroom security
• STRM - Storeroom (clutching)
• NC-STRM - Storeroom (non-clutching)
• ASYL - Asylum (clutching)

Trim Designs:

• R - Regular
• C - Curved

Keying:

• KDC - Conventional 6-pin, Schlage C, KD
• SFIC - Less SFIC
• KDC - 6-pin, Schlage C

Accessories:

• Latches: All latches are square corner with 1 1⁄8" x 2 1⁄4" faceplate. Grade 1 latches are square corner with 2 3⁄8" and 2 3⁄4" backsets available. Products with "234" in the description represent a 2 3⁄4" backset.
• SL: Passage, privacy. Backset: 2 3⁄8". Latch: Springlatch
• SL-234: Passage, privacy. Backset: 2 3⁄4". Latch: Springlatch
• DL: Entry/office, classroom, classroom security, storeroom. Backset: 2 3⁄8". Latch: Deadlatch
• DL-234: Entry/office, classroom, classroom security, storeroom. Backset: 2 3⁄4". Latch: Deadlatch
• Strikes: Radius corner, full lip strike. 1 3⁄4" x 2 1⁄4".

Finishes:

• 613 - Dark Bronze
• 626 - Satin Chrome
