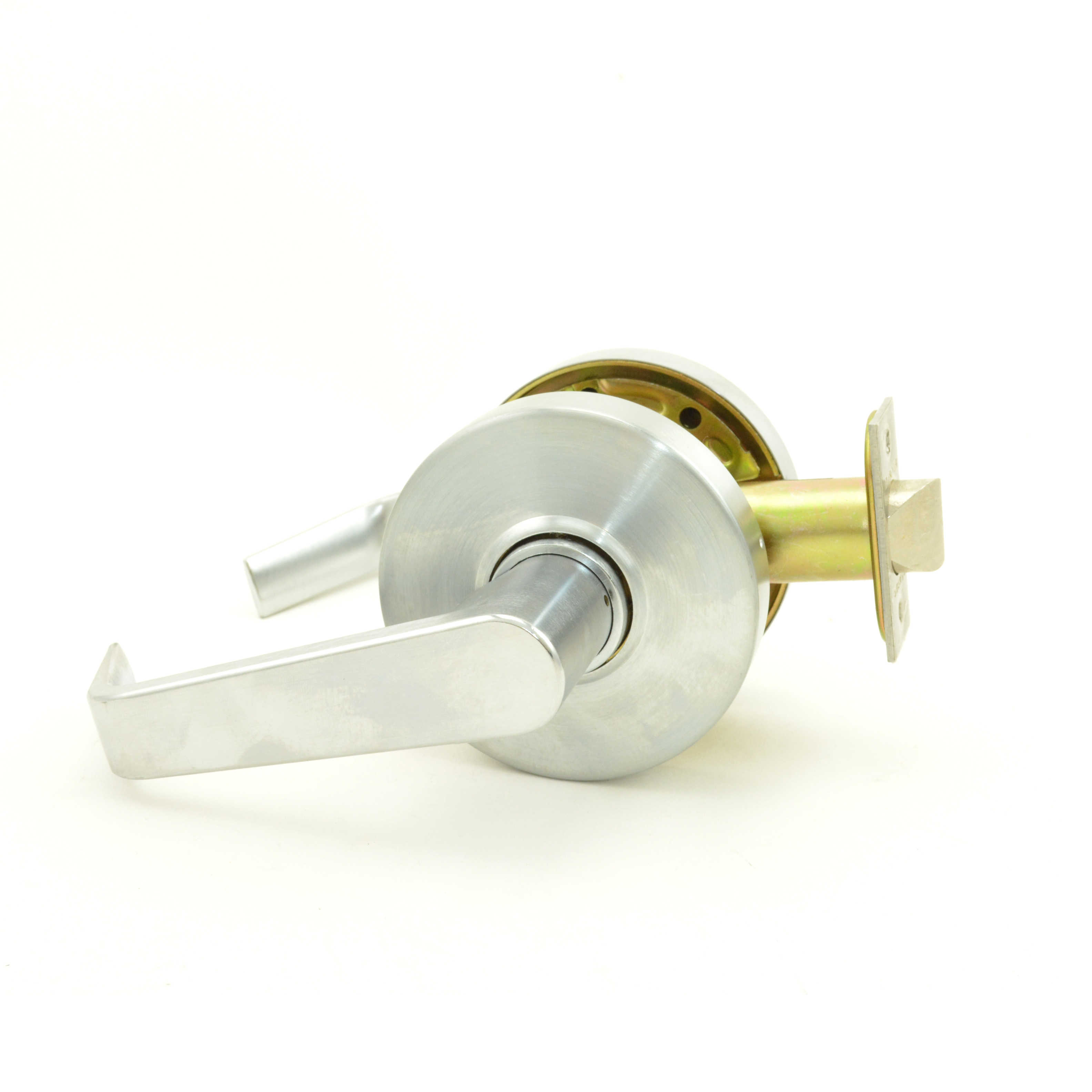

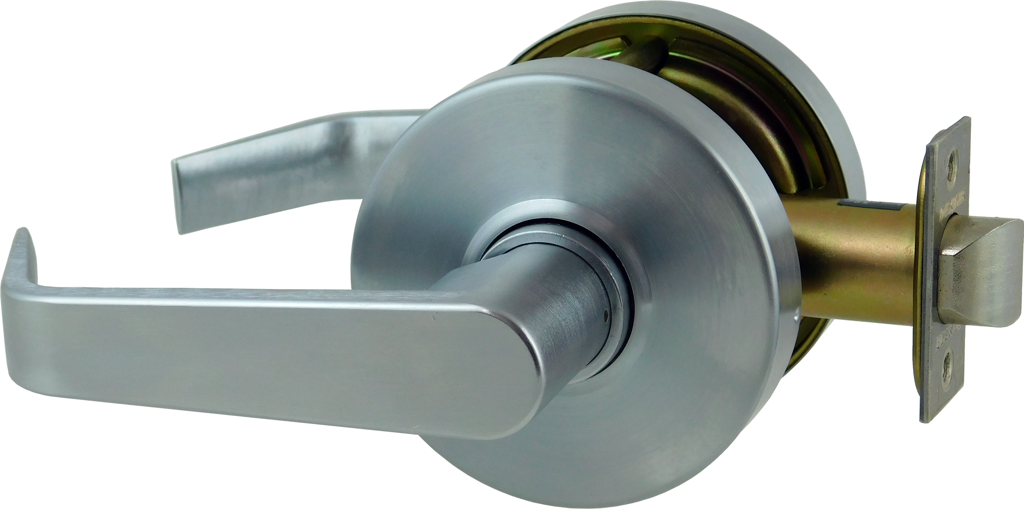

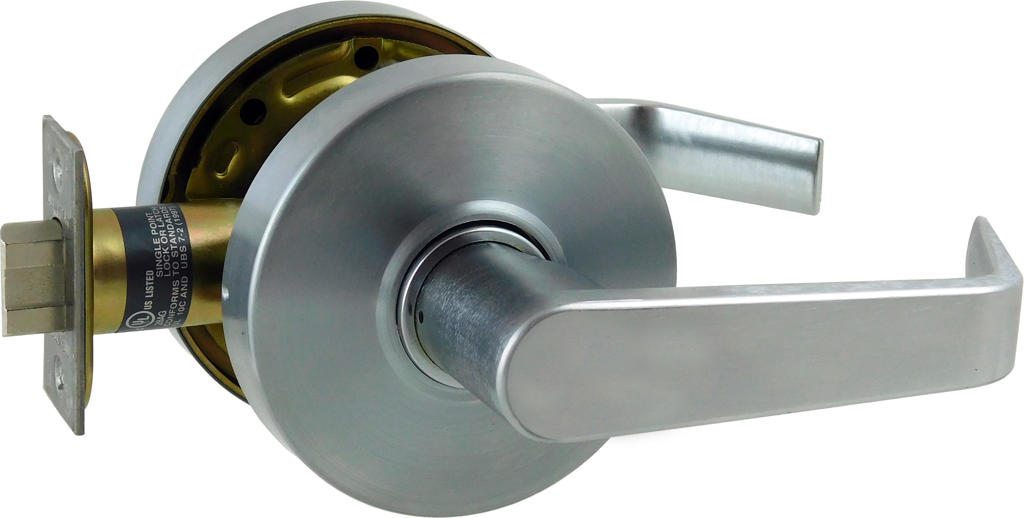

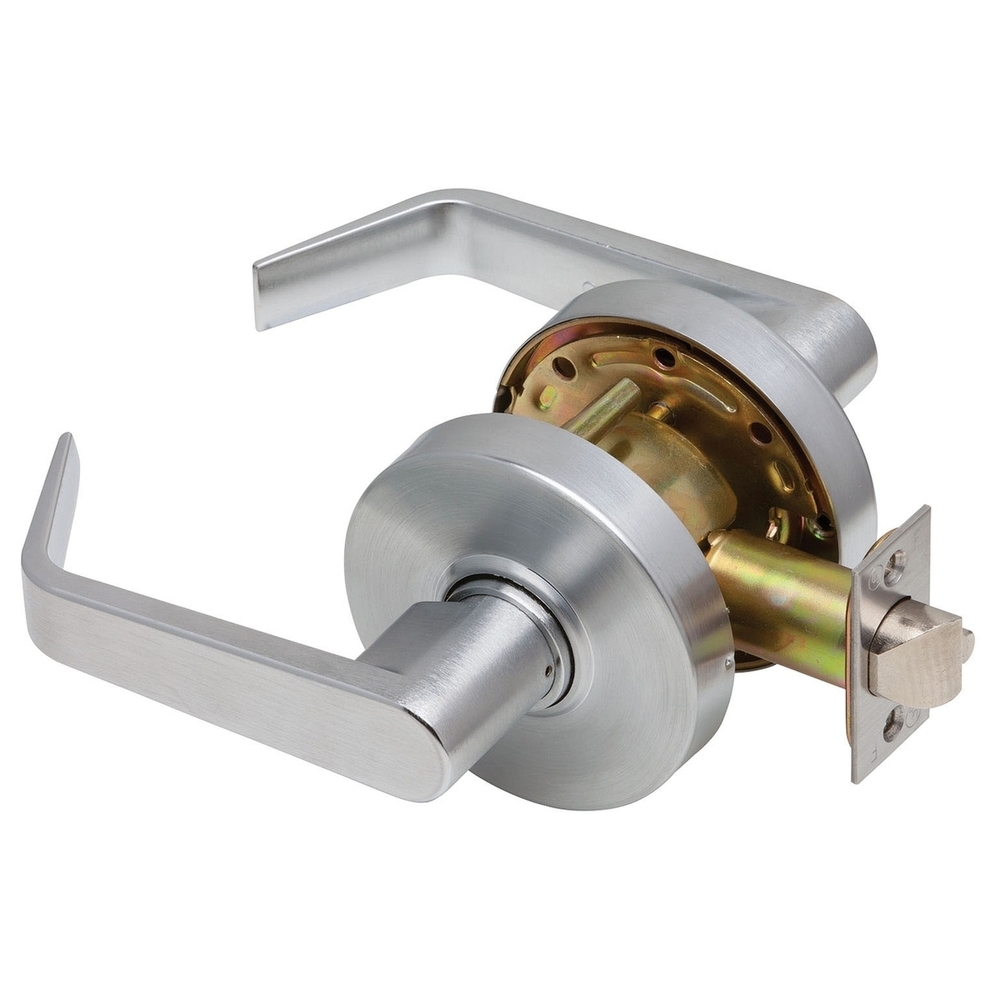

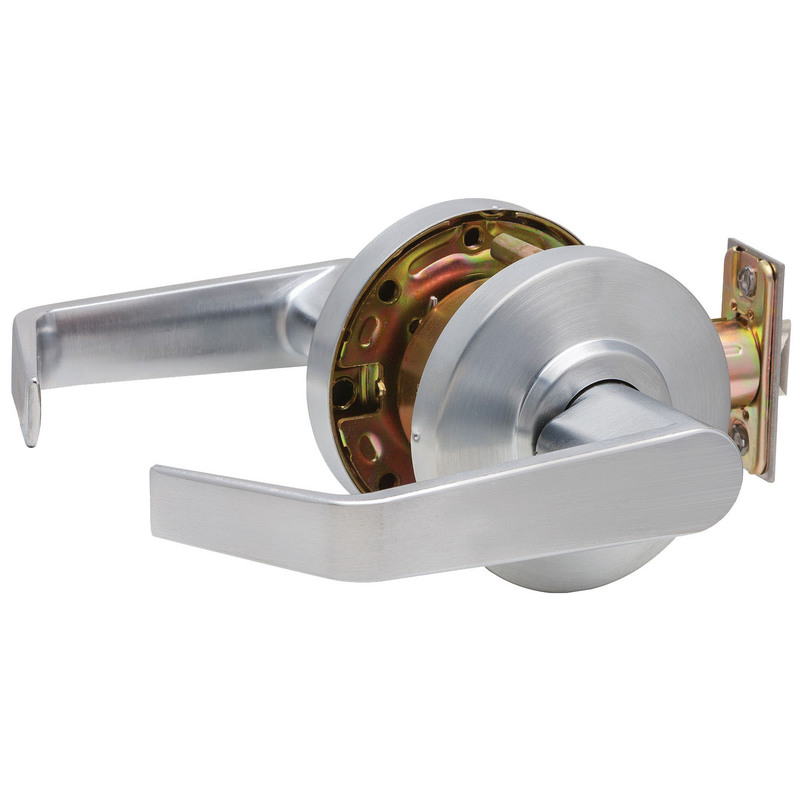

Dexter Commercial C1000PASSR626 Passage Grade 1 Regular Lever Clutching Cylindrical Lock offers a reliable and stylish solution for your locking needs. With a durable satin chrome finish and a robust design, this lockset is perfect for both commercial and residential applications. It is UL listed for 3-hour fire ratings, ensuring enhanced safety and compliance. Designed to fit door thicknesses ranging from 1-3/8" to 2", the C1000PASSR626 features a 2-3/4" backset and a 2-1/8" crossbore size, making installation straightforward and adaptable to various door types. The lockset includes a square-corner beveled latch with a faceplate dimension of 1-1/8" x 2-1/4", paired with an ANSI strike measuring 1-1/4" x 4-7/8". The regular lever design not only provides ease of use but also complements a range of architectural styles. Additionally, with a limited 5-year mechanical warranty, you can trust in the quality and durability of this product. Choose the Dexter C1000PASSR626 for a dependable locking solution that balances performance, aesthetics, and value.
Dexter Commercial Hardware, provides the locksmith customer with a competitive option for locks, exits, and closers. With over 200 SKUs of Grade 1, Grade 2, and residential grade products, Dexter Commercial Hardware is your solution for basic, cost constrained jobs.
Attributes
Manufacturer surcharge: $ 0.0
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: C1000-PASS-R-626, C1000PASSR626
Ansi: F75
Ansi Function: F75 - Passage
Ansi Function Description: Passage
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 7-1/4"
Box Height Fraction: 3-3/4"
Box Width Fraction: 6-3/4"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore
Cylinder Included: No
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: Regular Lever
Dimension: 3-1/2" Rose
Door Application: Commercial Locks
Door Bore Size: 2-1/8"
Door Range: 1-3/8" to 2"
Door Thickness: 1-3/8 In. - 2 In.
Door Thickness Max: 2"
Door Thickness Min: 1-3/8"
Finish: Satin Chrome
Finish Code: 626
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: PASS-Passage
Function Family: Passage
Grade: Grade 1
Hand: Not Handed
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Knob/ Lever Design: Regular
Knob/ Lever Style: Lever
Latch Backset Dim: 2-3/4 In.
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/8"
Latch Bolt Type: Spring Latch
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: C1000-SL-234-630
Latch Type: Spring Latch (Unguarded)
Lever Knob: Lever
Lever Knob Design: R - Regular
Lever Knob Design Family: Straight Return Lever
Lever Knob Design Name: Regular
Lever Style: Regular
Leverknob Design: Regular Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 5 Years
Lock Category: Cylindrical Lock
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Passage, Non-Clutching
Manufacturer Function Description: Both levers always unlocked.
Manufacturer Warranty: Limited 5 Year Mechanical Warranty
Material: Brass and Bronze
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Pack Height: 3.75"
Pack Length: 7.25"
Pack Qty: 1
Pack Volume: 183.52 in³
Pack Width: 6.75"
Product Height: 3.75"
Product Length: 7.25"
Product Width: 6.75"
Projection: 2-15/16"
Restricted Keyway: No
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16" Rose Diameter
Rose Escutcheon Dimensions: 3-7/16"
Rose/ Escutcheon Style: Rose
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: 3-7/16"
Screws: Wood/Machine Screws
Series: C1000 Series
Ship Weight: 3.5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: C1000-SL-234-630
Std Latch Type: Springlatch
Std Strike Height: 4-7/8"
Std Strike Number: C1000-ACLS
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: C1000-ACLS
Strike Size: 4-7/8" x 1-1/4"
Strike Style: Square Corner
Strike Type: ASA
Strike Width: 1-1/4 In.
Structure Function: PASS
Structure Latch Number: C1000-SL-234-630
Structure Outside Finish: 626
Structure Outside Trim: R
Structure Series: C1000
Structure Strike Number: C1000-ACLS
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Supplier: Dexter
Type: Mechanical Commercial Locksets
Ul Listing: ANSI A156.2 Series 4000, Grade 1, UL Listed
Ul Listing Type: UL Listed 3 Hour
Unit of Measure: Each
Upc: 043156534692
Upc Code: 43156534692
