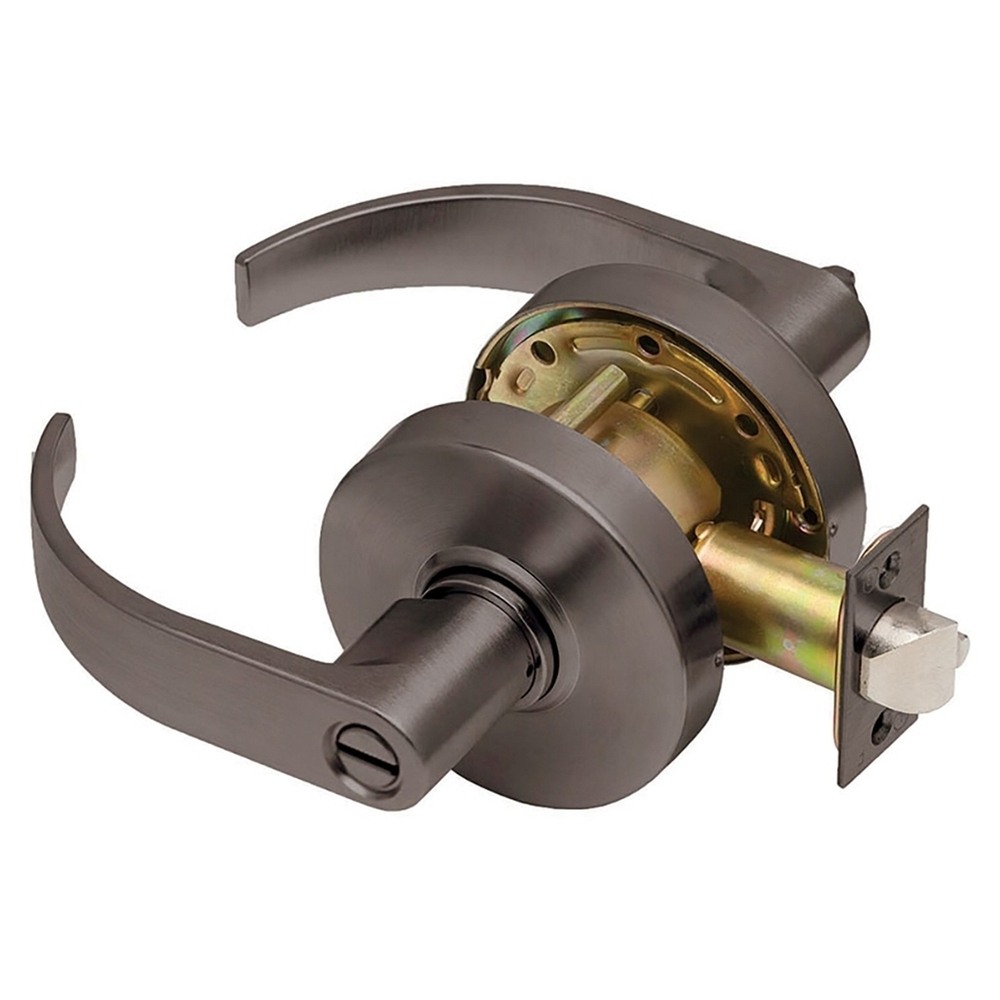

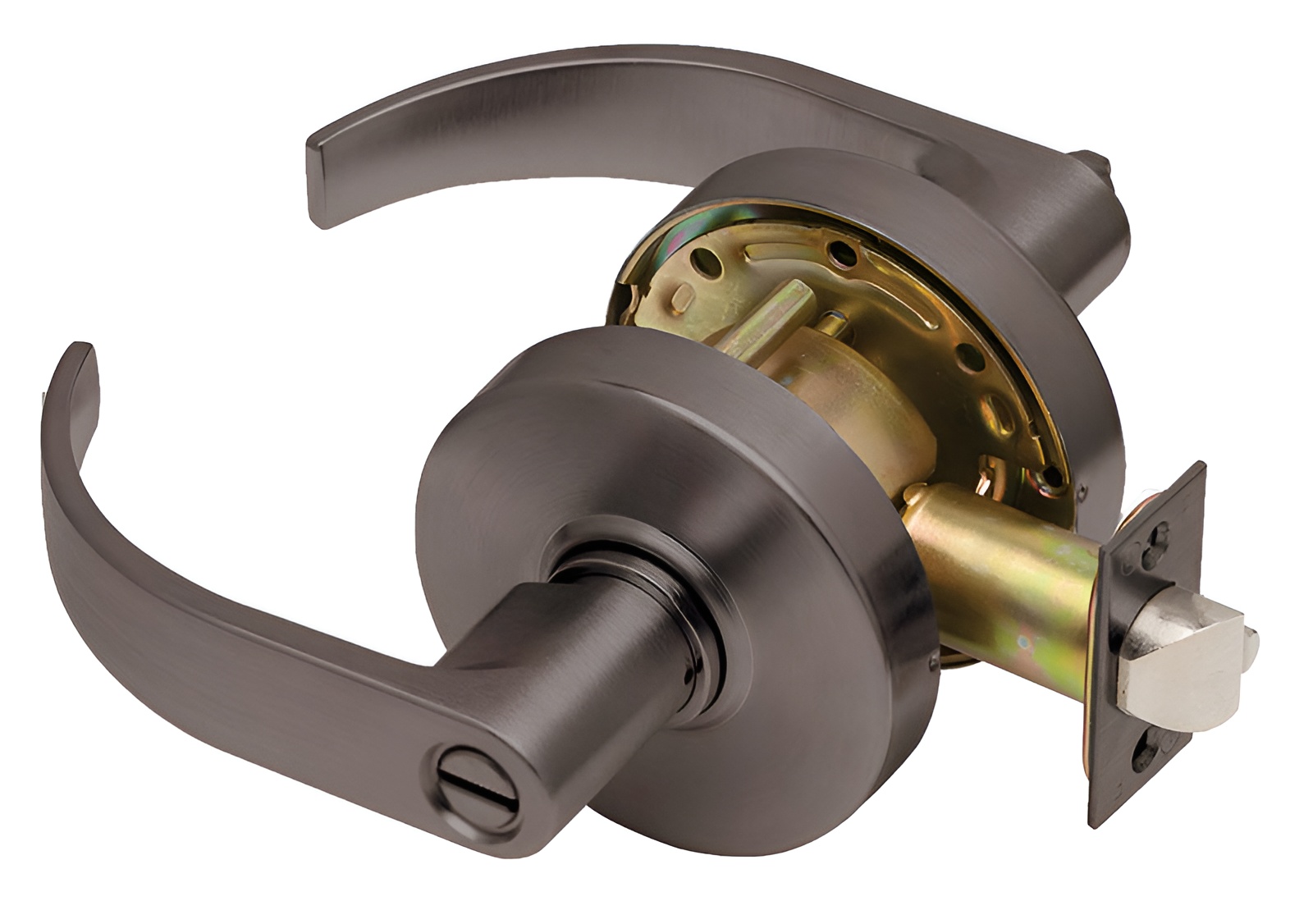

Dexter C1000-PRIV-C-613 Cylindrical Lock

Attributes

Accessible: Yes

Ada Compliance: Yes

Alternate Codes: C1000-PRIV-C-613, C1000PRIVC613

Ansi: F76

Ansi Function: F76 - Privacy

Backset: 2-3/4"

Base Material: Bronze

Bolt Projection: 1/2"

Bolt Protection: 1/2 In.

Bore Hole Diameter: 2-1/8"

Box Depth Fraction: 7-1/4"

Box Height Fraction: 3-3/4"

Box Width Fraction: 6-3/4"

Burglar Rated: No

Category: Commercial Locks, Cylindrical Levers, Lock Sets

Commercial Residential: Commercial

Country of Origin: Mexico

Country of origin: Mexico

Cylinder Included: Yes

Cylinder Type: Non-Keyed

Cylinders Present: Non-Keyed

Design: Curved Lever

Door Application: Commercial Locks

Door Bore Size: 2-1/8"

Door Thickness: 1-3/8 In. - 2 In.

Door Thickness Max: 2"

Door Thickness Min: 1-3/8"

Finish: Oil Rubbed Bronze

Finish Code: 613

Finish Color: Oil Rubbed Bronze

Finish Description: Dark Oxidized Satin Bronze Oil Rubbed

Finish Family: Dark Bronze

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: PRIV-Privacy

Function Family: Privacy

Grade: Grade 1

Hand: Not Handed

Handing: Non-Handed

Installation: Commercial

Knob/ Lever Design: Curved

Knob/ Lever Style: Lever

Latch Backset Dim: 2-3/4 In.

Latch Bolt Faceplate Size: 2-1/4" x 1-1/8"

Latch Bolt Type: Square Corner

Latch Bore Diameter: 1"

Latch Type: Spring Latch (Unguarded)

Lever Knob: Lever

Lever Knob Design: C - Curved

Lever Knob Design Name: Curved

Lever Style: Curved

Leverknob Design: Curved Lever

Leverknob Design Family: Curved Return Lever

Limited Warranty: 5 Years

Lock Category: Cylindrical Lock

Lock Face Size: 2-1/4 In. x 1-1/8 In.

Manufacturer Function: Privacy, Non-Clutching

Maximum Door Thickness: 2"

Minimum Door Thickness: 1-3/8"

Origin: Mexico

Pack Height: 3.75"

Pack Length: 7.25"

Pack Qty: 1

Pack Volume: 183.52 in³

Pack Width: 6.75"

Product Height: 3.75"

Product Length: 7.25"

Product Width: 6.75"

Projection: 3-1/2"

Restricted Keyway: No

Rose Escutcheon: Rose

Rose/ Escutcheon Style: Rose

Roseescutcheon Design: 3-7/16" Rose Diameter

Roseescutcheon Dimensions: 3-7/16"

Screws: Wood/Machine Screws

Series: C1000

Ship Weight: 3.5 lbs.

Std Latch Backset Dim: 2-3/4"

Std Latch Number: C1000-SL-234-630

Std Latch Type: Springlatch

Std Strike Height: 4-7/8"

Std Strike Number: C1000-ACLS

Std Strike Type: ANSI Curved Lip Strike

Std Strike Width: 1-1/4"

Strike: ANSI Strike

Strike Dimensions: 1-1/4" x 4-7/8"

Strike Height: 4-7/8 In.

Strike Size: 4-7/8" x 1-1/4"

Strike Style: Square Corner

Strike Type: ASA

Strike Width: 1-1/4 In.

Subtype: Cylindrical Lock

Supplier: Dexter

Type: LOCK SETS

Ul Listing: ANSI A156.2 Series 4000, Grade 1, UL Listed

Unit of Measure: Each

Upc: 043156534760

Upc Code: 43156534760
