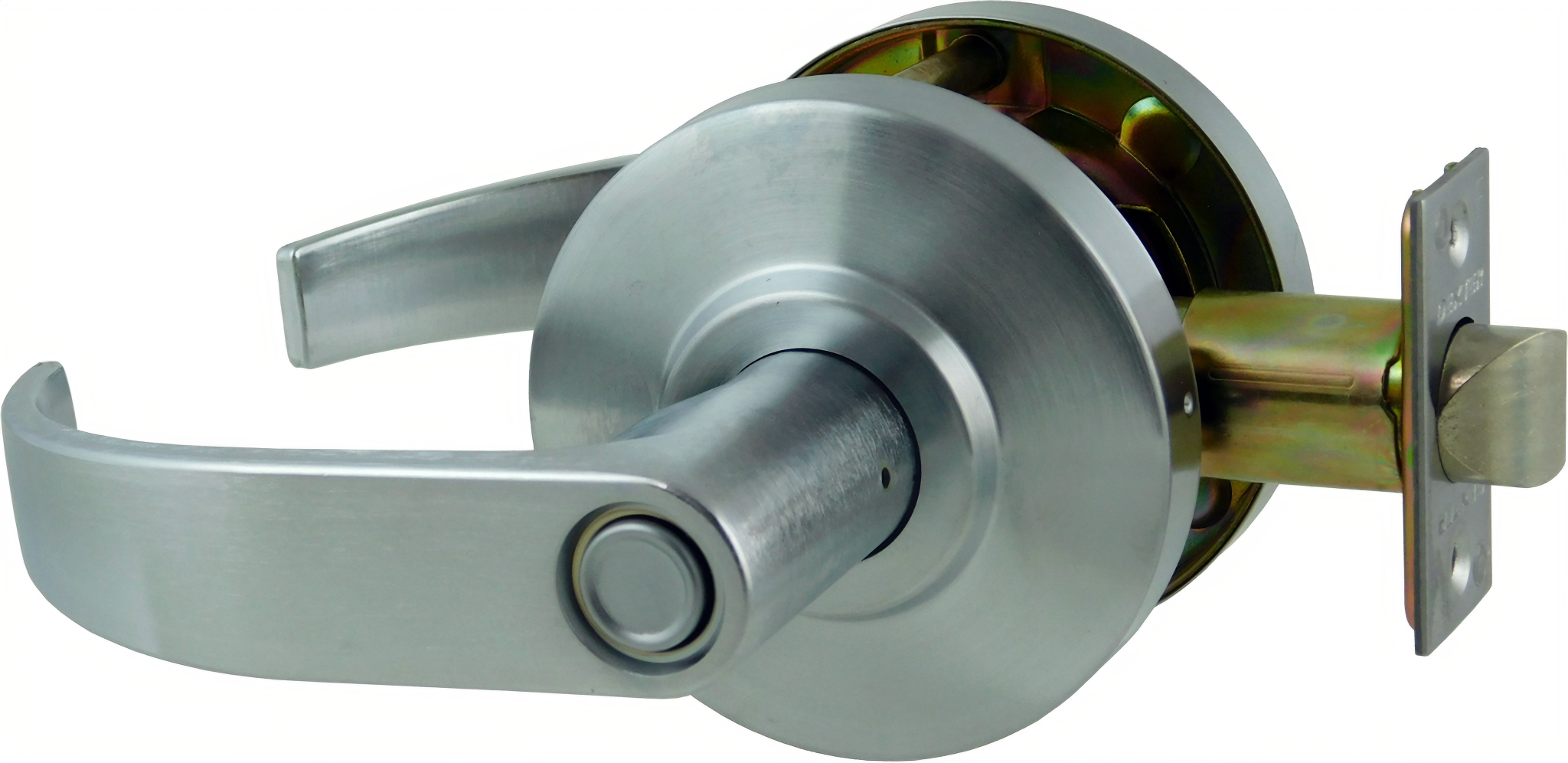

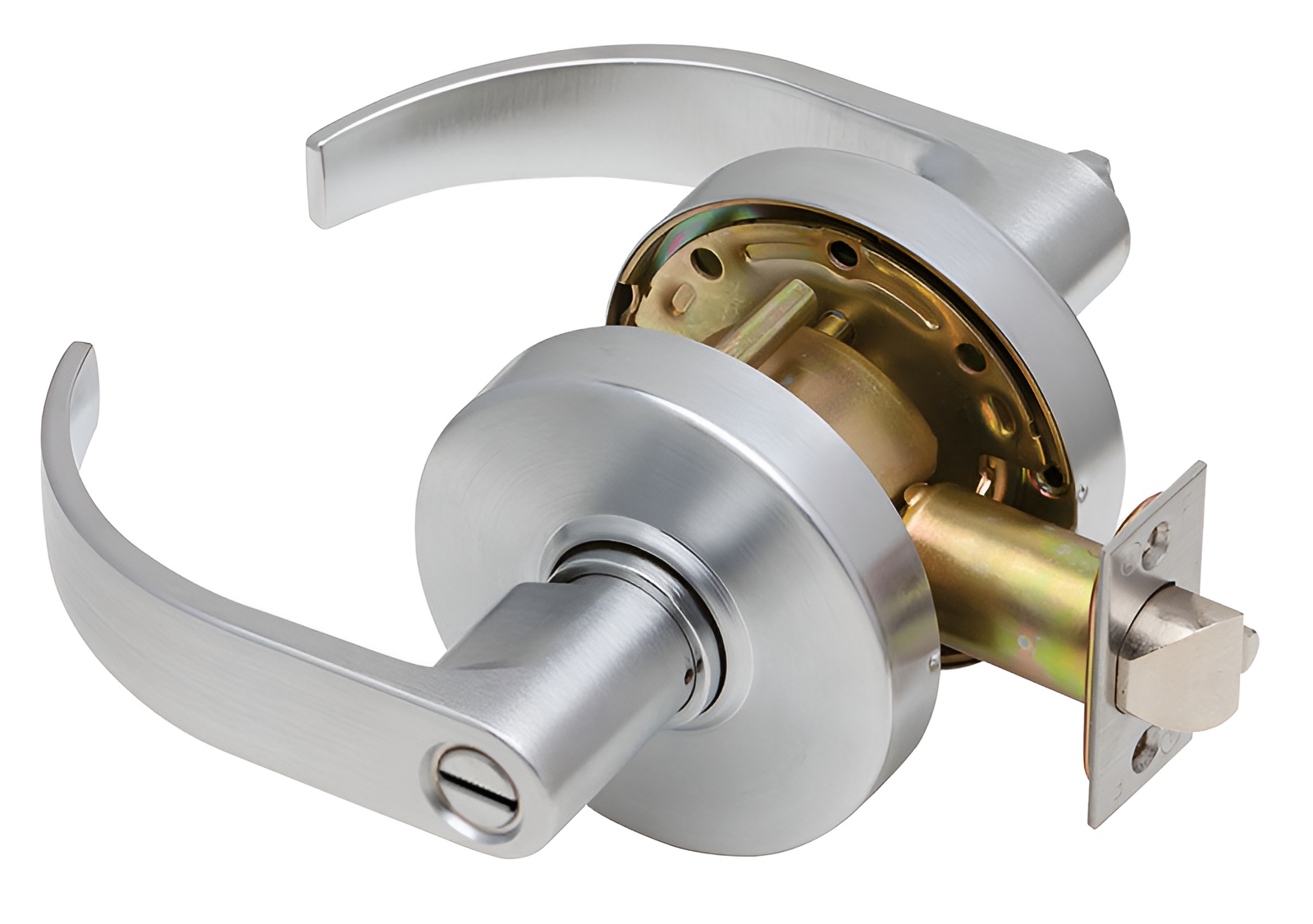

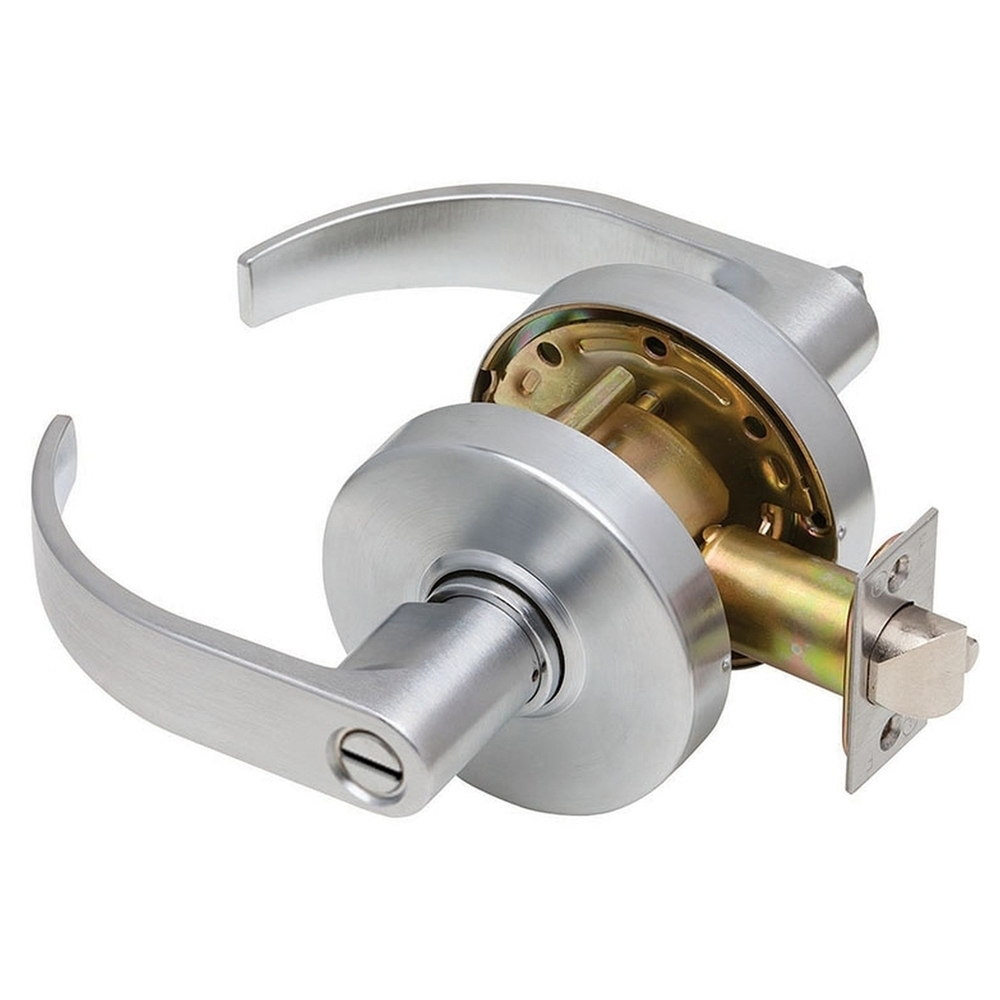

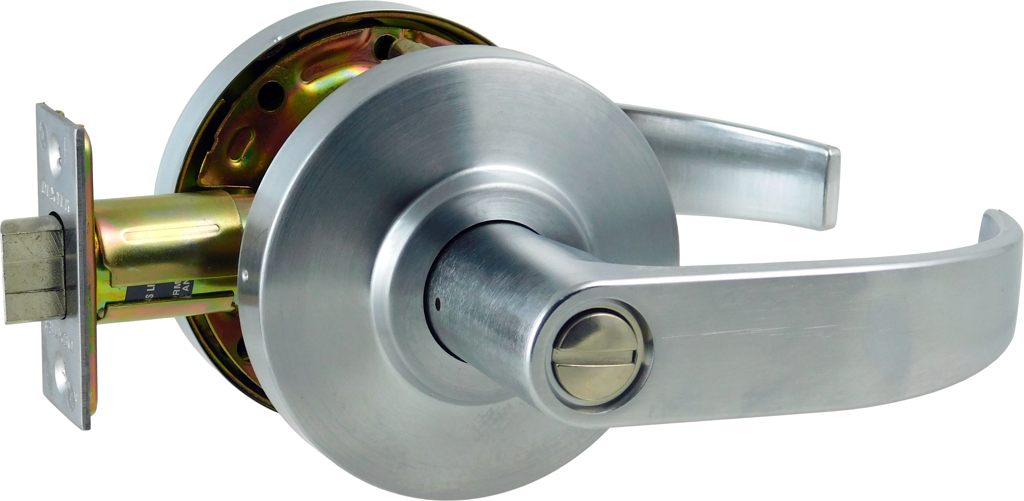

Dexter Commercial C1000PRIVC626 Privacy Grade 1 Curved Lever Clutching Cylindrical Lock offers a reliable solution for both commercial and residential applications. This lockset features a satin chrome finish that not only enhances its aesthetic appeal but also ensures durability. Designed for doors ranging from 1-3/8" to 2" thick, the C1000 series is built with a robust Grade 1 rating and is UL listed for a 3-hour fire rating, providing peace of mind in safety and security. The lock includes a 2-3/4" backset and a 1-1/8" x 2-1/4" square-corner beveled latch, ensuring a precise fit and smooth operation. The ANSI 1-1/4" x 4-7/8" curved lip strike complements its design, facilitating easy installation. Additionally, the rounded rose design creates a polished look that suits various architectural styles. With a limited 5-year mechanical warranty, you can trust the C1000PRIVC626 to deliver consistent performance. Ideal for high-traffic areas, this privacy function lock is perfect for restrooms, offices, and other spaces where privacy is essential. Choose Dexter Commercial for quality, reliability, and style in door hardware solutions.
Dexter Commercial Hardware, provides the locksmith customer with a competitive option for locks, exits, and closers. With over 200 SKUs of Grade 1, Grade 2, and residential grade products, Dexter Commercial Hardware is your solution for basic, cost constrained jobs.
Attributes
Manufacturer surcharge: $ 0.0
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: C1000-PRIV-C-626, C1000PRIVC626
Ansi: F76
Ansi Function: F76 - Privacy
Ansi Function Description: Privacy
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 7-1/4"
Box Height Fraction: 3-3/4"
Box Width Fraction: 6-3/4"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore
Cylinder Included: Yes
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: Curved Lever
Dimension: 3-1/2" Rose
Door Application: Commercial Locks
Door Bore Size: 2-1/8"
Door Range: 1-3/8" to 2"
Door Thickness: 1-3/8 In. - 2 In.
Door Thickness Max: 2"
Door Thickness Min: 1-3/8"
Finish: Satin Chrome
Finish Code: 626
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: PRIV-Privacy
Function Family: Privacy
Grade: Grade 1
Hand: Not Handed
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Knob/ Lever Design: Curved
Knob/ Lever Style: Lever
Latch Backset Dim: 2-3/4 In.
Latch Bolt Faceplate Size: 2-1/4" x 1-1/8"
Latch Bolt Type: Square Corner
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: C1000-SL-234-630
Latch Type: Spring Latch (Unguarded)
Lever Knob: Lever
Lever Knob Design: C - Curved
Lever Knob Design Family: Curved Return Lever
Lever Knob Design Name: Curved
Lever Style: Curved
Leverknob Design: Curved Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 5 Years
Lock Category: Cylindrical Lock
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Privacy, Non-Clutching
Manufacturer Function Description: Push-button locking. Can be opened from outside with small screwdriver.
Manufacturer Warranty: Limited 5 Year Mechanical Warranty
Material: Brass and Bronze
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Pack Height: 3.75"
Pack Length: 7.25"
Pack Qty: 1
Pack Volume: 183.52 in³
Pack Width: 6.75"
Product Height: 3.75"
Product Length: 7.25"
Product Width: 6.75"
Projection: 3-1/2"
Restricted Keyway: No
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16" Rose Diameter
Rose Escutcheon Dimensions: 3-7/16"
Rose/ Escutcheon Style: Rose
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: 3-7/16"
Screws: Wood/Machine Screws
Series: C1000 Series
Ship Weight: 3.5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: C1000-SL-234-630
Std Latch Type: Springlatch
Std Strike Height: 4-7/8"
Std Strike Number: C1000-ACLS
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: C1000-ACLS
Strike Size: 4-7/8" x 1-1/4"
Strike Style: Square Corner
Strike Type: ASA
Strike Width: 1-1/4 In.
Structure Function: PRIV
Structure Latch Number: C1000-SL-234-630
Structure Outside Finish: 626
Structure Outside Trim: C
Structure Series: C1000
Structure Strike Number: C1000-ACLS
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Supplier: Dexter
Type: LOCK SETS
Ul Listing: ANSI A156.2 Series 4000, Grade 1, UL Listed
Ul Listing Type: UL Listed 3 Hour
Unit of Measure: Each
Upc: 043156534753
Upc Code: 43156534753
