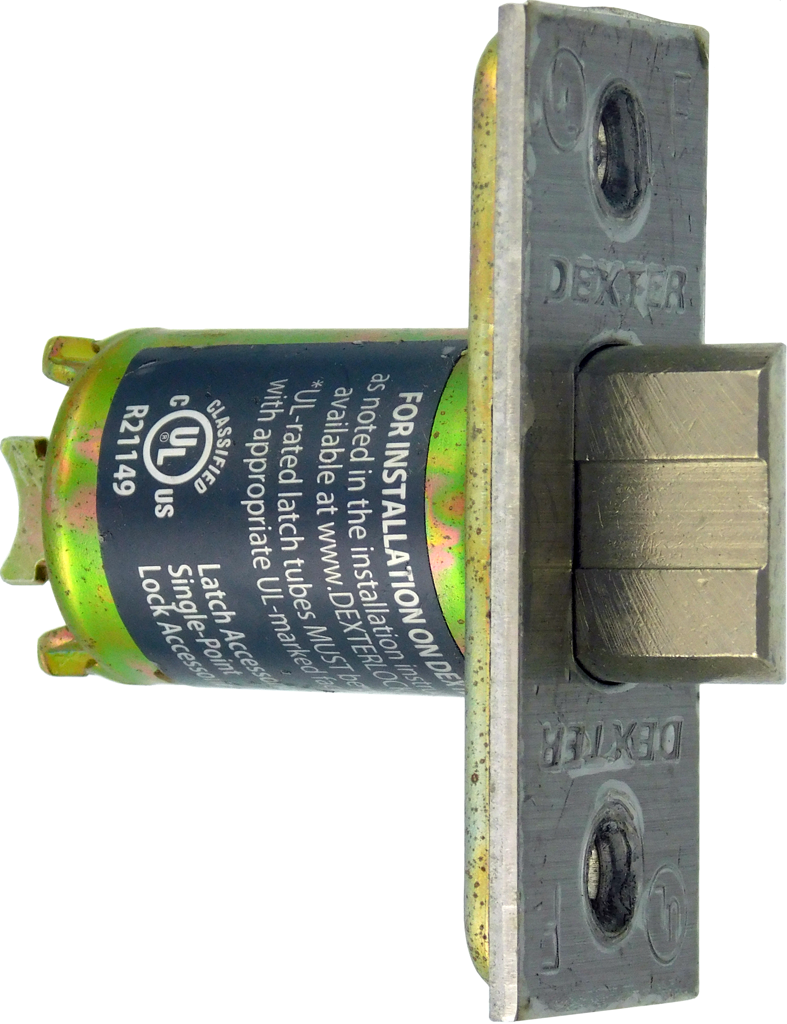

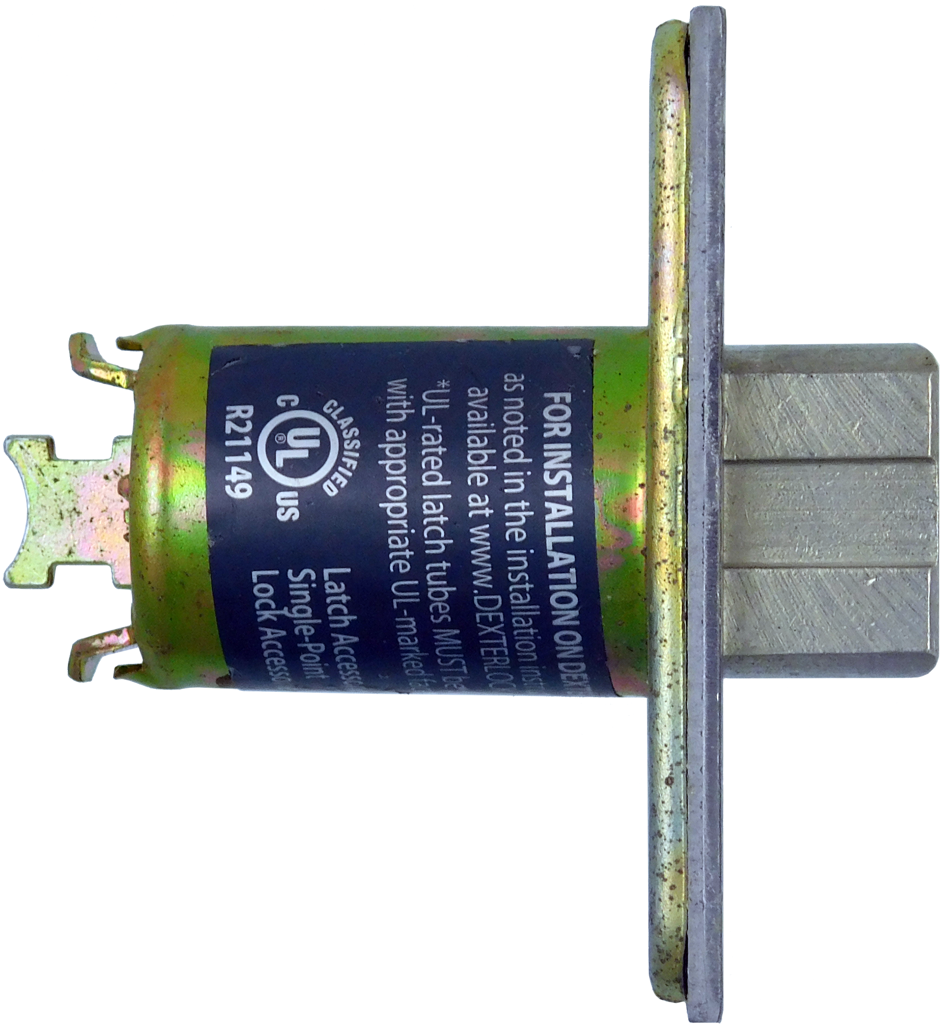

Dexter C1000-SL-630-2 3/8 BS Grade 1 Springlatch is a robust security solution designed for durability and ease of use. This Grade 1, UL-listed latch is ideal for high-traffic areas, ensuring reliable performance for up to three hours in case of fire. It fits standard door ranges from 1-3/4" to 2" and features a 2-3/4" backset option. Crafted from stainless steel with a satin finish, the C1000-SL-630-2 offers a sleek and modern appearance that complements any door. The latch includes a square-corner beveled design measuring 1-1/8" x 2-1/4", ensuring a seamless integration into your door hardware. It accommodates Schlage C 6-pin cylinders and is compatible with SFIC systems, providing versatility for various locking needs. With multiple functions available-from passage and privacy to classroom security and storeroom options-this latch caters to diverse applications. The easy-to-install design allows for quick upgrades, making it an excellent choice for both professionals and knowledgeable homeowners looking to enhance their security. Choose the Dexter C1000-SL-630-2 for a reliable, aesthetically pleasing, and highly functional locking solution that stands the test of time.

Grade 1 Springlatch 2-3/8in for C1000, 630/US32D Stainless Steel

Specifications:

• Grade 1, UL listed 3 hour
• 1-3/4" to 2" door range standard
• All functions include 1-1/8" x 2-1/4" square-corner beveled latch with 2-3/4" backset and ANSI 1-1/4" x 4-7/8" curved lip strike
• Accommodate Schlage C cylinders are 6-pin cylinders keyed 6, keyed different
• Accommodates SFIC to accept 6-pin/7-pin

Function and Lever Features:

• PASS - F75 Passage (non-clutching)
• PRIV - F76 Privacy (non-clutching)
• ENTR - F109 Entry/office (clutching)
• NC-ENTR - F109 Entry/office (non-clutching)
• CLRM - F84 Classroom (clutching)
• CSEC - Classroom security
• STRM - Storeroom (clutching)
• NC-STRM - Storeroom (non-clutching)
• ASYL - Asylum (clutching)

Trim Designs:

• R - Regular
• C - Curved

Keying:

• KDC - Conventional 6-pin, Schlage C, KD
• SFIC - Less SFIC
• KDC - 6-pin, Schlage C

Accessories:

• Latches: All latches are square corner with 1 1⁄8" x 2 1⁄4" faceplate. Grade 1 latches are square corner with 2 3⁄8" and 2 3⁄4" backsets available. Products with "234" in the description represent a 2 3⁄4" backset.
• SL: Passage, privacy. Backset: 2 3⁄8". Latch: Springlatch
• SL-234: Passage, privacy. Backset: 2 3⁄4". Latch: Springlatch
• DL: Entry/office, classroom, classroom security, storeroom. Backset: 2 3⁄8". Latch: Deadlatch
• DL-234: Entry/office, classroom, classroom security, storeroom. Backset: 2 3⁄4". Latch: Deadlatch
• Strikes: Radius corner, full lip strike. 1 3⁄4" x 2 1⁄4".

Finishes:

• 613 - Dark Bronze
• 626 - Satin Chrome
