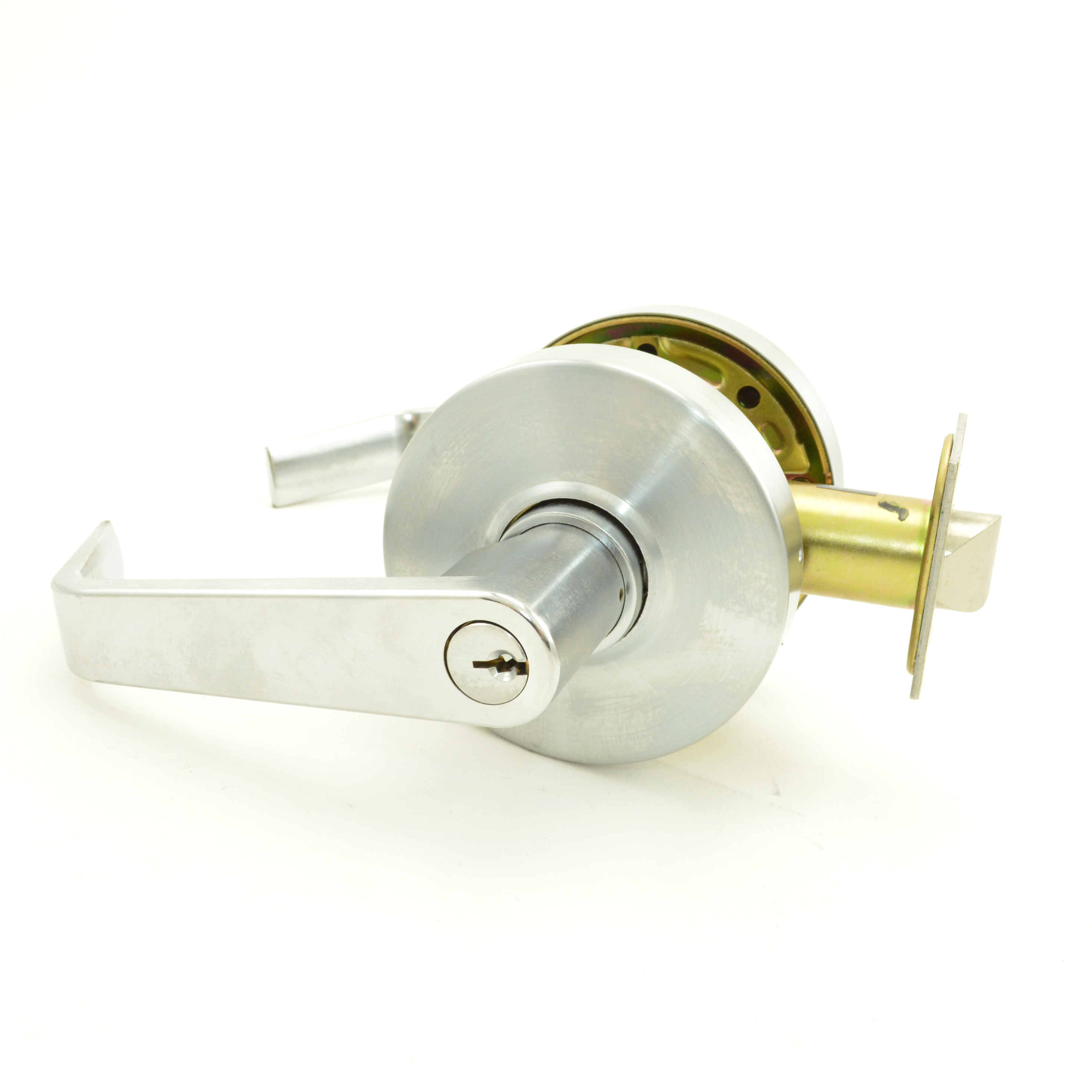

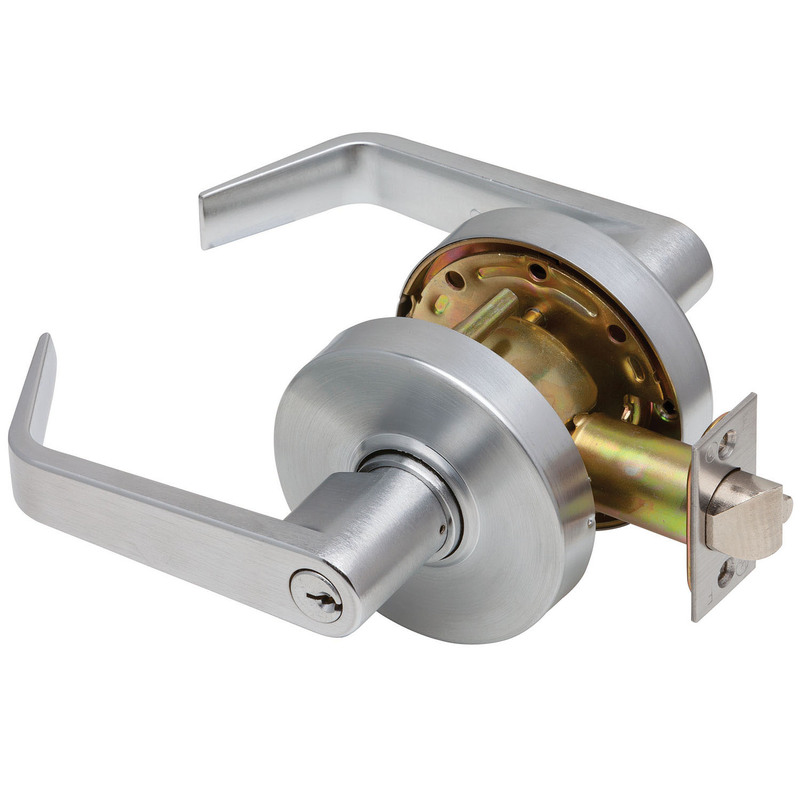

Dexter Commercial C1000STRMR626KDC Storeroom Grade 1 Regular Lever Clutching Cylindrical Lock offers a robust solution for securing storerooms and other access-controlled areas. This lock features a durable satin chrome finish that not only enhances its aesthetic appeal but also ensures longevity in high-traffic environments. Designed for doors ranging from 1-3/8" to 2" in thickness, it accommodates a wide variety of applications. With a Grade 1 rating and UL listing for 3-hour fire resistance, this lock meets stringent safety standards, providing peace of mind for building professionals and homeowners alike. The 2-3/4" backset and ANSI strike ensure a secure fit and reliable operation, while the 1-1/8" x 2-1/4" square-corner beveled latch enhances functionality. The lock's clutching mechanism allows for smooth operation, ensuring that doors remain secure without sacrificing ease of use. It is equipped with a Schlage C keyway and a 6-pin cylinder for enhanced security. The 3-1/2" rose and round rose escutcheon design blend seamlessly with various architectural styles. Backed by a limited 5-year mechanical warranty, the Dexter C1000 series lock is a dependable choice for both commercial and residential applications.
Dexter Commercial Hardware, provides the locksmith customer with a competitive option for locks, exits, and closers. With over 200 SKUs of Grade 1, Grade 2, and residential grade products, Dexter Commercial Hardware is your solution for basic, cost constrained jobs.
Attributes
Manufacturer surcharge: $ 0.0
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: C1000-STRM-R-626-KDC, C1000STRMR626KDC
Ansi: F86
Ansi Function: F86 - Storeroom
Ansi Function Description: Storeroom
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 7-1/4"
Box Height Fraction: 3-3/4"
Box Width Fraction: 6-3/4"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore
Cylinder Included: Yes
Cylinder Type: 6-Pin Cylinder
Cylinders Present: Single Cylinder
Design: Regular Lever
Dimension: 3-1/2" Rose
Door Application: Commercial Locks
Door Bore Size: 2-1/8"
Door Range: 1-3/8" to 2"
Door Thickness: 1-3/8 In. - 2 In.
Door Thickness Max: 2"
Door Thickness Min: 1-3/8"
Finish: Satin Chrome
Finish Code: 626
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: STRM-Storeroom
Function Family: Storeroom
Grade: Grade 1
Hand: Not Handed
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Keyway: C
Knob/ Lever Design: Regular
Knob/ Lever Style: Lever
Latch Backset Dim: 2-3/4 In.
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/8"
Latch Bolt Type: Deadlatch
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: C1000-DL-234-630
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: R - Regular
Lever Knob Design Family: Straight Return Lever
Lever Knob Design Name: Regular
Lever Style: Regular
Leverknob Design: Regular Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 5 Years
Lock Category: Cylindrical Lock
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Storeroom, Clutching
Manufacturer Function Description: Outside lever is fixed. Entrance by key only. Inside lever always unlocked
Manufacturer Warranty: Limited 5 Year Mechanical Warranty
Material: Brass and Bronze
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Origin: Mexico
PO date: 2024-09-05
Pack Height: 3.75"
Pack Length: 7.25"
Pack Qty: 1
Pack Volume: 183.52 in³
Pack Width: 6.75"
Pins: 6
Product Height: 3.75"
Product Length: 7.25"
Product Width: 6.75"
Projection: 2-15/16"
Restricted Keyway: No
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16" Rose Diameter
Rose Escutcheon Dimensions: 3-7/16"
Rose/ Escutcheon Style: Rose
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: 3-7/16"
Screws: Wood/Machine Screws
Series: C1000 Series
Ship Weight: 3.5 lbs.
Std Keyway: C
Std Latch Backset Dim: 2-3/4"
Std Latch Number: C1000-DL-234-630
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: C1000-ACLS
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: C1000-ACLS
Strike Size: 4-7/8" x 1-1/4"
Strike Style: Square Corner
Strike Type: ASA
Strike Width: 1-1/4 In.
Structure Cylinder: KDC
Structure Function: STRM
Structure Latch Number: C1000-DL-234-630
Structure Outside Finish: 626
Structure Outside Trim: R
Structure Series: C1000
Structure Strike Number: C1000-ACLS
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Supplier: Dexter
Type: Mechanical Commercial Locksets
Ul Listing: ANSI A156.2 Series 4000, Grade 1, UL Listed
Ul Listing Type: UL Listed 3 Hour
Unit of Measure: Each
Upc: 043156535033
Upc Code: 43156535033
