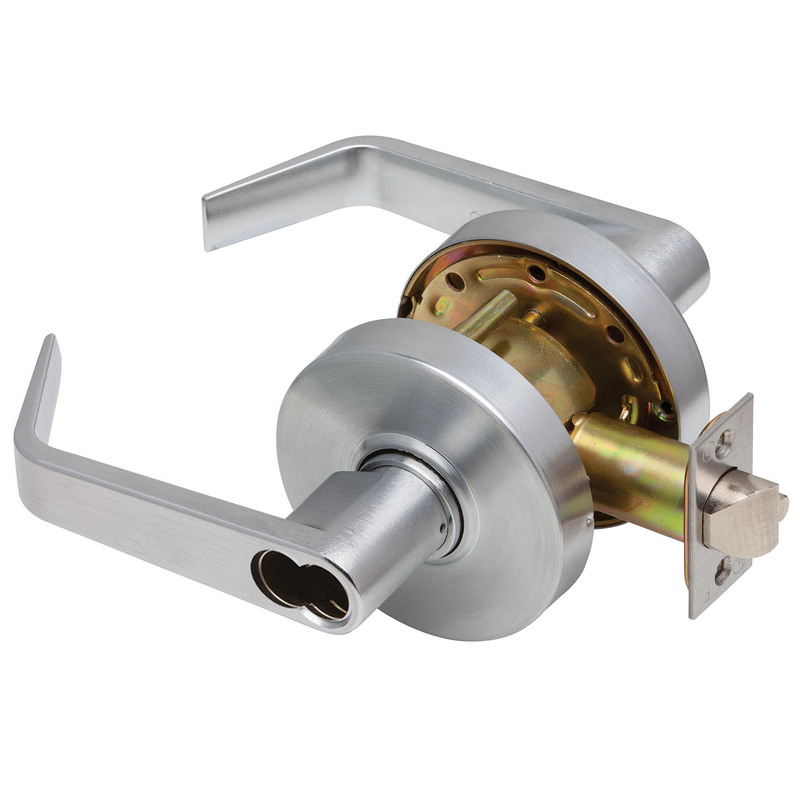

Dexter Commercial C1000STRMR626SFIC Storeroom Grade 1 Regular Lever Clutching Cylindrical Lock is an ideal choice for those seeking durability and reliability in a storeroom application. This Grade 1 lockset is UL listed for a 3-hour fire rating, ensuring safety and compliance in commercial settings. Designed to fit doors ranging from 1-3/8" to 2" in thickness, it features a 2-3/4" backset and a standard 2-1/8" crossbore size, making installation straightforward and efficient. The lock incorporates a square-corner beveled latch with dimensions of 1-1/8" x 2-1/4", paired with an ANSI curved lip strike measuring 1-1/4" x 4-7/8". Its satin chrome finish not only enhances aesthetics but also provides a resilient surface against wear. The regular lever design is user-friendly, ensuring easy access while maintaining security. With a limited 5-year mechanical warranty, Dexter Commercial demonstrates confidence in their product's longevity. Made from quality brass and bronze materials, the C1000 series lockset is a practical solution for cost-conscious projects without compromising on performance or style. Whether for new installations or replacements, this lockset meets the demands of modern commercial architecture.
Dexter Commercial Hardware, provides the locksmith customer with a competitive option for locks, exits, and closers. With over 200 SKUs of Grade 1, Grade 2, and residential grade products, Dexter Commercial Hardware is your solution for basic, cost constrained jobs.
Attributes
Manufacturer surcharge: $ 0.0
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: C1000-STRM-R-626-SFIC, C1000STRMR626SFIC
Ansi: F86
Ansi Function: F86 - Storeroom
Ansi Function Description: Storeroom
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 7-1/4"
Box Height Fraction: 3-3/4"
Box Width Fraction: 6-3/4"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore
Cylinder Included: No
Cylinder Type: SFIC Cylinder
Cylinders Present: Single Cylinder
Design: Regular Lever
Dimension: 3-1/2" Rose
Door Application: Commercial Locks
Door Bore Size: 2-1/8"
Door Range: 1-3/8" to 2"
Door Thickness: 1-3/8 In. - 2 In.
Door Thickness Max: 2"
Door Thickness Min: 1-3/8"
Finish: Satin Chrome
Finish Code: 626
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: STRM-Storeroom
Function Family: Storeroom
Grade: Grade 1
Hand: Not Handed
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Knob/ Lever Design: Regular
Knob/ Lever Style: Lever
Latch Backset Dim: 2-3/4 In.
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/8"
Latch Bolt Type: Deadlatch
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: C1000-DL-234-630
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: R - Regular
Lever Knob Design Family: Straight Return Lever
Lever Knob Design Name: Regular
Lever Style: Regular
Leverknob Design: Regular Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 5 Years
Lock Category: Cylindrical Lock
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Storeroom, Clutching
Manufacturer Function Description: Outside lever is fixed. Entrance by key only. Inside lever always unlocked
Manufacturer Warranty: Limited 5 Year Mechanical Warranty
Material: Brass and Bronze
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
Num Pins: 6/7
Order_ Qty: 1
Origin: Mexico
PO date: 2024-10-09
Pack Height: 3.75"
Pack Length: 7.25"
Pack Qty: 1
Pack Volume: 183.52 in³
Pack Width: 6.75"
Product Height: 3.75"
Product Length: 7.25"
Product Width: 6.75"
Projection: 2-15/16"
Restricted Keyway: No
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16" Rose Diameter
Rose Escutcheon Dimensions: 3-7/16"
Rose/ Escutcheon Style: Rose
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: 3-7/16"
Screws: Wood/Machine Screws
Series: C1000 Series
Ship Weight: 3.5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: C1000-DL-234-630
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: C1000-ACLS
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: C1000-ACLS
Strike Size: 4-7/8" x 1-1/4"
Strike Style: Square Corner
Strike Type: ASA
Strike Width: 1-1/4 In.
Structure Cylinder: SFIC
Structure Function: STRM
Structure Latch Number: C1000-DL-234-630
Structure Outside Finish: 626
Structure Outside Trim: R
Structure Series: C1000
Structure Strike Number: C1000-ACLS
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Supplier: Dexter
Type: LOCK SETS
Ul Listing: ANSI A156.2 Series 4000, Grade 1, UL Listed
Ul Listing Type: UL Listed 3 Hour
Unit of Measure: Each
Upc: 043156535057
Upc Code: 43156535057
