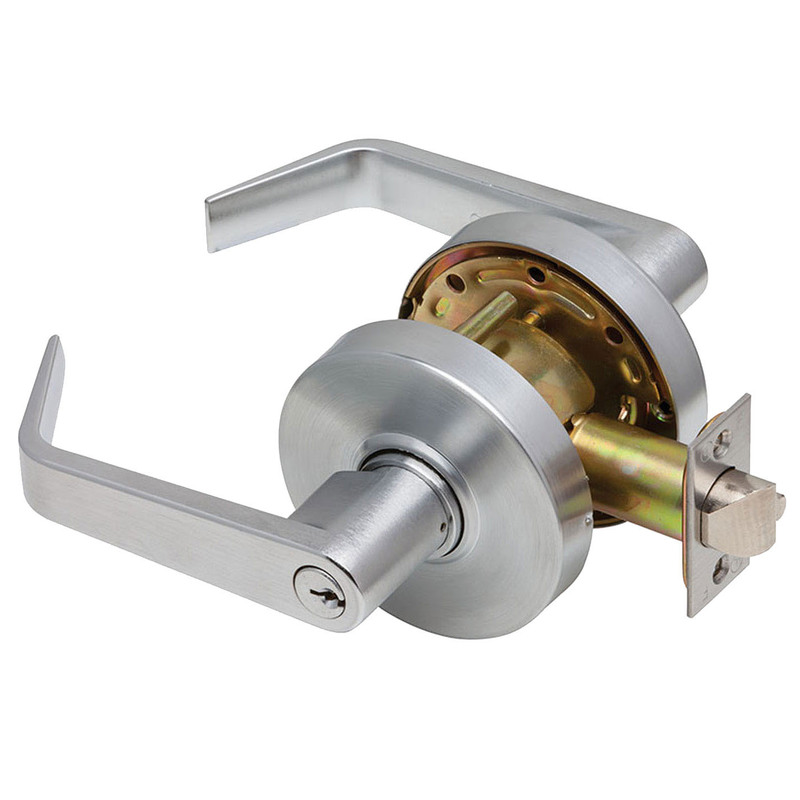

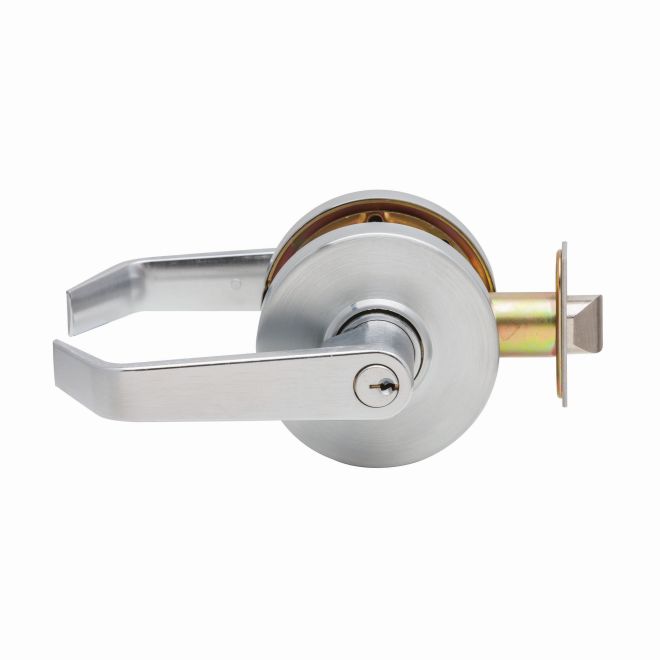

Dexter Commercial C1000NCSTRMR626KDC Storeroom Grade 1 Regular Lever Non-Clutching Cylindrical Lock offers exceptional durability and security for commercial applications. This Grade 1 lock is UL listed for a 3-hour fire rating, ensuring reliable performance in critical situations. Designed to accommodate doors ranging from 1-3/8" to 2" thick, it features a 2-3/4" backset with a 1-1/8" x 2-1/4" square-corner beveled latch, making installation straightforward. The satin chrome finish not only enhances its aesthetic appeal but also provides excellent resistance to wear and corrosion. The C keyway allows for compatibility with Schlage keys, ensuring that access control meets your specific needs. With a round rose design and a 3-1/2" rose dimension, this lock seamlessly integrates into various door styles. The ANSI 1-1/4" x 4-7/8" curved lip strike enhances the lock's overall functionality and security. Additionally, the limited 5-year mechanical warranty reflects Dexter's commitment to quality and performance. Ideal for storerooms and other secure areas, the C1000NCSTRMR626KDC is a reliable choice for building professionals seeking a balance of cost-effectiveness and high-grade security.
Dexter Commercial Hardware, provides the locksmith customer with a competitive option for locks, exits, and closers. With over 200 SKUs of Grade 1, Grade 2, and residential grade products, Dexter Commercial Hardware is your solution for basic, cost constrained jobs.
Attributes
Manufacturer surcharge: $ 0.0
Ansi: F86
Ansi Function: F86 - Storeroom
Ansi Function Description: Storeroom
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 7-1/4"
Box Height Fraction: 3-3/4"
Box Width Fraction: 6-3/4"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Design: Regular Lever
Dimension: 3-1/2" Rose
Door Range: 1-3/8" to 2"
Door Thickness: 1-3/8 In. - 2 In.
Finish: Satin Chrome
Finish Code: 626
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: STRM-Storeroom
Function Family: Storeroom
Grade: Grade 1
Hand: Not Handed
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Keyway: C
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: C1000-DL-234-630
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: R - Regular Lever
Lever Knob Design Family: Straight Return Lever
Lever Knob Design Name: Regular
Leverknob Design: Regular Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 5 Years
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Storeroom, Non-Clutching
Manufacturer Function Description: Outside lever is fixed. Entrance by key only. Inside lever always unlocked
Manufacturer Warranty: Limited 5 Year Mechanical Warranty
Material: Brass and Bronze
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Origin: Mexico
Pack Height: 3.75"
Pack Length: 7.25"
Pack Qty: 1
Pack Volume: 183.52 in³
Pack Width: 6.75"
Pins: 6
Product Height: 3.75"
Product Length: 7.25"
Product Width: 6.75"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16" Rose Diameter
Rose Escutcheon Dimensions: 3-7/16"
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: 3-7/16"
Screws: Wood/Machine Screws
Series: C1000 Series
Ship Weight: 3.5 lbs.
Std Keyway: C
Std Latch Backset Dim: 2-3/4"
Std Latch Number: C1000-DL-234-630
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: C1000-ACLS
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: C1000-ACLS
Strike Type: ASA
Strike Width: 1-1/4 In.
Structure Cylinder: KDC
Structure Function: NC-STRM
Structure Latch Number: C1000-DL-234-630
Structure Outside Finish: 626
Structure Outside Trim: R
Structure Series: C1000
Structure Strike Number: C1000-ACLS
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Ul Listing: ANSI A156.2 Series 4000, Grade 1, UL Listed
Ul Listing Type: UL Listed 3 Hour
Unit of Measure: Each
Upc: 043156557882
Upc Code: 43156535033
