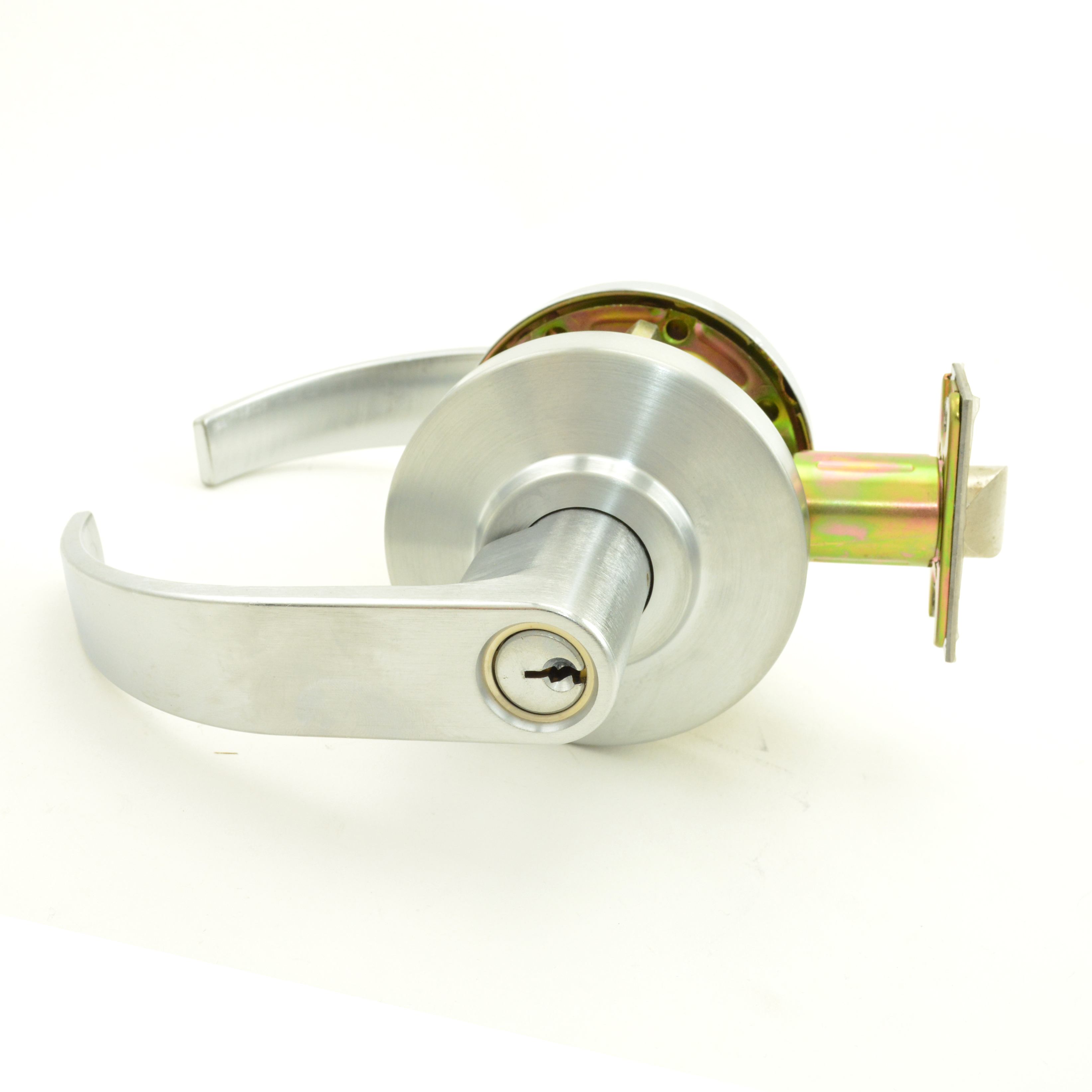

Dexter Commercial C2000CLENTRC626KDC Entry / Office Grade 2 Curved Lever Clutching Cylindrical Lock offers a robust solution for both commercial and residential applications. Designed for reliability, this lockset features a Schlage C keyway and is UL listed for a three-hour fire rating, ensuring safety and peace of mind. Its ANSI strike complements the lock's durability, making it a practical choice for high-traffic areas. With a backset of 2-3/4 inches and suitable for doors ranging from 1-3/8 inches to 1-3/4 inches thick, this cylindrical lock accommodates a variety of installation needs. The elegant curved lever design not only enhances aesthetic appeal but also provides ease of use, making it ideal for entry and office spaces. The 3-5/16 inch round rose adds a touch of sophistication while maintaining a secure fit. Crafted from high-quality brass and bronze materials, the C2000 Series lockset promises longevity and performance. It comes with a limited five-year mechanical warranty, underscoring Dexter Commercial's commitment to quality. Choose the Dexter C2000CLENTRC626KDC for an efficient and stylish locking solution that meets your architectural hardware needs.
Dexter Commercial Hardware, provides the locksmith customer with a competitive option for locks, exits, and closers. With over 200 SKUs of Grade 1, Grade 2, and residential grade products, Dexter Commercial Hardware is your solution for basic, cost constrained jobs.
Attributes
Alternate Codes: C2000-CL-ENTR-C-626-KDC, C2000CLENTRC626KDC
Ansi: F109
Ansi Function: F109 - Entry/Office
Ansi Function Description: Entry/Office
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bolt Protection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 7-1/4"
Box Height Fraction: 3-3/4"
Box Width Fraction: 6-3/4"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Certifications: UL Listed 3 Hour
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore
Cylinder Included: Yes
Cylinder Type: 6-Pin Cylinder
Cylinders Present: Single Cylinder
Design: Curved Lever
Dimension: 3-5/16" Rose
Door Application: Commercial Locks
Door Bore Size: 2-1/8"
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8" to 1-3/4"
Door Thickness Max: 1-3/4"
Door Thickness Min: 1-3/8"
Finish: Satin Chrome
Finish Code: 626
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: ENTR-Entry/Office
Function Family: Entrance
Grade: Grade 2
Hand: Non-Handed
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Keyway: C
Knob/ Lever Design: Curved
Knob/ Lever Style: Clutched Lever
Latch Backset Dim: 2-3/4"
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/4"
Latch Bolt Throw: 1/2"
Latch Bolt Type: Deadlatch
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: C2000-DL-234-630
Latch Type: Deadlatch
Lever Knob: Lever
Lever Knob Design: Curved Lever
Lever Knob Design Family: Curved Return Lever
Lever Knob Design Name: Curved
Lever Style: Curved
Leverknob Design: Curved Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 5 Years
Lock Category: Cylindrical Lock
Lock Face Size: 1" x 2-1/4"
Manufacturer Function: Entrance, Clutching
Manufacturer Function Description: Turn/push-button locking: pushing and turning button locks the outside lever, requiring use of a key until button is manually unlocked.
Manufacturer Warranty: Limited 5 Year Mechanical Warranty
Material: Brass and Bronze
Maximum Door Thickness: 1-3/4"
Mechanical Option: Clutching
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Origin: Mexico
Pack Height: 3.75"
Pack Length: 7.25"
Pack Qty: 1
Pack Volume: 183.52 in³
Pack Width: 6.75"
Pins: 6
Product Height: 3.75"
Product Length: 7.25"
Product Width: 6.75"
Projection: 3-1/2"
Restricted Keyway: No
Rose Escutcheon: Rose
Rose Escutcheon Design: 3" Rose Diameter
Rose Escutcheon Dimensions: 3"
Roseescutcheon Design: 3" Rose Diameter
Roseescutcheon Dimensions: 3"
Screws: Wood/Machine Screws
Series: C2000 Series
Ship Weight: 3.5 lbs.
Std Keyway: C
Std Latch Backset Dim: 2-3/4"
Std Latch Number: C2000-DL-234-630
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: C2000-ACLS
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: C2000-ACLS
Strike Size: 4-7/8" x 1-1/4"
Strike Style: Square Corner
Strike Type: ANSI Curved Lip Strike
Strike Width: 1-1/4"
Structure Cylinder: KDC
Structure Function: CL-ENTR
Structure Latch Number: C2000-DL-234-630
Structure Outside Finish: 626
Structure Outside Trim: C
Structure Series: C2000
Structure Strike Number: C2000-ACLS
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Supplier: Dexter Commercial
Type: LOCK SETS
Ul Listing: ANSI A156.2 Series 4000, Grade 2, UL Listed
Ul Listing Type: UL Listed 3 Hour
Unit of Measure: Each
Upc: 043156642946
