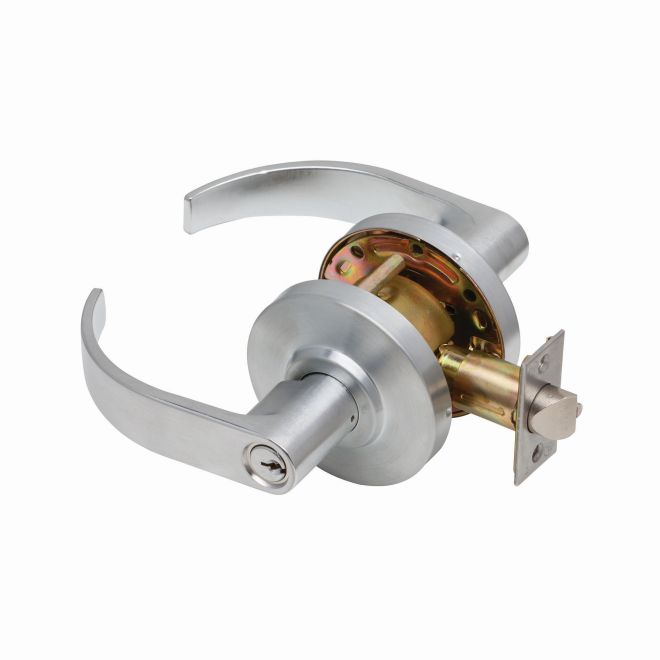

Dexter Commercial C2000CLSTRMC626KDC Storeroom Grade 2 Curved Lever Clutching Cylindrical Lock offers a robust solution for securing storerooms while maintaining a stylish and functional design. This Grade 2 lockset is UL listed for 3-hour fire ratings, ensuring durability and compliance with safety standards. Designed to accommodate doors ranging from 1-3/8" to 1-3/4" in thickness, it features a satin chrome finish that not only enhances its aesthetic appeal but also provides resistance to wear and tarnishing. The storeroom clutching function (F86) allows for easy access while restricting exit without a key, making it ideal for high-traffic areas. With a 2-3/4" backset and a 2-1/8" crossbore size, installation is straightforward and convenient. The lock includes a Schlage C keyway, ensuring compatibility with a variety of existing key systems. Constructed from brass and bronze, the C2000CLSTRMC626KDC also features a round rose design and an ANSI strike, providing both style and security. Backed by a limited 5-year mechanical warranty, this lockset is a dependable choice for commercial environments. Trust Dexter Commercial for quality hardware that meets your locking needs efficiently and effectively.
Dexter Commercial Hardware, provides the locksmith customer with a competitive option for locks, exits, and closers. With over 200 SKUs of Grade 1, Grade 2, and residential grade products, Dexter Commercial Hardware is your solution for basic, cost constrained jobs.
Attributes
Alternate Codes: C2000-CL-STRM-C-626-KDC, C2000CLSTRMC626KDC
Ansi: F86
Ansi Function: F86 - Storeroom
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 7-1/4"
Box Height Fraction: 3-3/4"
Box Width Fraction: 6-3/4"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Certifications: UL Listed 3 Hour
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore
Cylinder Included: Yes
Cylinder Type: 6-Pin Cylinder
Cylinders Present: Single Cylinder
Design: Curved Lever
Dimension: 3-5/16" Rose
Door Application: Commercial Locks
Door Bore Size: 2-1/8"
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8" to 1-3/4"
Door Thickness Max: 1-3/4"
Door Thickness Min: 1-3/8"
Finish: Satin Chrome
Finish Code: 626
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Storeroom (F86)
Function Family: Storeroom
Grade: Grade 2
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Keyway: Schlage C Keyway
Knob/ Lever Design: Curved
Knob/ Lever Style: Clutched Lever
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/4"
Latch Bolt Throw: 1/2"
Latch Bolt Type: Deadlatch
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob: Lever
Lever Knob Design: Curved Lever
Lever Knob Design Name: Curved
Lever Style: Curved
Leverknob Design: Curved Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 5 Years
Lock Category: Cylindrical Lock
Lock Face Size: 1" x 2-1/4"
Manufacturer Function: Storeroom, Clutching
Manufacturer Warranty: Limited 5 Year Mechanical Warranty
Material: Brass and Bronze
Maximum Door Thickness: 1-3/4"
Mechanical Option: Clutching
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Of Keys: 2
Order_ Qty: 1
Origin: Mexico
Pack Height: 3.75"
Pack Length: 7.25"
Pack Qty: 1
Pack Volume: 183.52 in³
Pack Width: 6.75"
Pins: 6
Product Height: 3.75"
Product Length: 7.25"
Product Width: 6.75"
Projection: 3-1/2"
Restricted Keyway: No
Rose Escutcheon: Rose
Rose Escutcheon Design: Round Rose
Roseescutcheon Design: 3" Rose Diameter
Roseescutcheon Dimensions: 3"
Screws: Wood/Machine Screws
Series: C2000 Series
Ship Weight: 3.5 lbs.
Std Keyway: C
Std Latch Backset Dim: 2-3/4"
Std Latch Number: C2000-DL-234-630
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: C2000-ACLS
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Size: 4-7/8" x 1-1/4"
Strike Style: Square Corner
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Supplier: Dexter Commercial
Type: LOCK SETS
Ul Listing: ANSI A156.2 Series 4000, Grade 2, UL Listed
Ul Listing Type: UL Listed 3 Hour
Unit of Measure: Each
Upc: 043156643103
