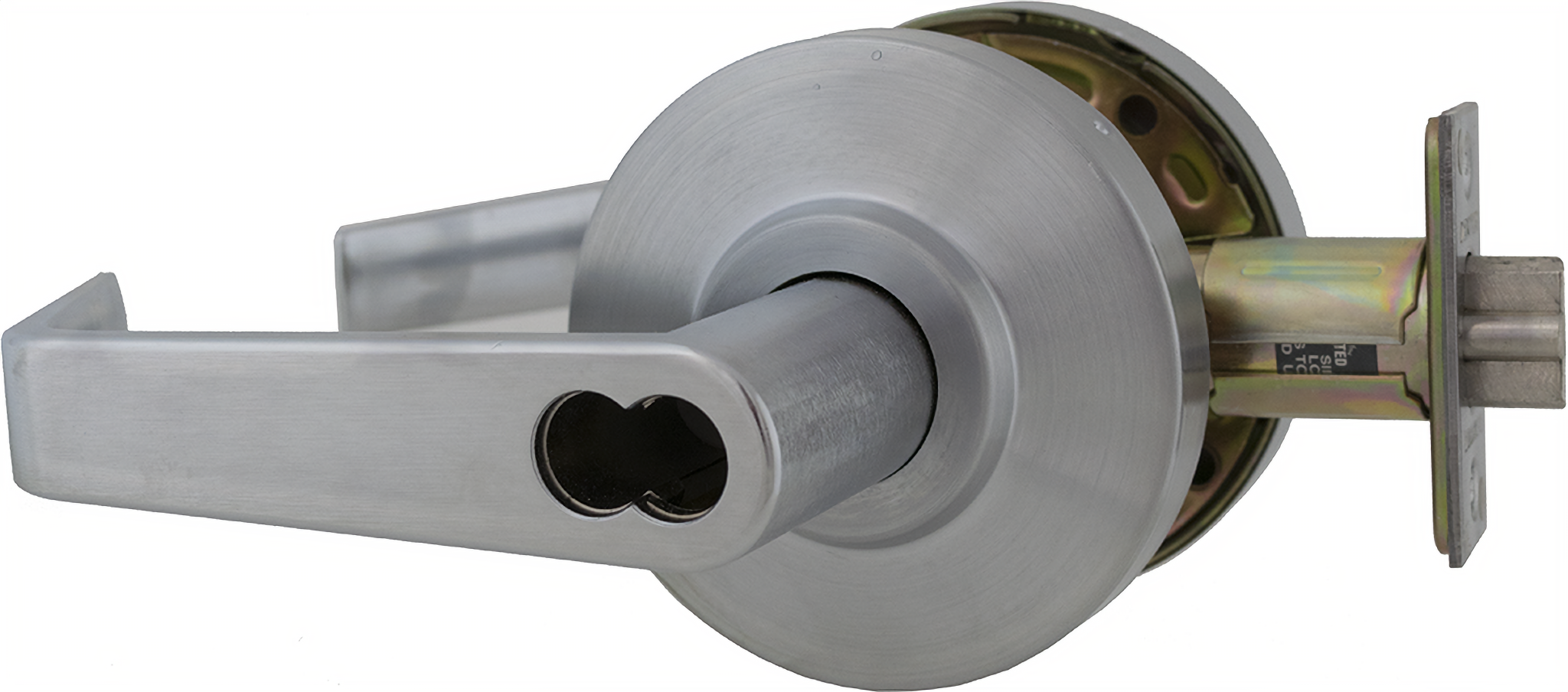

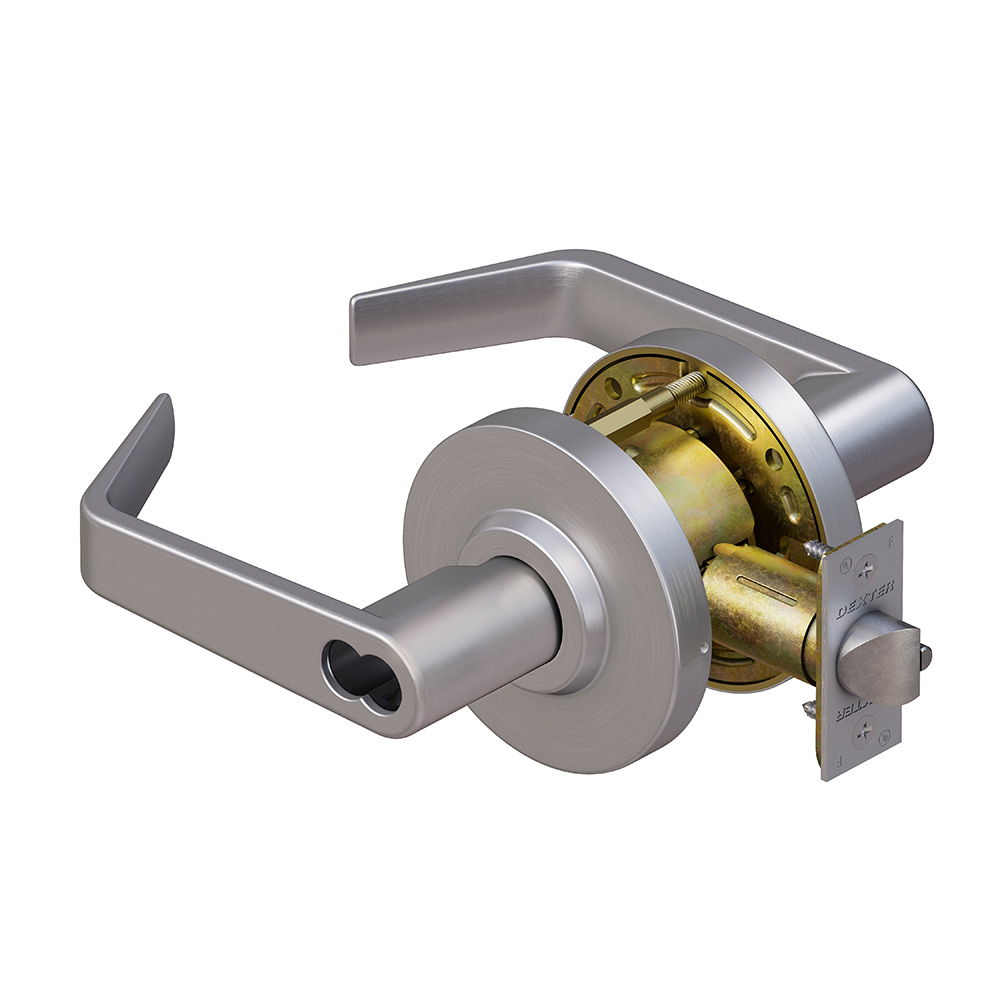

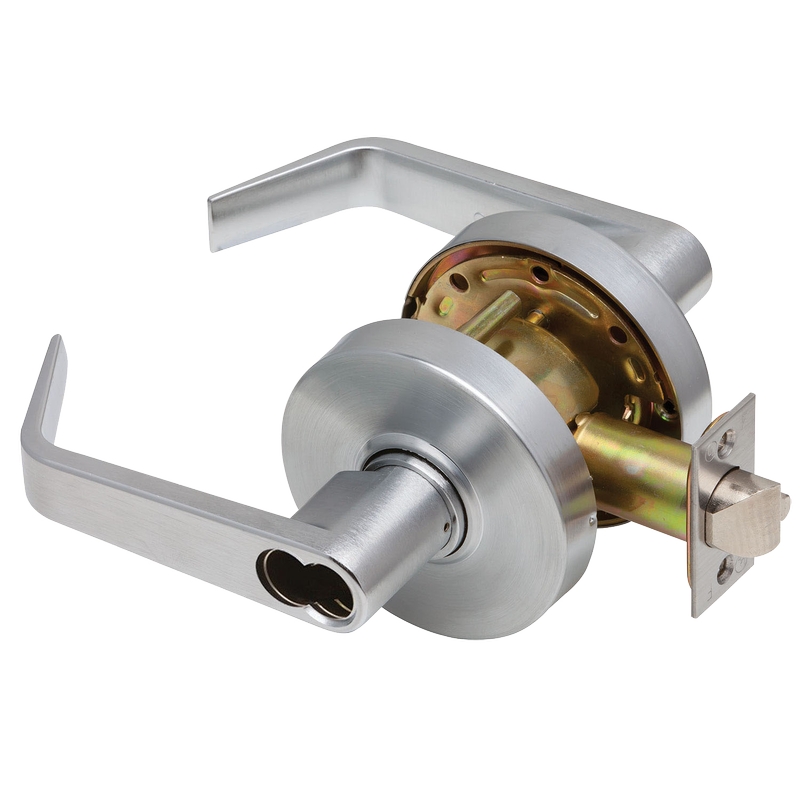

Dexter Commercial C2000CLSTRMR626SFIC Storeroom Grade 2 Regular Lever Clutching Cylindrical Lock offers a reliable and secure locking solution designed for commercial applications. This robust lock is UL listed for three-hour fire ratings, ensuring safety and peace of mind. The storeroom clutching function allows for controlled access, making it ideal for areas requiring restricted entry. Designed to fit standard door thicknesses ranging from 1-3/8" to 1-3/4", the C2000 series lock features a 2-3/4" backset and a 2-1/8" bore size, ensuring compatibility with various door installations. The lock's satin chrome finish not only enhances its aesthetic appeal but also adds durability against wear and corrosion. Further, the lock includes a round rose design and ANSI strike, providing a sleek, professional look suitable for any commercial setting. Crafted from high-quality brass and bronze materials, it combines strength with a limited five-year mechanical warranty for added assurance. With a latch faceplate dimension of 1-1/8" x 2-1/4", this lock delivers both functionality and style. As a versatile option within the Dexter Commercial lineup, the C2000CLSTRMR626SFIC is an excellent choice for locksmiths and building professionals seeking dependable hardware solutions.
Dexter Commercial Hardware, provides the locksmith customer with a competitive option for locks, exits, and closers. With over 200 SKUs of Grade 1, Grade 2, and residential grade products, Dexter Commercial Hardware is your solution for basic, cost constrained jobs.
Attributes
Alternate Codes: C2000-CL-STRM-R-626-SFIC, C2000CLSTRMR626SFIC
Ansi: F86
Ansi Function: F86 - Storeroom
Ansi Function Description: Storeroom
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 7-1/4"
Box Height Fraction: 3-3/4"
Box Width Fraction: 6-3/4"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Certifications: UL Listed 3 Hour
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore
Cylinder Included: No
Cylinder Type: SFIC Cylinder
Cylinders Present: Single Cylinder
Design: Regular Lever
Dimension: 3-5/16" Rose
Door Application: Commercial Locks
Door Bore Size: 2-1/8"
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8 In. - 1-3/4 In.
Door Thickness Max: 1-3/4"
Door Thickness Min: 1-3/8"
Finish: Satin Chrome
Finish Code: 626
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: STRM-Storeroom
Function Family: Storeroom
Grade: Grade 2
Hand: Non-handed
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Knob/ Lever Design: Regular
Knob/ Lever Style: Clutched Lever
Latch Backset Dim: 2-3/4 In.
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/4"
Latch Bolt Throw: 1/2"
Latch Bolt Type: Deadlatch
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: C2000-DL-234-630
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: R - Regular
Lever Knob Design Family: Straight Return Lever
Lever Knob Design Name: Regular
Lever Style: Regular
Leverknob Design: Regular Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 5 Years
Lock Category: Cylindrical Lock
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Storeroom, Clutching
Manufacturer Function Description: Outside lever is fixed. Entrance by key only. Inside lever always unlocked
Manufacturer Warranty: Limited 5 Year Mechanical Warranty
Material: Brass and Bronze
Maximum Door Thickness: 1-3/4"
Mechanical Option: Clutching
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
Num Pins: 6/7
Order_ Qty: 1
Origin: Mexico
Pack Height: 3.75"
Pack Length: 7.25"
Pack Qty: 1
Pack Volume: 183.52 in³
Pack Width: 6.75"
Product Height: 3.75"
Product Length: 7.25"
Product Width: 6.75"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design: 3" Rose Diameter
Rose Escutcheon Dimensions: 3"
Roseescutcheon Design: 3" Rose Diameter
Roseescutcheon Dimensions: 3"
Screws: Wood/Machine Screws
Series: C2000 Series
Ship Weight: 3.5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: C2000-DL-234-630
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: C2000-ACLS
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: C2000-ACLS
Strike Size: 4-7/8" x 1-1/4"
Strike Style: Square Corner
Strike Type: ASA
Strike Width: 1-1/4 In.
Structure Cylinder: SFIC
Structure Function: CL-STRM
Structure Latch Number: C2000-DL-234-630
Structure Outside Finish: 626
Structure Outside Trim: R
Structure Series: C2000
Structure Strike Number: C2000-ACLS
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Supplier: Dexter Commercial
Type: Mechanical Commercial Locksets
Ul Listing: ANSI A156.2 Series 4000, Grade 2, UL Listed
Ul Listing Type: UL Listed 3 Hour
Unit of Measure: Each
Upc: 043156643080
