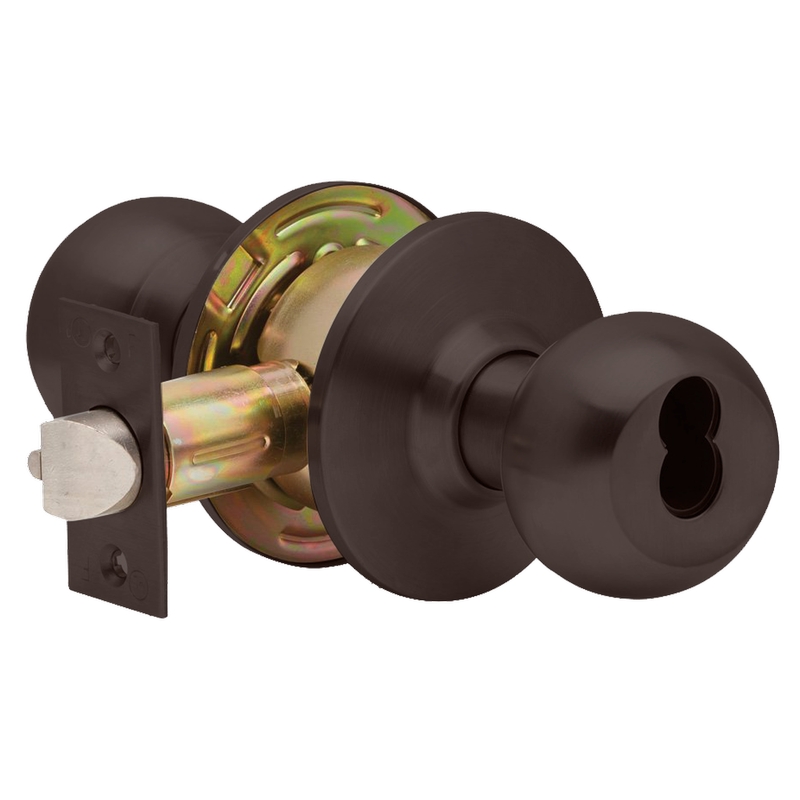

Dexter Commercial C2000CLRMB613SFIC Classroom Grade 2 Ball Knob Non Clutching Cylindrical Lock offers a reliable and secure locking solution tailored for educational and commercial settings. Designed with a small format IC preparation, this lock is ideal for environments where controlled access is essential. The 2-3/4" backset ensures compatibility with a wide range of door configurations, while the 2-1/8" crossbore size allows for straightforward installation. The lock features a durable ball knob design, making it easy to operate, and is suitable for doors with a thickness of 1-3/8" to 1-3/4". Its stylish oil rubbed bronze finish not only enhances aesthetic appeal but also provides robust protection against wear and tear. The ANSI strike and round rose escutcheon design contribute to its functional versatility. Rated as a Classroom function (F84), this lock allows for secure entry while maintaining ease of egress, making it perfect for high-traffic areas. With a limited 5-year mechanical warranty and UL Listing for 3-hour fire ratings, the Dexter Commercial C2000CLRMB613SFIC lock delivers both peace of mind and long-lasting performance. Whether for new installations or upgrades, this lock is a smart choice for enhancing security in any facility.
Attributes
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: C2000-CLRM-B-613-SFIC, C2000CLRMB613SFIC
Ansi: F84
Ansi Function: F84 - Classroom
Ansi Function Description: Classroom
Backset: 2-3/4" Backset
Base Material: Bronze
Bolt Projection: 1/2"
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 7-1/4"
Box Height Fraction: 3-3/4"
Box Width Fraction: 6-3/4"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Certifications: UL Listed 3 Hour
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore
Cylinder Included: No
Cylinder Type: SFIC Cylinder
Cylinders Present: Single Cylinder
Design: Ball Knob
Door Application: Commercial Locks
Door Bore Size: 2-1/8"
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8 In. - 1-3/4 In.
Door Thickness Max: 1-3/4"
Door Thickness Min: 1-3/8"
Finish: Oil Rubbed Bronze
Finish Code: 613
Finish Color: Oil Rubbed Bronze
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Finish Family: Dark Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: CLRM-Classroom
Function Family: Classroom
Grade: Grade 2
Hand: Not Handed
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Knob Design: Ball
Knob/ Lever Design: Ball
Knob/ Lever Style: Knob
Latch Backset Dim: 2-3/4 In.
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/4"
Latch Bolt Throw: 1/2"
Latch Bolt Type: Deadlatch
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: C2000-DL-234-613
Latch Type: Dead Latch (Guarded)
Lever Knob: Knob
Lever Knob Design: B - Ball Knob
Lever Knob Design Family: Ball Knob
Lever Knob Design Name: Ball
Leverknob Design: Ball Knob
Leverknob Design Family: Ball Knob
Limited Warranty: 5 Years
Lock Category: Cylindrical Lock
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Classroom, Non-Clutching
Manufacturer Function Description: Outside lever is locked and unlocked by key. Inside lever is always unlocked.
Manufacturer Warranty: Limited 5 Year Mechanical Warranty
Maximum Door Thickness: 1-3/4"
Mechanical Option: Non-Clutching
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
Num Pins: 7-Jun
Order_ Qty: 1
Origin: Mexico
Pack Height: 3.75"
Pack Length: 7.25"
Pack Qty: 1
Pack Volume: 183.52 in³
Pack Width: 6.75"
Product Height: 3.75"
Product Length: 7.25"
Product Width: 6.75"
Projection: 2-7/8"
Rose Escutcheon: Rose
Rose Escutcheon Design: 3" Rose Diameter
Rose Escutcheon Dimensions: 3"
Roseescutcheon Design: 3" Rose Diameter
Roseescutcheon Dimensions: 3"
Screws: Wood/Machine Screws
Series: C2000 Series
Ship Weight: 3.5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: C2000-DL-234-613
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: C2000-ACLS
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: C2000-ACLS
Strike Size: 4-7/8" x 1-1/4"
Strike Style: Square Corner
Strike Type: ASA
Strike Width: 1-1/4 In.
Structure Cylinder: SFIC
Structure Function: CLRM
Structure Latch Number: C2000-DL-234-613
Structure Outside Finish: 613
Structure Outside Trim: B
Structure Series: C2000
Structure Strike Number: C2000-ACLS
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Supplier: Dexter Commercial
Type: Mechanical Commercial Locksets
Ul Listing: ANSI A156.2 Series 4000, Grade 2, UL Listed
Ul Listing Type: UL Listed 3 Hour
Unit of Measure: Each
Upc: 043156535521
Upc Code: 43156535521
