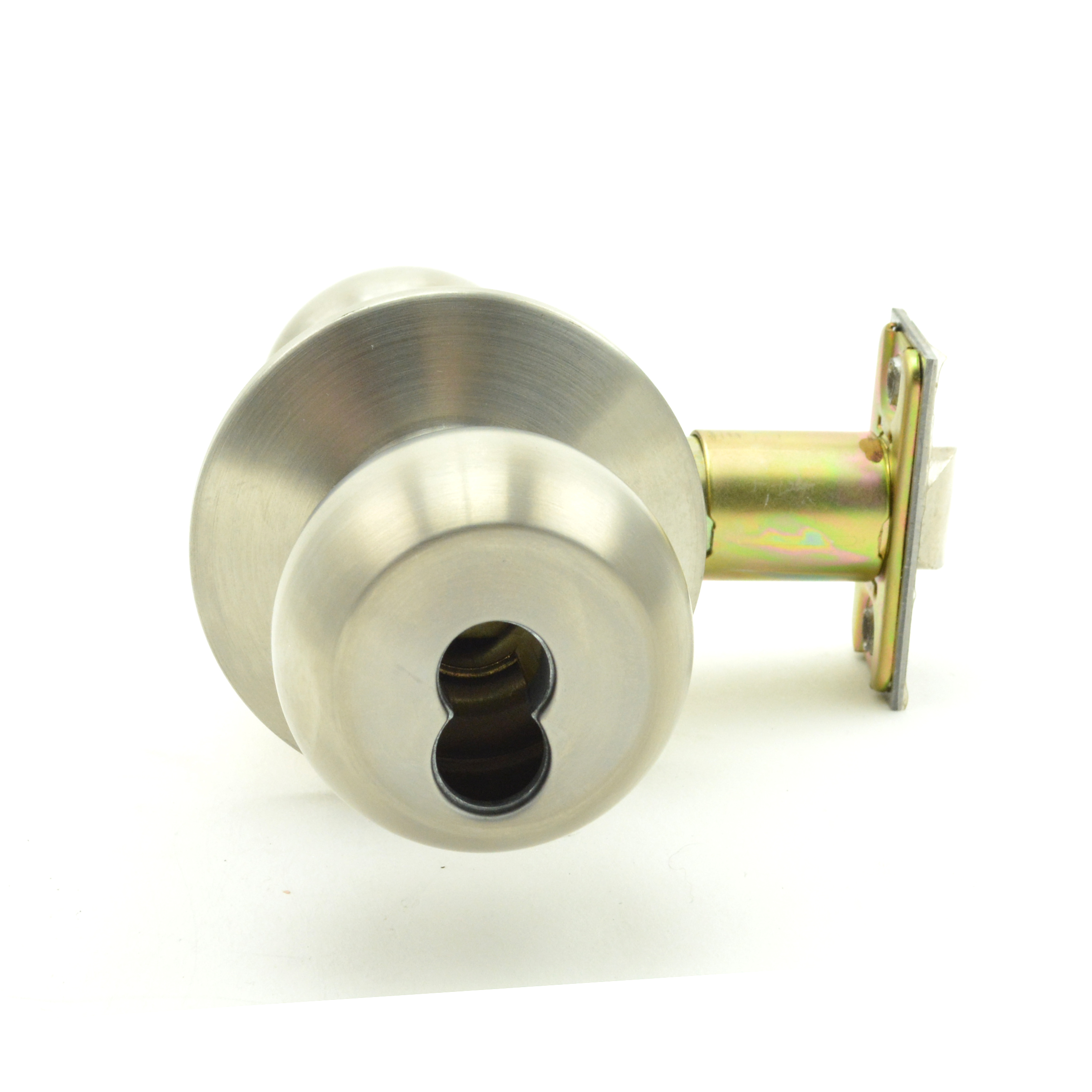

Dexter C2000-CLRM-B-630-SFIC Cylindrical Lock

Attributes

Manufacturer surcharge: $ 0.0

Accessible: Yes

Ada Compliance: Yes

Alternate Codes: C2000-CLRM-B-626-SFIC, C2000-CLRM-B-630-SFIC, C2000CLRMB626SFIC, C2000CLRMB630SFIC

Ansi: F84

Ansi Function: F84 - Classroom

Backset: 2-3/4"

Base Material: Stainless Steel

Bolt Projection: 1/2"

Bolt Protection: 1/2 In.

Bore Hole Diameter: 2-1/8"

Box Depth Fraction: 7-1/4"

Box Height Fraction: 3-3/4"

Box Width Fraction: 6-3/4"

Burglar Rated: No

Category: Commercial Locks, Cylindrical Knobs, Lock Sets

Certifications: UL Listed 3 Hour

Commercial Residential: Commercial

Country of Origin: Mexico

Country of origin: Mexico

Cylinder Included: No

Cylinder Type: SFIC Cylinder

Cylinders Present: Single Cylinder

Design: Ball Knob

Door Application: Commercial Locks

Door Bore Size: 2-1/8"

Door Thickness: 1-3/8 In. - 1-3/4 In.

Door Thickness Max: 1-3/4"

Door Thickness Min: 1-3/8"

Finish: Satin Stainless Steel

Finish Code: 630

Finish Color: Satin Stainless Steel

Finish Description: Satin Stainless Steel

Finish Family: Matte Silver

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: CLRM-Classroom

Function Family: Classroom

Grade: Grade 2

Hand: Not Handed

Handing: Non-Handed

Installation: Commercial

Knob Design: Ball

Knob/ Lever Design: Ball

Knob/ Lever Style: Knob

Latch Backset Dim: 2-3/4 In.

Latch Bolt Face Type: Square Corner

Latch Bolt Faceplate Size: 2-1/4" x 1-1/4"

Latch Bolt Throw: 1/2"

Latch Bolt Type: Deadlatch

Latch Bore Diameter: 1"

Latch Type: Dead Latch (Guarded)

Lever Knob: Knob

Lever Knob Design: B - Ball

Lever Knob Design Name: Ball

Leverknob Design: Ball Knob

Leverknob Design Family: Ball Knob

Limited Warranty: 5 Years

Lock Category: Cylindrical Lock

Lock Face Size: 2-1/4 In. x 1-1/8 In.

Manufacturer Function: Classroom, Non-Clutching

Maximum Door Thickness: 1-3/4"

Mechanical Option: Non-Clutching

Minimum Door Thickness: 1-3/8"

Num Pins: 6/7

Origin: Mexico

Pack Height: 3.75"

Pack Length: 7.25"

Pack Qty: 1

Pack Volume: 183.52 in³

Pack Width: 6.75"

Product Height: 3.75"

Product Length: 7.25"

Product Width: 6.75"

Projection: 2-7/8"

Rose Escutcheon: Rose

Roseescutcheon Design: 3" Rose Diameter

Roseescutcheon Dimensions: 3"

Screws: Wood/Machine Screws

Series: C2000

Ship Weight: 3.5 lbs.

Std Latch Backset Dim: 2-3/4"

Std Latch Number: C2000-DL-234-630

Std Latch Type: Deadlatch

Std Strike Height: 4-7/8"

Std Strike Number: C2000-ACLS

Std Strike Type: ANSI Curved Lip Strike

Std Strike Width: 1-1/4"

Strike: ANSI Strike

Strike Dimensions: 1-1/4" x 4-7/8"

Strike Height: 4-7/8 In.

Strike Size: 4-7/8" x 1-1/4"

Strike Style: Square Corner

Strike Type: ASA

Strike Width: 1-1/4 In.

Subtype: Cylindrical

Supplier: Dexter Commercial

Type: Mechanical Commercial Locksets

Ul Listing: ANSI A156.2 Series 4000, Grade 2, UL Listed

Unit of Measure: Each

Upc: 043156535514

Upc Code: 43156535514
