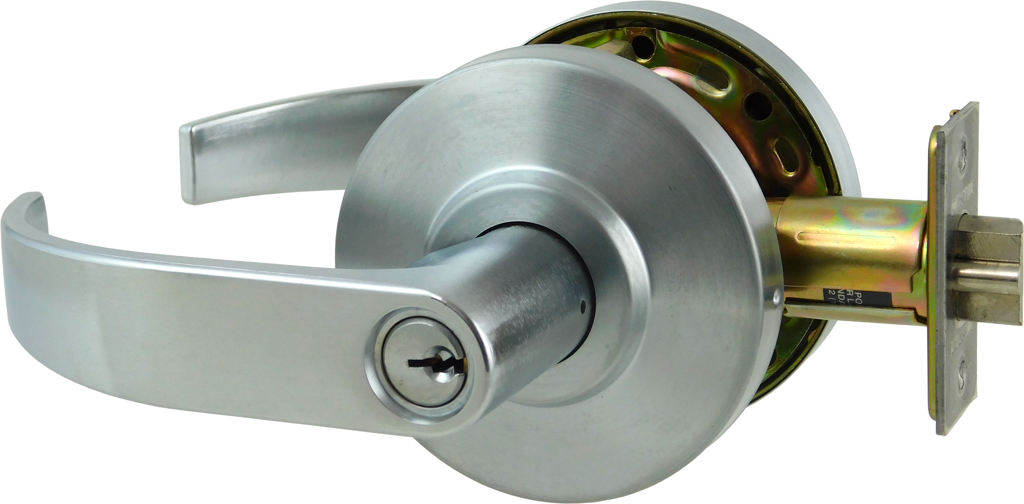

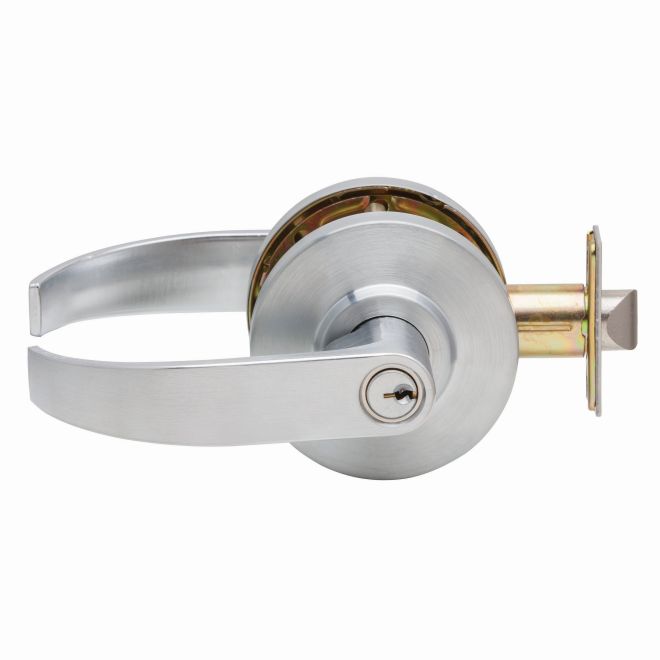

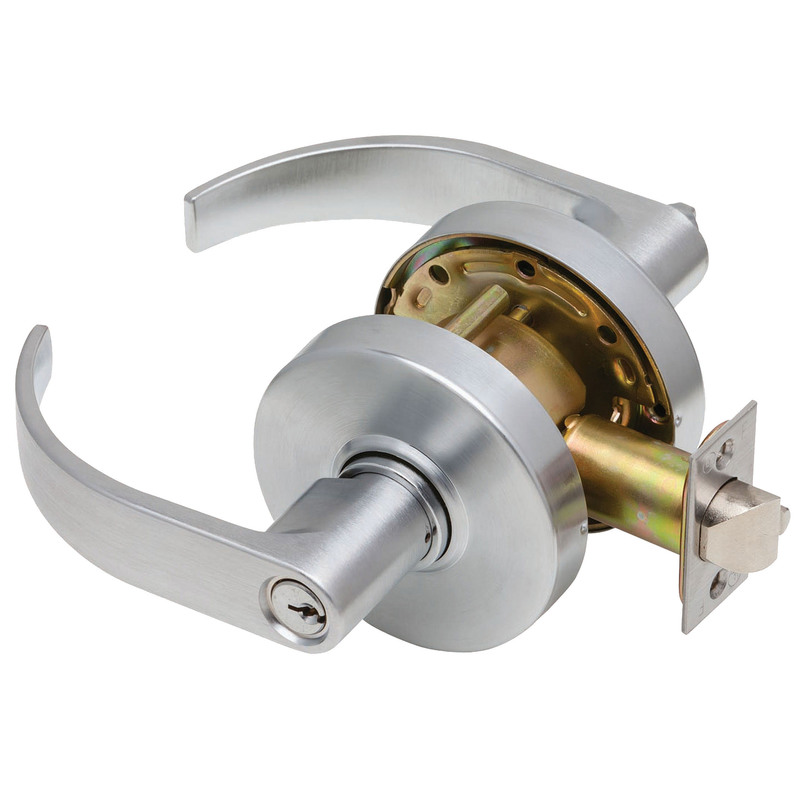

Dexter Commercial C2000CLRMC626KDC Classroom Grade 2 Curved Lever Non-Clutching Cylindrical Lock is designed for efficiency and durability in educational and commercial environments. This Grade 2 lockset features a robust satin chrome finish, ensuring both aesthetic appeal and resilience against daily wear. With a versatile 2-3/4" backset and a crossbore size of 2-1/8", it accommodates standard door ranges from 1-3/8" to 1-3/4" thick, making it a flexible choice for various applications. The C2000 series includes a classroom function (F84), allowing for controlled access while maintaining safety in high-traffic areas. It is UL listed for 3-hour fire ratings, providing peace of mind in case of emergencies. The lock utilizes a Schlage C keyway, featuring a 6-pin cylinder for added security. Additionally, the lock is constructed from high-quality brass and bronze materials, ensuring longevity. It includes a limited 5-year mechanical warranty, showcasing Dexter's commitment to quality. With its round rose design and ANSI strike, this cylindrical lockset is an excellent solution for cost-conscious projects without compromising on security and functionality.
Dexter Commercial Hardware, provides the locksmith customer with a competitive option for locks, exits, and closers. With over 200 SKUs of Grade 1, Grade 2, and residential grade products, Dexter Commercial Hardware is your solution for basic, cost constrained jobs.
Attributes
Manufacturer surcharge: $ 0.0
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: C2000-CLRM-C-626-KDC, C2000CLRMC626KDC
Ansi: F84
Ansi Function: F84 - Classroom
Ansi Function Description: Classroom
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 7-1/4"
Box Height Fraction: 3-3/4"
Box Width Fraction: 6-3/4"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Certifications: UL Listed 3 Hour
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore
Cylinder Included: Yes
Cylinder Type: 6-Pin Cylinder
Cylinders Present: Single Cylinder
Design: Curved Lever
Dimension: 3-5/16" Rose
Door Application: Commercial Locks
Door Bore Size: 2-1/8"
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8 In. - 1-3/4 In.
Door Thickness Max: 1-3/4"
Door Thickness Min: 1-3/8"
Finish: Satin Chrome
Finish Code: 626
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: CLRM-Classroom
Function Family: Classroom
Grade: Grade 2
Hand: Not Handed
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Keyway: C
Knob/ Lever Design: Curved
Knob/ Lever Style: Lever
Latch Backset Dim: 2-3/4 In.
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/4"
Latch Bolt Throw: 1/2"
Latch Bolt Type: Deadlatch
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: C2000-DL-234-630
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: C - Curved
Lever Knob Design Family: Curved Return Lever
Lever Knob Design Name: Curved
Lever Style: Curved
Leverknob Design: Curved Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 5 Years
Lock Category: Cylindrical Lock
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Classroom, Non-Clutching
Manufacturer Function Description: Outside lever is locked and unlocked by key. Inside lever is always unlocked.
Manufacturer Warranty: Limited 5 Year Mechanical Warranty
Material: Brass and Bronze
Maximum Door Thickness: 1-3/4"
Mechanical Option: Non-Clutching
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Origin: Mexico
Pack Height: 3.75"
Pack Length: 7.25"
Pack Qty: 1
Pack Volume: 183.52 in³
Pack Width: 6.75"
Pins: 6
Product Height: 3.75"
Product Length: 7.25"
Product Width: 6.75"
Projection: 3-1/2"
Restricted Keyway: No
Rose Escutcheon: Rose
Rose Escutcheon Design: 3" Rose Diameter
Rose Escutcheon Dimensions: 3"
Roseescutcheon Design: 3" Rose Diameter
Roseescutcheon Dimensions: 3"
Screws: Wood/Machine Screws
Series: C2000 Series
Ship Weight: 3.5 lbs.
Std Keyway: C
Std Latch Backset Dim: 2-3/4"
Std Latch Number: C2000-DL-234-630
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: C2000-ACLS
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: C2000-ACLS
Strike Size: 4-7/8" x 1-1/4"
Strike Style: Square Corner
Strike Type: ASA
Strike Width: 1-1/4 In.
Structure Cylinder: KDC
Structure Function: CLRM
Structure Latch Number: C2000-DL-234-630
Structure Outside Finish: 626
Structure Outside Trim: C
Structure Series: C2000
Structure Strike Number: C2000-ACLS
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Supplier: Dexter Commercial
Type: Mechanical Commercial Locksets
Ul Listing: ANSI A156.2 Series 4000, Grade 2, UL Listed
Ul Listing Type: UL Listed 3 Hour
Unit of Measure: Each
Upc: 043156535453
Upc Code: 43156535453
