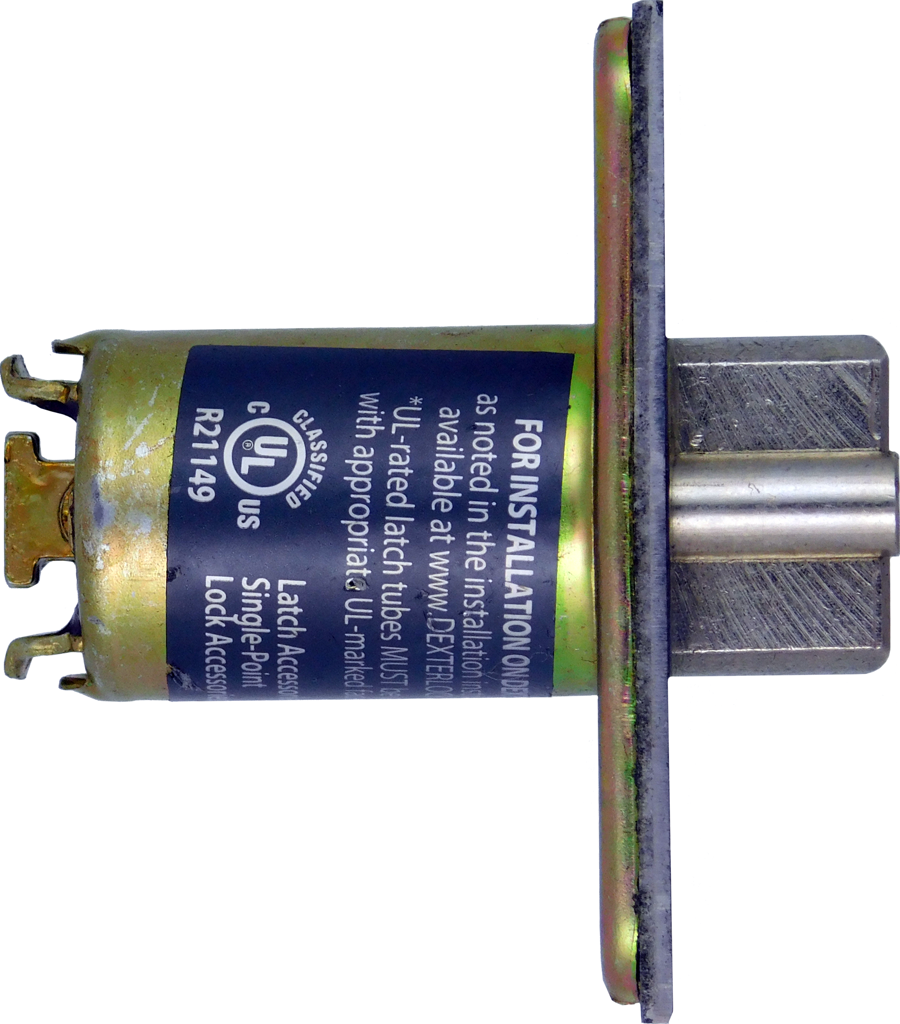

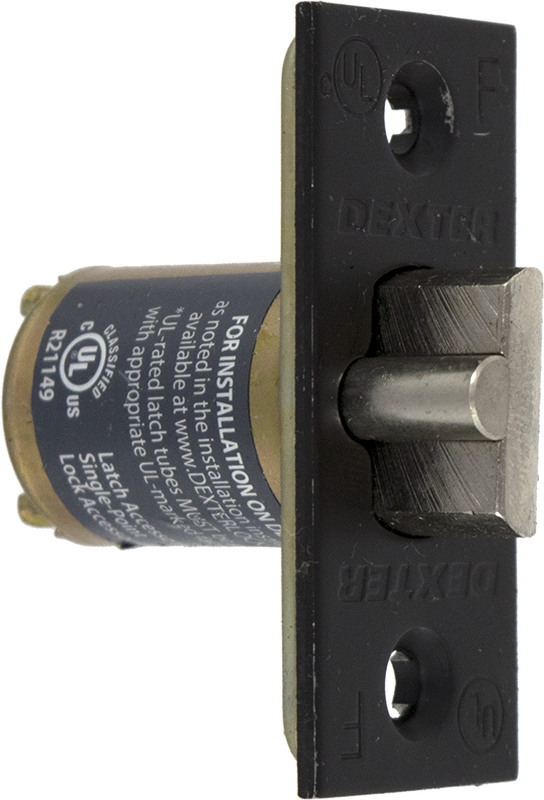

Dexter C2000-DL-613-2 3/8 BS Grade 2 Deadlatch 2-3/8in for C2000, 613/US10B Oil Rubbed Bronze

Dexter C2000-DL-613-2 3/8 BS Grade 2 Deadlatch is an exceptional choice for enhancing security in various settings, including offices and classrooms. This Grade 2 deadlatch is UL listed for 3-hour fire ratings, ensuring reliable performance under pressure. Designed to fit standard door thicknesses ranging from 1-3/8" to 1-3/4", it offers versatility for a range of installations. Crafted in a sleek Oil Rubbed Bronze finish, the C2000-DL-613-2 features a 2-3/8" backset and comes equipped with a square-corner beveled latch. The latch faceplate measures 1-1/8" x 2-1/4", making it a robust option for various door types. Schlage C cylinders with 6-pin configurations enhance security and allow for keying options that accommodate SFIC systems. This deadlatch supports multiple functions, including entry, privacy, and classroom applications, making it suitable for various environments. The quality construction and thoughtful design ensure durability and ease of use. Whether for new installations or replacements, the Dexter C2000-DL-613-2 is a dependable solution for anyone seeking enhanced security without compromising on style. Choose Dexter for peace of mind and reliability in your locking needs.

Grade 2 Deadlatch 2-3/8in for C2000, 613/US10B Oil Rubbed Bronze

Lever Features:

• PASS: F75 Passage (non-clutching)
• PRIV: F76 Privacy (non-clutching)
• SDUM: Single dummy (non-clutching)
• CL-ENTR: F109 Entry/office (clutching)
• ENTR: F109 Entry/office (non-clutching)
• CL-CLRM: F84 Classroom (clutching)
• CLRM: F84 Classroom (non-clutching)
• CL-STRM: Storeroom (clutching)
• STRM: Storeroom (non-clutching)

Specifications:

• Grade 2, UL listed 3 hour
• 1-3/8" to 1-3/4" door range standard
• Brass (605) ball knobs come packaged with square-corner beveled latch with 2-3/8" backset and ANSI 1-1/4" x 2-1/4" T-Strike standard.
• All other functions (except dummy) include 1-1/8" x 2-1/4" square-corner beveled latch with 2-3/4" backset and ANSI 1-1/4" x 4-7/8" curved lip strike (30-148)
• Schlage C cylinders are 6-pin cylinders keyed 6, keyed different
• Accommodate SFIC to accept 6-pin/7-pin

Accessories:

• Latches: All latches are square corner with 1 1⁄8" x 2 1⁄4" faceplate. Grade 2 latches are square corner with 2 3⁄8" and 2 3⁄4" backsets available. Products with "234" in the description represent a 2 3⁄4" backset.
• Function:
• SL: Passage, privacy, Backset: 2 3⁄8", Springlatch
• SL-234: Passage, privacy, Backset: 2 3⁄4", Springlatch
• DL: Entry/office, classroom, storeroom, Backset: 2 3⁄8", Deadlatch
• DL-234: Entry/office, classroom, storeroom, Backset: 2 3⁄4", Deadlatch
• Strikes:
• RCFLS: Radius corner, full lip strike, 1 5⁄8" x 2 1⁄4"
• ACLS: ANSI, curved lip strike, 1 1⁄4" x 4 7⁄8"
• TS: T-strike, 1 1⁄4" x 2 3⁄4"
• Tailpieces: SFIC 6- and 7-pin with shielding spacer

Trim Designs:

• R - Regular Lever
• C - Curved lever
• B - Ball Knob

Keying:

• KDC - Conventional 6-pin, Schlage C, KD
• SFIC - Less SFIC

Finishes:

• 605 - Polished Brass
• 613 - Oil Rubbed Bronze
• 626 - Satin Chrome
• 630 - Satin Stainless Steel (Ball Knob Only)
