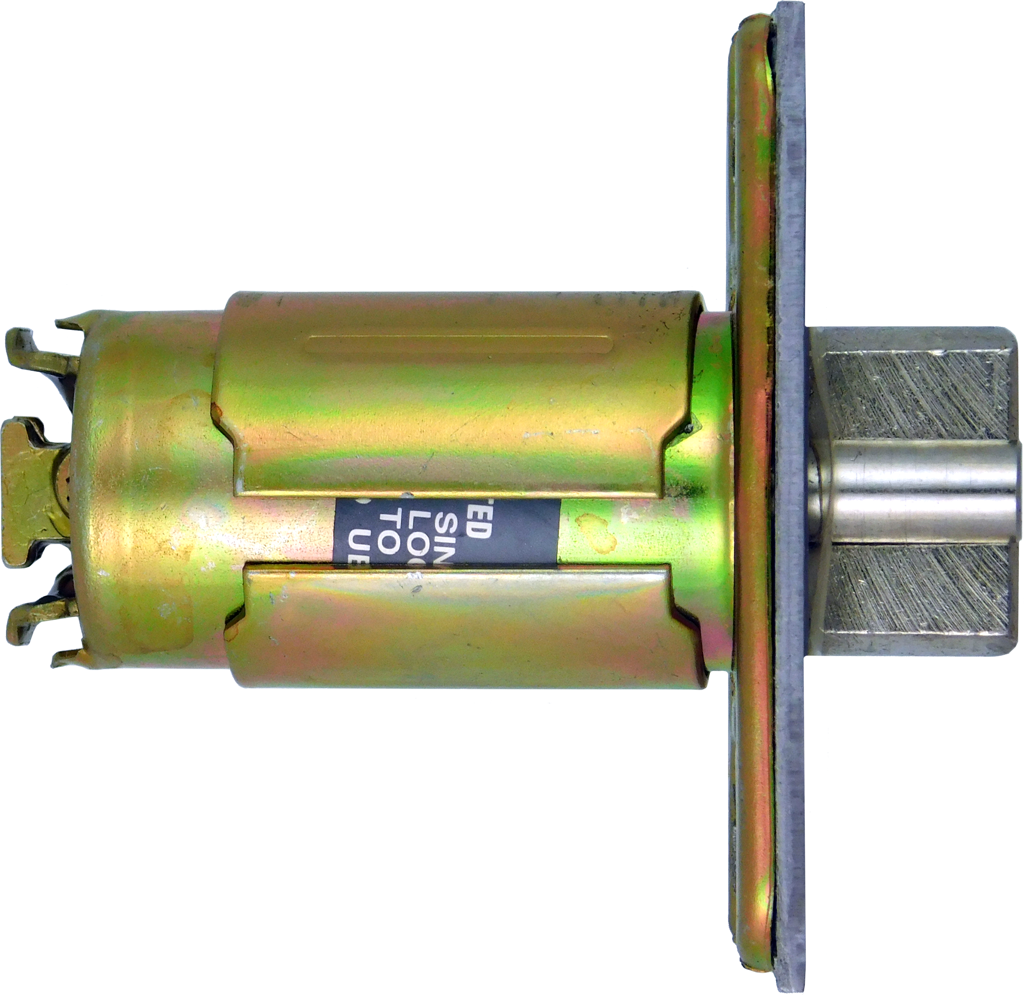

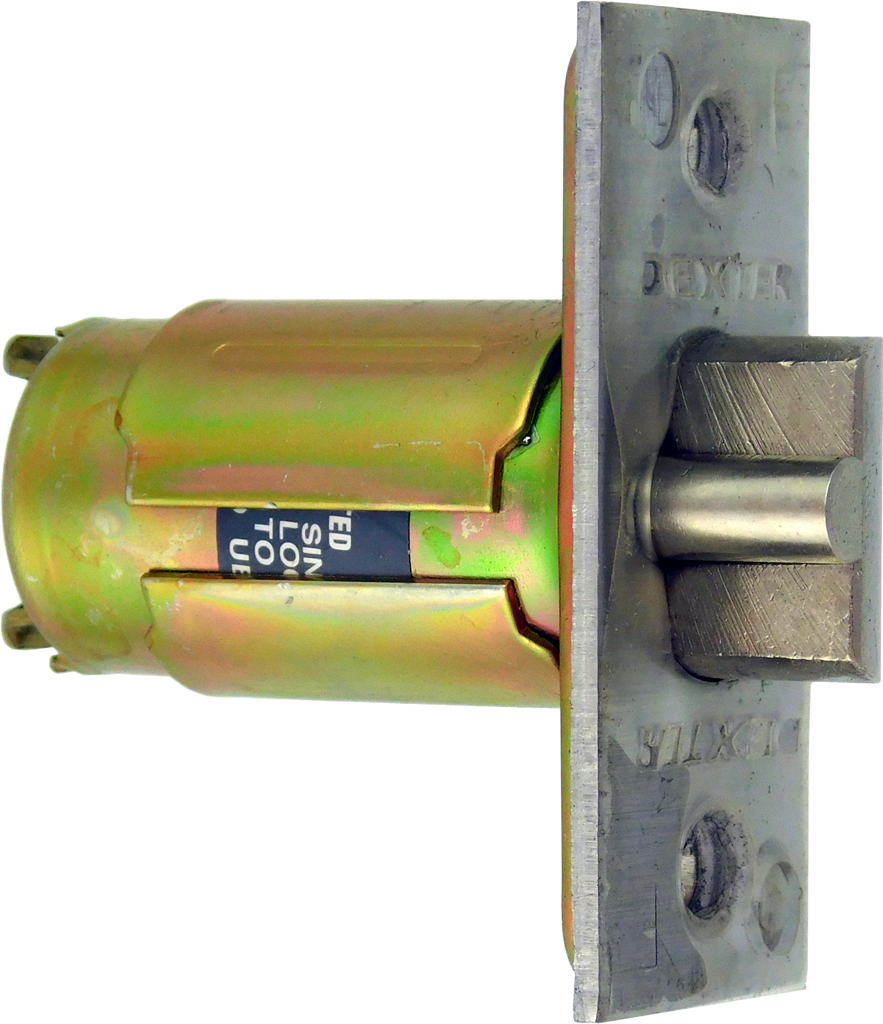

Dexter C2000-DL-630-2 3/4 BS Grade 2 Deadlatch 2-3/4in for C2000, 630/US32D Stainless Steel

Dexter C2000-DL-630-2 3/4 BS Grade 2 Deadlatch is a robust and reliable locking solution designed for enhanced security in various applications, including classrooms, offices, and storerooms. This deadlatch features a 2-3/4 inch backset, making it compatible with standard 1-3/8 inch to 1-3/4 inch doors. Crafted from durable stainless steel with a sleek satin finish, it not only ensures longevity but also adds a touch of modern elegance to your door hardware. As a Grade 2, UL listed deadlatch, the C2000-DL-630-2 offers a 3-hour fire rating, making it a safe choice for commercial environments. The square-corner beveled latch is designed for easy installation and comes with an ANSI standard T-Strike for secure engagement. This model accommodates Schlage C cylinders, providing flexibility with keying options, including conventional 6-pin and SFIC configurations. Available in multiple functions such as entry, office, and classroom, this deadlatch caters to various locking needs while ensuring non-clutching operation for easy access. The Dexter C2000-DL-630-2 is an ideal choice for professionals seeking a dependable, high-quality deadlatch that enhances security without compromising on style.

Grade 2 Deadlatch 2-3/4in for C2000, 630/US32D Stainless Steel

Lever Features:

• PASS: F75 Passage (non-clutching)
• PRIV: F76 Privacy (non-clutching)
• SDUM: Single dummy (non-clutching)
• CL-ENTR: F109 Entry/office (clutching)
• ENTR: F109 Entry/office (non-clutching)
• CL-CLRM: F84 Classroom (clutching)
• CLRM: F84 Classroom (non-clutching)
• CL-STRM: Storeroom (clutching)
• STRM: Storeroom (non-clutching)

Specifications:

• Grade 2, UL listed 3 hour
• 1-3/8" to 1-3/4" door range standard
• Brass (605) ball knobs come packaged with square-corner beveled latch with 2-3/8" backset and ANSI 1-1/4" x 2-1/4" T-Strike standard.
• All other functions (except dummy) include 1-1/8" x 2-1/4" square-corner beveled latch with 2-3/4" backset and ANSI 1-1/4" x 4-7/8" curved lip strike (30-148)
• Schlage C cylinders are 6-pin cylinders keyed 6, keyed different
• Accommodate SFIC to accept 6-pin/7-pin

Accessories:

• Latches: All latches are square corner with 1 1⁄8" x 2 1⁄4" faceplate. Grade 2 latches are square corner with 2 3⁄8" and 2 3⁄4" backsets available. Products with "234" in the description represent a 2 3⁄4" backset.
• Function:
• SL: Passage, privacy, Backset: 2 3⁄8", Springlatch
• SL-234: Passage, privacy, Backset: 2 3⁄4", Springlatch
• DL: Entry/office, classroom, storeroom, Backset: 2 3⁄8", Deadlatch
• DL-234: Entry/office, classroom, storeroom, Backset: 2 3⁄4", Deadlatch
• Strikes:
• RCFLS: Radius corner, full lip strike, 1 5⁄8" x 2 1⁄4"
• ACLS: ANSI, curved lip strike, 1 1⁄4" x 4 7⁄8"
• TS: T-strike, 1 1⁄4" x 2 3⁄4"
• Tailpieces: SFIC 6- and 7-pin with shielding spacer

Trim Designs:

• R - Regular Lever
• C - Curved lever
• B - Ball Knob

Keying:

• KDC - Conventional 6-pin, Schlage C, KD
• SFIC - Less SFIC

Finishes:

• 605 - Polished Brass
• 613 - Oil Rubbed Bronze
• 626 - Satin Chrome
• 630 - Satin Stainless Steel (Ball Knob Only)
