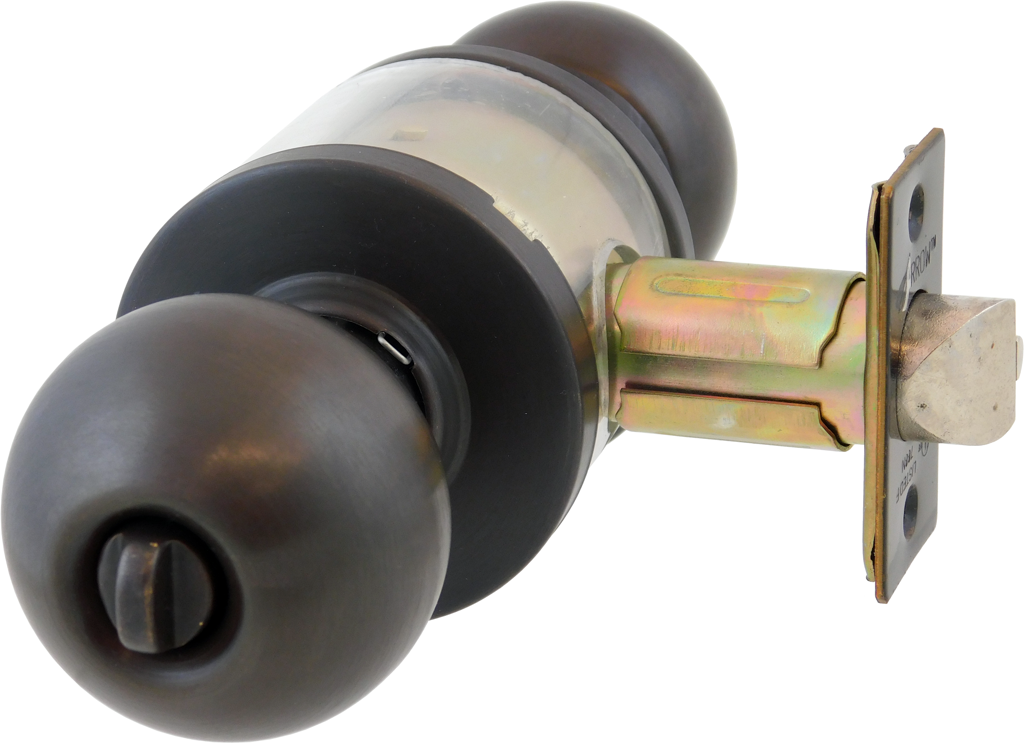

Cylindrical Lock, Entry/Office, Grade 2, 2-3/4" Backset, ANSI Strike, Ball Knob, SFIC Prep, Less Core, Oil Rubbed Bronze
Attributes
Alternate Codes: C2000-ENTR-B-613-SFIC, C2000ENTRB613SFIC
Ansi: F109
Ansi Function: F109 - Entry/Office
Backset: 2-3/4"
Base Material: Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 7-1/4"
Box Height Fraction: 3-3/4"
Box Width Fraction: 6-3/4"
Burglar Rated: No
Category: Commercial Locks, Cylindrical Knobs, Lock Sets
Certifications: UL Listed 3 Hour
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Included: No
Cylinder Type: SFIC Cylinder
Cylinders Present: Single Cylinder
Design: Ball Knob
Door Application: Commercial Locks
Door Bore Size: 2-1/8"
Door Thickness: 1-3/8" to 1-3/4"
Door Thickness Max: 1-3/4"
Door Thickness Min: 1-3/8"
Finish: Oil Rubbed Bronze
Finish Code: 613
Finish Color: Oil Rubbed Bronze
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Finish Family: Dark Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Entry
Function Family: Entrance
Grade: Grade 2
Handing: Non-Handed
Installation: Commercial
Knob Design: Ball
Knob/ Lever Design: Ball
Knob/ Lever Style: Knob
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/4"
Latch Bolt Throw: 1/2"
Latch Bolt Type: Deadlatch
Latch Bore Diameter: 1"
Lever Knob: Knob
Lever Knob Design Name: Ball
Leverknob Design: Ball Knob
Leverknob Design Family: Ball Knob
Limited Warranty: 5 Years
Lock Category: Cylindrical Lock
Lock Face Size: 1" x 2-1/4"
Manufacturer Function: Entrance, Non-Clutching
Maximum Door Thickness: 1-3/4"
Mechanical Option: Non-Clutching
Minimum Door Thickness: 1-3/8"
Origin: Mexico
Pack Height: 3.75"
Pack Length: 7.25"
Pack Qty: 1
Pack Volume: 183.52 in³
Pack Width: 6.75"
Product Height: 3.75"
Product Length: 7.25"
Product Width: 6.75"
Projection: 2-7/8"
Rose Escutcheon: Rose
Roseescutcheon Design: 3" Rose Diameter
Roseescutcheon Dimensions: 3"
Screws: Wood/Machine Screws
Series: C2000
Ship Weight: 3.5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: C2000-DL-234-613
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: C2000-ACLS
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Size: 4-7/8" x 1-1/4"
Strike Style: Square Corner
Subtype: Cylindrical Lock
Supplier: Dexter Commercial
Type: LOCK SETS
Ul Listing: ANSI A156.2 Series 4000, Grade 2, UL Listed
Unit of Measure: Each
Upc: 043156535408
Upc Code: 43156535408
