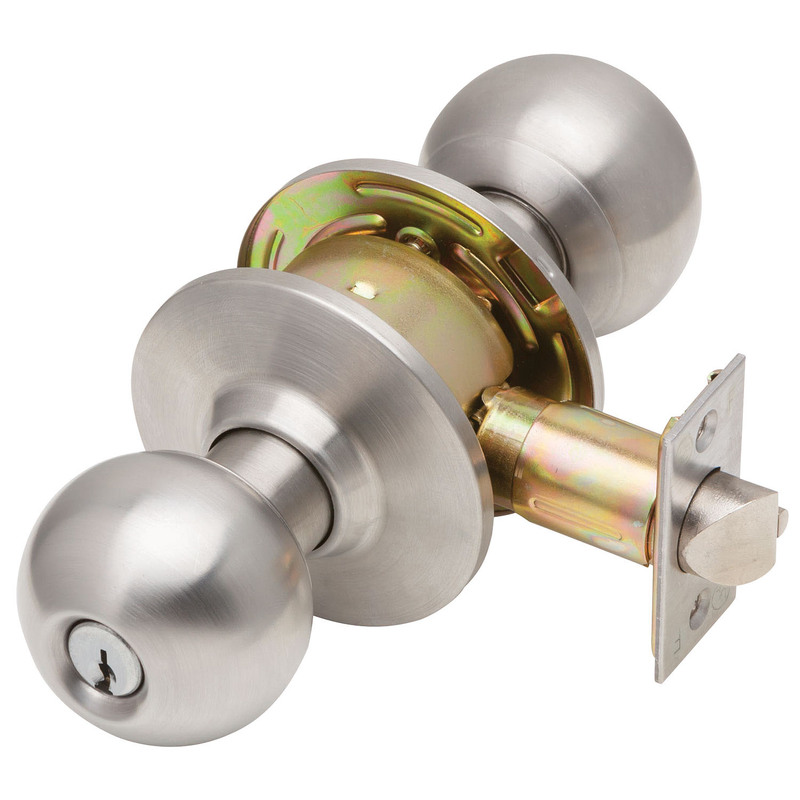

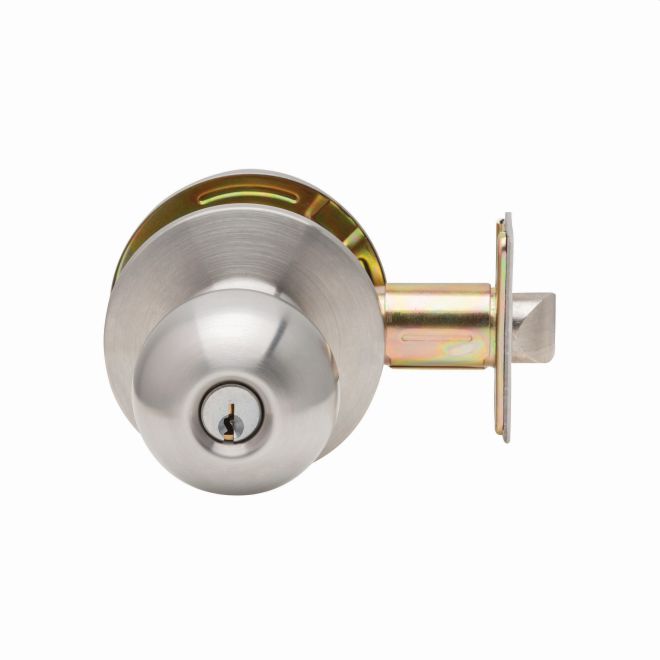

Dexter Commercial C2000ENTRB630KDC Entry / Office Grade 2 Ball Knob Non Clutching Cylindrical Lock offers a reliable locking solution for various commercial settings. Designed with a satin stainless steel finish, this lock not only enhances security but also complements modern architectural aesthetics. With a Grade 2 rating and UL listing for 3-hour fire resistance, this lock is suitable for doors ranging from 1-3/8" to 1-3/4" in thickness, ensuring versatility across a range of applications. The lock features a 2-3/4" backset and an ANSI strike, making it easy to integrate into existing door systems. The C2000 series showcases a user-friendly ball knob design, providing ease of operation without compromising on security. Equipped with a Schlage C keyway, this lock includes a 6-pin cylinder, delivering robust protection against unauthorized access. The round rose design adds a touch of sophistication, while the limited 5-year mechanical warranty ensures long-lasting performance. Ideal for entry and office applications, the Dexter C2000ENTRB630KDC lock is the perfect choice for building professionals and homeowners looking for a cost-effective yet reliable locking solution. With over 200 SKUs available, Dexter Commercial Hardware remains a trusted option for quality locks and hardware solutions.
Dexter Commercial Hardware, provides the locksmith customer with a competitive option for locks, exits, and closers. With over 200 SKUs of Grade 1, Grade 2, and residential grade products, Dexter Commercial Hardware is your solution for basic, cost constrained jobs.
Attributes
Manufacturer surcharge: $ 0.0
Alternate Codes: C2000-ENTR-B-630-KDC, C2000ENTRB630KDC
Ansi: F109
Ansi Function: F109 - Entry/Office
Ansi Function Description: Entry/Office
Backset: 2-3/4" Backset
Base Material: Stainless Steel
Bolt Projection: 1/2"
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 7-1/4"
Box Height Fraction: 3-3/4"
Box Width Fraction: 6-3/4"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Certifications: UL Listed 3 Hour
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore
Cylinder Included: Yes
Cylinder Type: 6-Pin Cylinder
Cylinders Present: Single Cylinder
Design: Ball Knob
Dimension: 3-5/16" Rose
Door Application: Commercial Locks
Door Bore Size: 2-1/8"
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8 In. - 1-3/4 In.
Door Thickness Max: 1-3/4"
Door Thickness Min: 1-3/8"
Finish: Satin Stainless Steel
Finish Code: 630
Finish Color: Satin Stainless Steel
Finish Description: Satin Stainless Steel
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: ENTR-Entry/Office
Function Family: Entrance
Grade: Grade 2
Hand: Not Handed
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Keyway: C
Knob Design: Ball
Knob/ Lever Design: Ball
Knob/ Lever Style: Knob
Latch Backset Dim: 2-3/4 In.
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/4"
Latch Bolt Throw: 1/2"
Latch Bolt Type: Deadlatch
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: C2000-DL-234-630
Latch Type: Dead Latch (Guarded)
Lever Knob: Knob
Lever Knob Design: B - Ball
Lever Knob Design Family: Ball Knob
Lever Knob Design Name: Ball
Leverknob Design: Ball Knob
Leverknob Design Family: Ball Knob
Limited Warranty: 5 Years
Lock Category: Cylindrical Lock
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Entrance, Non-Clutching
Manufacturer Function Description: Turn/push-button locking: pushing and turning button locks the outside lever, requiring use of a key until button is manually unlocked.
Manufacturer Warranty: Limited 5 Year Mechanical Warranty
Material: Stainless Steel
Maximum Door Thickness: 1-3/4"
Mechanical Option: Non-Clutching
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Origin: Mexico
PO date: 2024-11-30
Pack Height: 3.75"
Pack Length: 7.25"
Pack Qty: 1
Pack Volume: 183.52 in³
Pack Width: 6.75"
Pins: 6
Product Height: 3.75"
Product Length: 7.25"
Product Width: 6.75"
Projection: 2-7/8"
Restricted Keyway: No
Rose Escutcheon: Rose
Rose Escutcheon Design: 3" Rose Diameter
Rose Escutcheon Dimensions: 3"
Roseescutcheon Design: 3" Rose Diameter
Roseescutcheon Dimensions: 3"
Screws: Wood/Machine Screws
Series: C2000 Series
Ship Weight: 3.5 lbs.
Std Keyway: C
Std Latch Backset Dim: 2-3/4"
Std Latch Number: C2000-DL-234-630
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: C2000-ACLS
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: C2000-ACLS
Strike Size: 4-7/8" x 1-1/4"
Strike Style: Square Corner
Strike Type: ASA
Strike Width: 1-1/4 In.
Structure Cylinder: KDC
Structure Function: ENTR
Structure Latch Number: C2000-DL-234-630
Structure Outside Finish: 630
Structure Outside Trim: B
Structure Series: C2000
Structure Strike Number: C2000-ACLS
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Supplier: Dexter Commercial
Type: Mechanical Commercial Locksets
Ul Listing: ANSI A156.2 Series 4000, Grade 2, UL Listed
Ul Listing Type: UL Listed 3 Hour
Unit of Measure: Each
Upc: 043156535378
Upc Code: 43156535378
