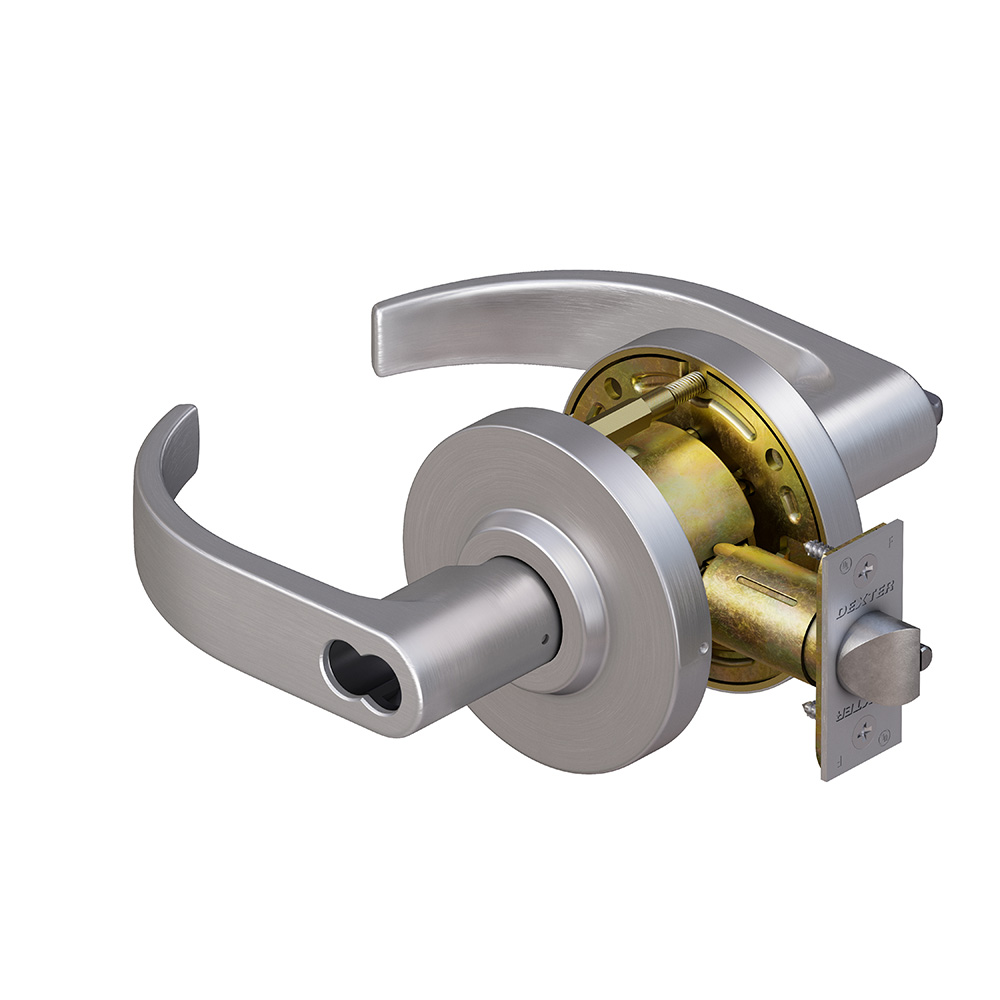

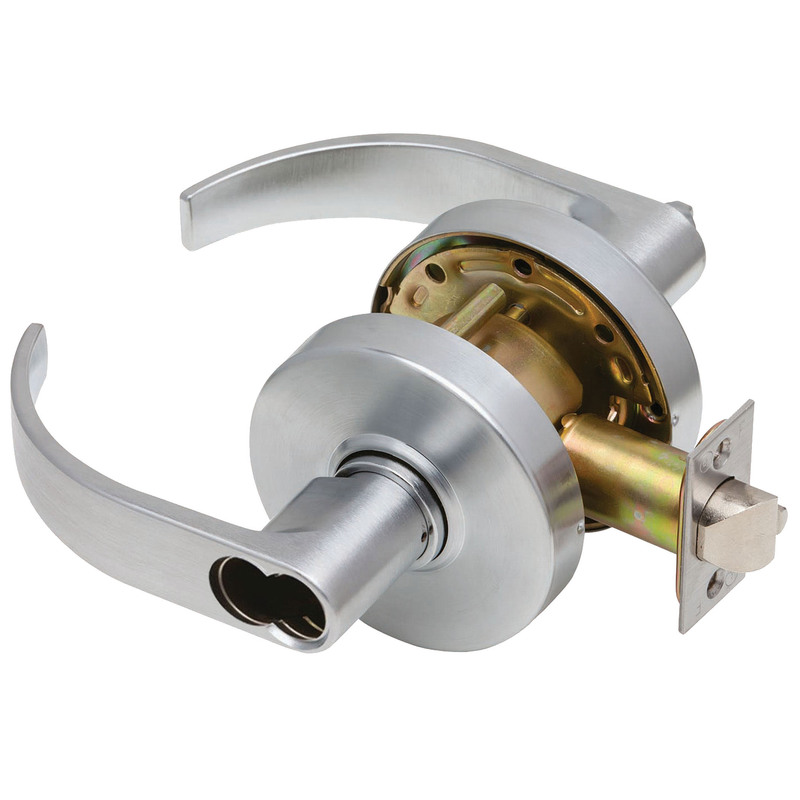

Dexter Commercial C2000ENTRC626SFIC Entry / Office Grade 2 Curved Lever Non Clutching Cylindrical Lock offers a reliable and stylish solution for your access control needs. Designed for doors with a thickness ranging from 1-3/8" to 1-3/4", this lockset is perfect for both commercial and residential applications. The Grade 2 rating, coupled with its UL listing for 3-hour fire resistance, ensures robust security and durability. Featuring a sleek satin chrome finish, the curved lever design adds an elegant touch while providing ease of use. The lockset is equipped with a small format interchangeable core (SFIC) prep, allowing for flexibility in key management. With a backset of 2-3/4" and a crossbore size of 2-1/8", installation is straightforward, making it suitable for various door types. Moreover, the ANSI strike included with the lockset guarantees compatibility with standard door frames. Backed by a limited 5-year mechanical warranty, you can trust in the quality of Dexter Commercial products. Whether you’re outfitting an office space or enhancing a residential entry, the C2000 Series lockset combines functionality with aesthetic appeal, making it an excellent choice for discerning professionals and homeowners alike.
Dexter Commercial Hardware, provides the locksmith customer with a competitive option for locks, exits, and closers. With over 200 SKUs of Grade 1, Grade 2, and residential grade products, Dexter Commercial Hardware is your solution for basic, cost constrained jobs.
Attributes
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: C2000-ENTR-C-626-SFIC, C2000ENTRC626SFIC
Ansi: F109
Ansi Function: F109 - Entry/Office
Ansi Function Description: Entry/Office
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 7-1/4"
Box Height Fraction: 3-3/4"
Box Width Fraction: 6-3/4"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Certifications: UL Listed 3 Hour
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore
Cylinder Included: No
Cylinder Type: SFIC Cylinder
Cylinders Present: Single Cylinder
Design: Curved Lever
Dimension: 3-5/16" Rose
Door Application: Commercial Locks
Door Bore Size: 2-1/8"
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8 In. - 1-3/4 In.
Door Thickness Max: 1-3/4"
Door Thickness Min: 1-3/8"
Finish: Satin Chrome
Finish Code: 626
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: ENTR-Entry/Office
Function Family: Entrance
Grade: Grade 2
Hand: Not Handed
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Knob/ Lever Design: Curved
Knob/ Lever Style: Lever
Latch Backset Dim: 2-3/4 In.
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/4"
Latch Bolt Throw: 1/2"
Latch Bolt Type: Deadlatch
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: C2000-DL-234-630
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: C - Curved
Lever Knob Design Family: Curved Return Lever
Lever Knob Design Name: Curved
Lever Style: Curved
Leverknob Design: Curved Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 5 Years
Lock Category: Cylindrical Lock
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Entrance, Non-Clutching
Manufacturer Function Description: Turn/push-button locking: pushing and turning button locks the outside lever, requiring use of a key until button is manually unlocked.
Manufacturer Warranty: Limited 5 Year Mechanical Warranty
Material: Brass and Bronze
Maximum Door Thickness: 1-3/4"
Mechanical Option: Non-Clutching
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
Num Pins: 6/7
Order_ Qty: 1
Origin: Mexico
Pack Height: 3.75"
Pack Length: 7.25"
Pack Qty: 1
Pack Volume: 183.52 in³
Pack Width: 6.75"
Product Height: 3.75"
Product Length: 7.25"
Product Width: 6.75"
Projection: 3-1/2"
Rose Escutcheon: Rose
Rose Escutcheon Design: 3" Rose Diameter
Rose Escutcheon Dimensions: 3"
Roseescutcheon Design: 3" Rose Diameter
Roseescutcheon Dimensions: 3"
Screws: Wood/Machine Screws
Series: C2000 Series
Ship Weight: 3.5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: C2000-DL-234-630
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: C2000-ACLS
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: C2000-ACLS
Strike Size: 4-7/8" x 1-1/4"
Strike Style: Square Corner
Strike Type: ASA
Strike Width: 1-1/4 In.
Structure Cylinder: SFIC
Structure Function: ENTR
Structure Latch Number: C2000-DL-234-630
Structure Outside Finish: 626
Structure Outside Trim: C
Structure Series: C2000
Structure Strike Number: C2000-ACLS
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Supplier: Dexter Commercial
Type: Mechanical Commercial Locksets
Ul Listing: ANSI A156.2 Series 4000, Grade 2, UL Listed
Ul Listing Type: UL Listed 3 Hour
Unit of Measure: Each
Upc: 043156535354
Upc Code: 43156535354
