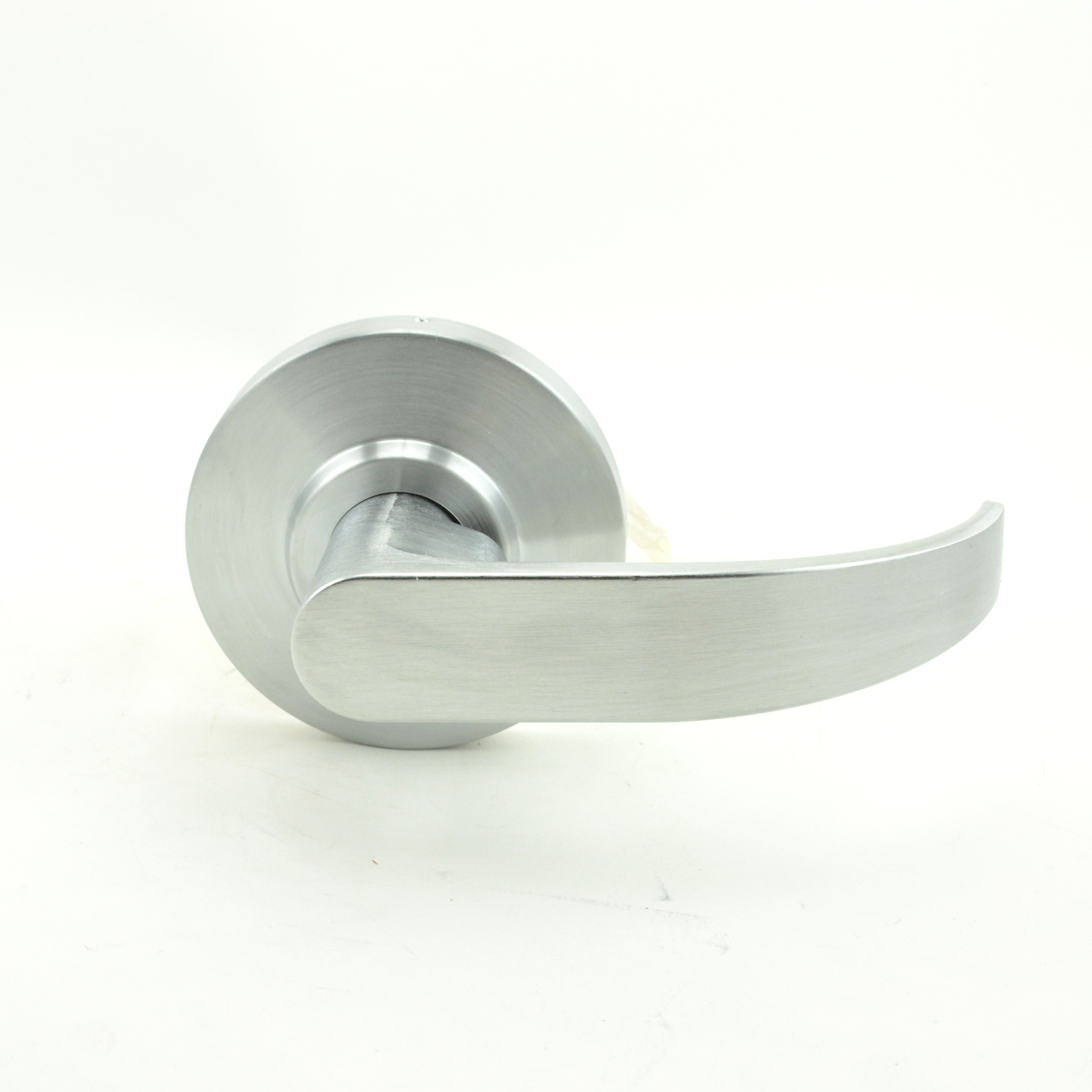

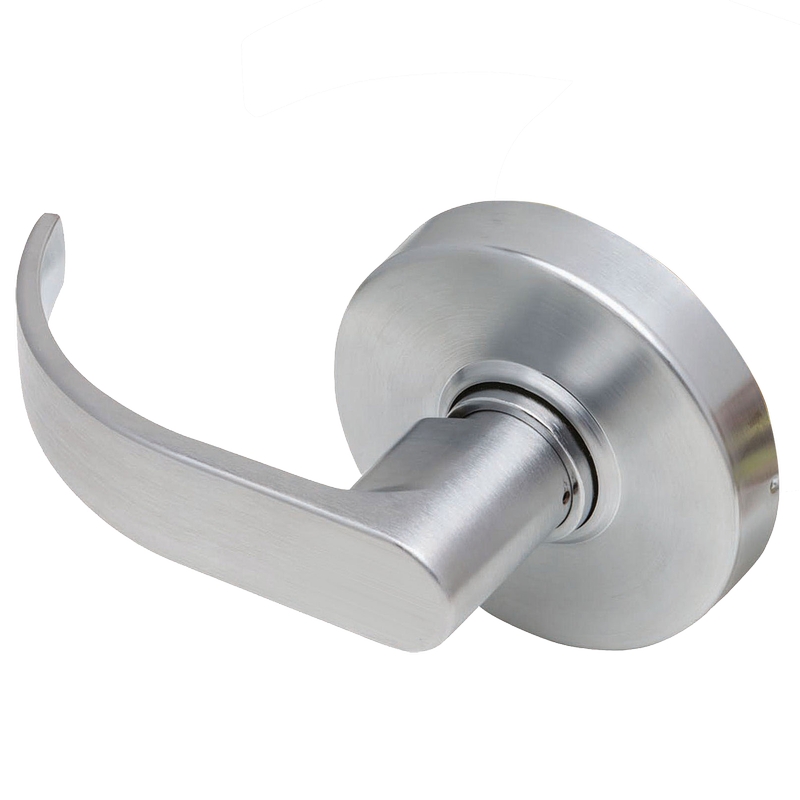

Dexter Commercial C2000SDUMC626 Single Dummy Grade 2 Curved Lever Non Clutching Cylindrical Lock offers a reliable and stylish solution for your door hardware needs. Designed for both functionality and aesthetics, this lockset features a sleek satin chrome finish that complements a variety of architectural styles while ensuring durability. With a Grade 2 rating and UL listing for 3-hour fire resistance, this lockset meets rigorous safety standards, making it suitable for commercial environments. It is compatible with doors ranging from 1-3/8" to 1-3/4" in thickness, ensuring a versatile fit for many applications. The single dummy trim design provides a clean appearance for doors that do not require locking functionality, ideal for areas such as closets or double door configurations. The C2000SDUMC626 is crafted from quality brass and bronze materials, promising longevity and resilience. Its 3-5/16" round rose design adds an elegant touch, while the limited 5-year mechanical warranty offers peace of mind. Perfect for cost-conscious projects, Dexter Commercial Hardware stands as a trusted choice for locksmiths and building professionals alike. Choose the C2000 Series for a blend of practicality and aesthetic appeal in your next project.
Dexter Commercial Hardware, provides the locksmith customer with a competitive option for locks, exits, and closers. With over 200 SKUs of Grade 1, Grade 2, and residential grade products, Dexter Commercial Hardware is your solution for basic, cost constrained jobs.
Attributes
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: C2000-SDUM-C-626, C2000SDUMC626
Backset: 2-3/4"
Base Material: Brass, Bronze
Box Depth Fraction: 7-1/4"
Box Height Fraction: 3-3/4"
Box Width Fraction: 6-3/4"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Certifications: UL Listed 3 Hour
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Included: No
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: Curved Lever
Dimension: 3-5/16" Rose
Door Application: Commercial Locks
Door Bore Size: 2-1/8"
Door Thickness: 1-3/8 In. - 1-3/4 In.
Door Thickness Max: 1-3/4"
Door Thickness Min: 1-3/8"
Finish: Satin Chrome
Finish Code: 626
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: SDUM-Single Dummy Trim
Function Family: Dummy
Grade: Grade 2
Hand: Not Handed
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Knob/ Lever Design: Curved
Knob/ Lever Style: Lever
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/4"
Latch Bolt Throw: 1/2"
Lever Knob: Lever
Lever Knob Design: C - Curved
Lever Knob Design Name: Curved
Lever Style: Curved
Leverknob Design: Curved Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 5 Years
Lock Category: Cylindrical Lock
Manufacturer Function: Single Dummy Trim, Non-Clutching
Manufacturer Warranty: Limited 5 Year Mechanical Warranty
Material: Brass and Bronze
Maximum Door Thickness: 1-3/4"
Mechanical Option: Non-Clutching
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Pack Height: 3.75"
Pack Length: 7.25"
Pack Qty: 1
Pack Volume: 183.52 in³
Pack Width: 6.75"
Product Height: 3.75"
Product Length: 7.25"
Product Width: 6.75"
Projection: 3-1/2"
Rose Escutcheon: Rose
Rose Escutcheon Design: Round Rose
Roseescutcheon Design: 3" Rose Diameter
Roseescutcheon Dimensions: 3"
Screws: Wood/Machine Screws
Series: C2000 Series
Ship Weight: 3.5 lbs.
Strike Height: 4-7/8 In.
Strike Size: 4-7/8" x 1-1/4"
Strike Style: Square Corner
Strike Type: ASA
Strike Width: 1-1/4 In.
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Supplier: Dexter Commercial
Type: LOCK SETS
Ul Listing: ANSI A156.2 Series 4000, Grade 2, UL Listed
Ul Listing Type: UL Listed 3 Hour
Unit of Measure: Each
Upc: 043156535132
Upc Code: 43156535132
