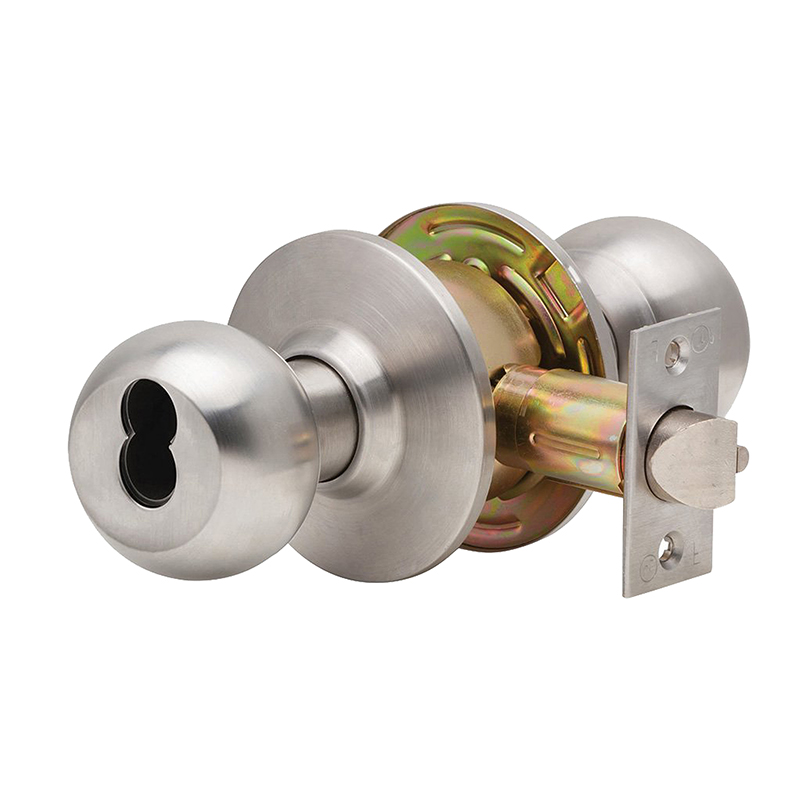

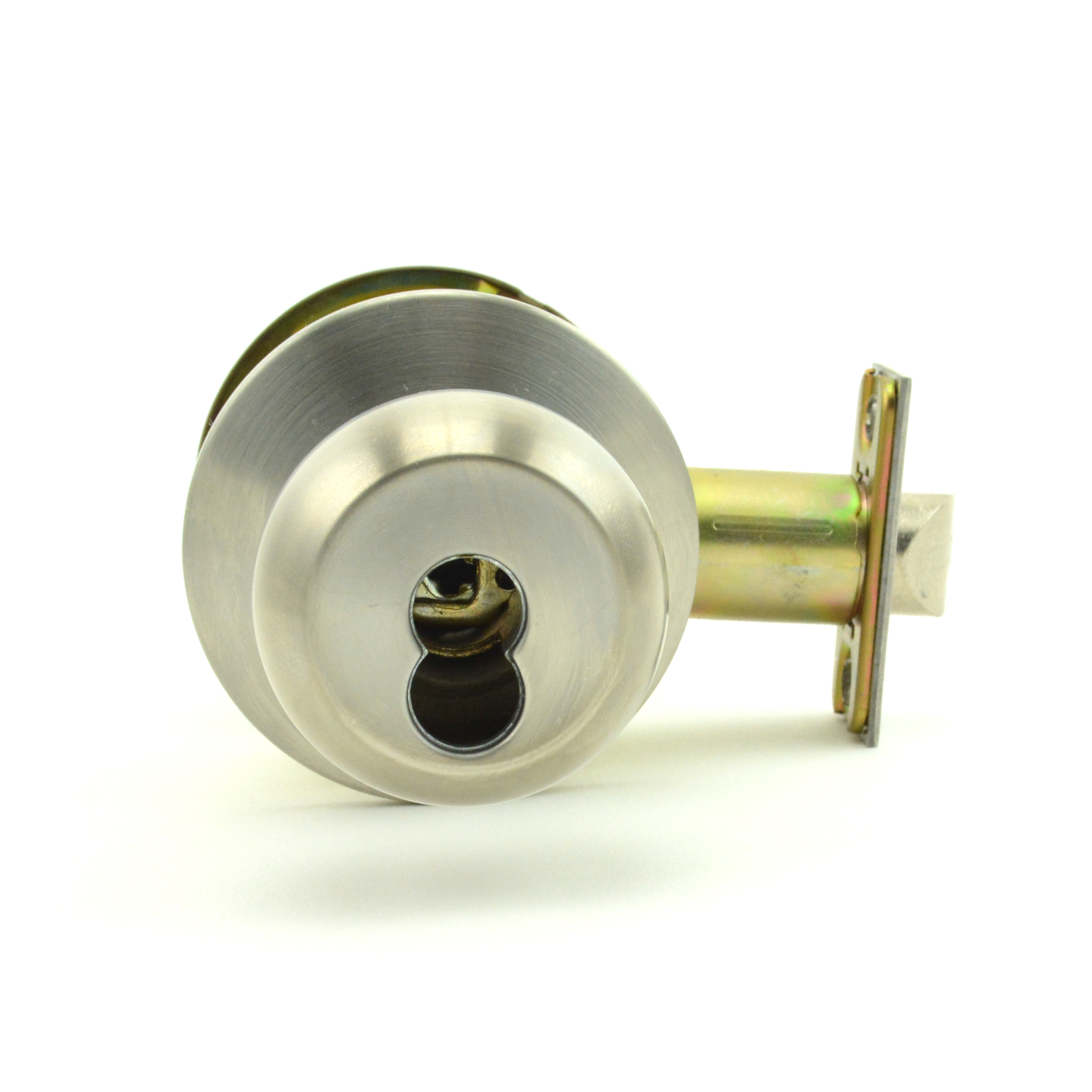

Dexter Commercial C2000STRMB630SFIC Storeroom Grade 2 Ball Knob Non Clutching Cylindrical Lock offers a reliable solution for securing storeroom doors while meeting the demands of commercial applications. This lockset features a sleek satin stainless steel finish that ensures both durability and aesthetic appeal, making it an excellent choice for various settings. Designed for doors ranging from 1-3/8" to 1-3/4" in thickness, the C2000 series lock accommodates a 2-3/4" backset and includes an ANSI strike for easy installation. The ball knob design not only enhances functionality but also provides a comfortable grip for users. With a UL listing for three-hour fire ratings, this lockset guarantees safety without compromising on performance. The storeroom function (F86) ensures that the door remains secure from the outside while allowing entry from the inside, making it ideal for areas requiring restricted access. Additionally, the limited 5-year mechanical warranty gives peace of mind for long-term use. Whether you're a building professional or a knowledgeable homeowner, the Dexter Commercial C2000STRMB630SFIC lockset delivers a blend of security, style, and practicality, ensuring your spaces are both safe and accessible.
Dexter Commercial Hardware, provides the locksmith customer with a competitive option for locks, exits, and closers. With over 200 SKUs of Grade 1, Grade 2, and residential grade products, Dexter Commercial Hardware is your solution for basic, cost constrained jobs.
Attributes
Manufacturer surcharge: $ 0.0
Alternate Codes: C2000-STRM-B-626-SFIC, C2000-STRM-B-630-SFIC, C2000STRMB626SFIC, C2000STRMB630SFIC
Ansi: F86
Ansi Function: F86 - Storeroom
Ansi Function Description: Storeroom
Backset: 2-3/4" Backset
Base Material: Stainless Steel
Bolt Projection: 1/2"
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 7-1/4"
Box Height Fraction: 3-3/4"
Box Width Fraction: 6-3/4"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Certifications: UL Listed 3 Hour
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore
Cylinder Included: No
Cylinder Type: SFIC Cylinder
Cylinders Present: Single Cylinder
Design: Ball Knob
Dimension: 3-5/16" Rose
Door Application: Commercial Locks
Door Bore Size: 2-1/8"
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8 In. - 1-3/4 In.
Door Thickness Max: 1-3/4"
Door Thickness Min: 1-3/8"
Finish: Satin Stainless Steel
Finish Code: 630
Finish Color: Satin Stainless Steel
Finish Description: Satin Stainless Steel
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: STRM-Storeroom
Function Family: Storeroom
Grade: Grade 2
Hand: Not Handed
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Knob Design: Ball
Knob/ Lever Design: Ball
Knob/ Lever Style: Knob
Latch Backset Dim: 2-3/4 In.
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/4"
Latch Bolt Throw: 1/2"
Latch Bolt Type: Deadlatch
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: C2000-DL-234-630
Latch Type: Dead Latch (Guarded)
Lever Knob: Knob
Lever Knob Design: B - Ball
Lever Knob Design Family: Ball Knob
Lever Knob Design Name: Ball
Leverknob Design: Ball Knob
Leverknob Design Family: Ball Knob
Limited Warranty: 5 Years
Lock Category: Cylindrical Lock
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Storeroom, Non-Clutching
Manufacturer Function Description: Outside lever is fixed. Entrance by key only. Inside lever always unlocked
Manufacturer Warranty: Limited 5 Year Mechanical Warranty
Material: Stainless Steel
Maximum Door Thickness: 1-3/4"
Mechanical Option: Non-Clutching
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
Num Pins: 6/7
Order_ Qty: 1
Origin: Mexico
PO date: 2024-10-10
Pack Height: 3.75"
Pack Length: 7.25"
Pack Qty: 1
Pack Volume: 183.52 in³
Pack Width: 6.75"
Product Height: 3.75"
Product Length: 7.25"
Product Width: 6.75"
Projection: 2-7/8"
Rose Escutcheon: Rose
Rose Escutcheon Design: 3" Rose Diameter
Rose Escutcheon Dimensions: 3"
Roseescutcheon Design: 3" Rose Diameter
Roseescutcheon Dimensions: 3"
Screws: Wood/Machine Screws
Series: C2000 Series
Ship Weight: 3.5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: C2000-DL-234-630
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: C2000-ACLS
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: C2000-ACLS
Strike Size: 4-7/8" x 1-1/4"
Strike Style: Square Corner
Strike Type: ASA
Strike Width: 1-1/4 In.
Structure Cylinder: SFIC
Structure Function: STRM
Structure Latch Number: C2000-DL-234-630
Structure Outside Finish: 630
Structure Outside Trim: B
Structure Series: C2000
Structure Strike Number: C2000-ACLS
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Supplier: Dexter Commercial
Type: Mechanical Commercial Locksets
Ul Listing: ANSI A156.2 Series 4000, Grade 2, UL Listed
Ul Listing Type: UL Listed 3 Hour
Unit of Measure: Each
Upc: 043156535637
Upc Code: 43156535637
