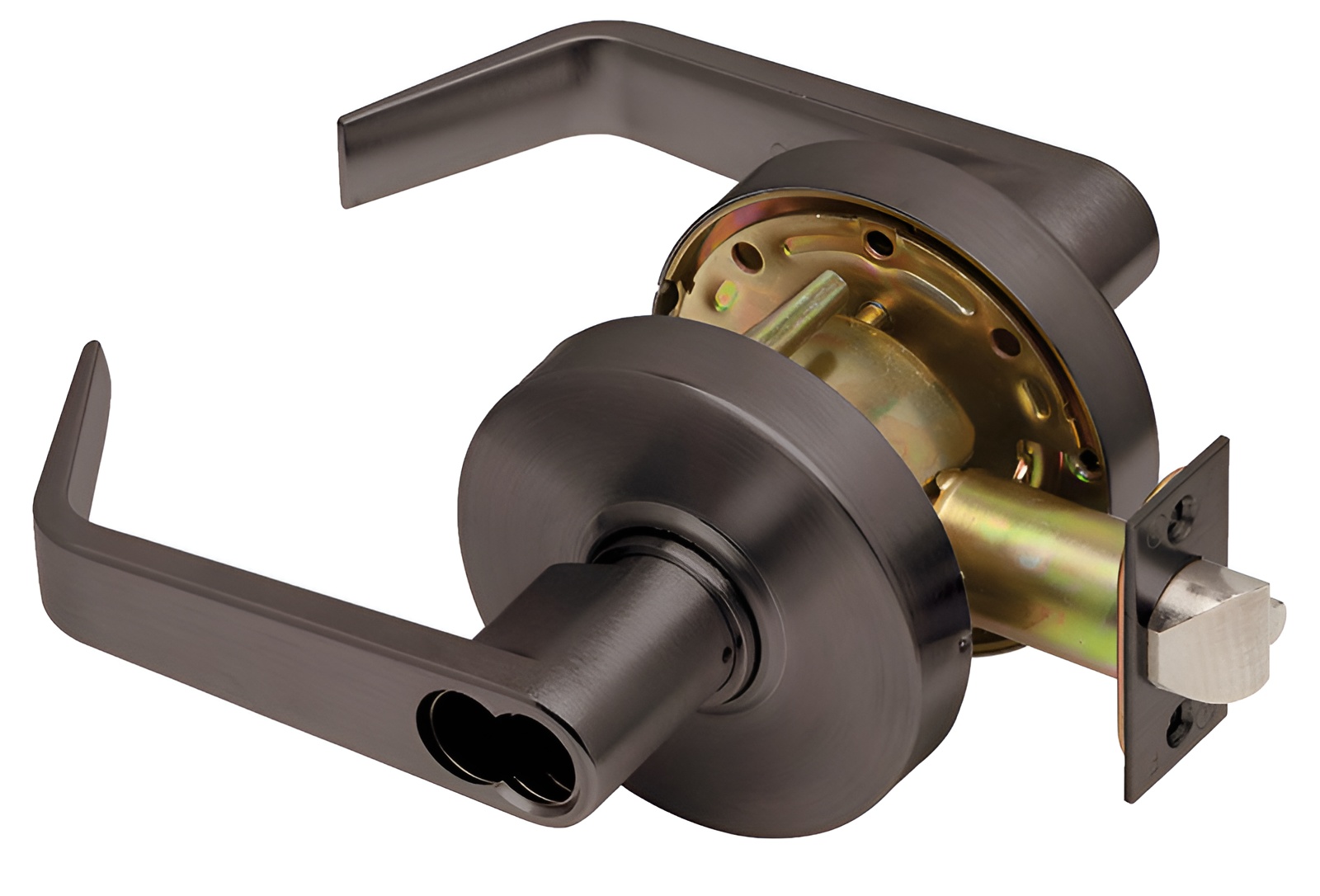

Dexter Commercial C2000STRMR613SFIC Storeroom Grade 2 Regular Lever Non-Clutching Cylindrical Lock offers a reliable solution for securing storerooms and other areas requiring controlled access. Designed with a 2-3/4" backset and ANSI strike, this lock is compatible with doors ranging from 1-3/8" to 1-3/4" thick, making it versatile for various applications. Constructed from durable bronze, the C2000 series features an attractive oil-rubbed bronze finish that not only enhances aesthetics but also ensures longevity. This Grade 2 lock is UL listed for 3-hour fire ratings, providing peace of mind in safety-critical environments. The storeroom function (F86) ensures that the door remains locked from the outside, allowing access only to authorized personnel. The regular lever design, paired with a round rose escutcheon, offers a classic look while meeting functional needs. Its 2-1/8" crossbore size and 1-1/8" x 2-1/4" faceplate dimension make installation straightforward. Backed by a limited 5-year mechanical warranty, the Dexter Commercial C2000STRMR613SFIC is a dependable choice for building professionals seeking quality and efficiency in their locking solutions.
Dexter Commercial Hardware, provides the locksmith customer with a competitive option for locks, exits, and closers. With over 200 SKUs of Grade 1, Grade 2, and residential grade products, Dexter Commercial Hardware is your solution for basic, cost constrained jobs.
Attributes
Manufacturer surcharge: $ 0.0
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: C2000-STRM-R-613-SFIC, C2000STRMR613SFIC
Ansi: F86
Ansi Function: F86 - Storeroom
Backset: 2-3/4" Backset
Base Material: Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 7-1/4"
Box Height Fraction: 3-3/4"
Box Width Fraction: 6-3/4"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Certifications: UL Listed 3 Hour
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore
Cylinder Included: No
Cylinder Type: SFIC Cylinder
Cylinders Present: Single Cylinder
Design: Regular Lever
Dimension: 3-5/16" Rose
Door Application: Commercial Locks
Door Bore Size: 2-1/8"
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8" to 1-3/4"
Door Thickness Max: 1-3/4"
Door Thickness Min: 1-3/8"
Finish: Oil Rubbed Bronze
Finish Code: 613
Finish Color: Oil Rubbed Bronze
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Finish Family: Dark Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Storeroom (F86)
Function Family: Storeroom
Grade: Grade 2
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Knob/ Lever Design: Regular
Knob/ Lever Style: Lever
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/4"
Latch Bolt Throw: 1/2"
Latch Bolt Type: Deadlatch
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob: Lever
Lever Knob Design: Regular Lever
Lever Knob Design Name: Regular
Lever Style: Regular
Leverknob Design: Regular Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 5 Years
Lock Category: Cylindrical Lock
Lock Face Size: 1" x 2-1/4"
Manufacturer Function: Storeroom, Non-Clutching
Manufacturer Warranty: Limited 5 Year Mechanical Warranty
Material: Bronze
Maximum Door Thickness: 1-3/4"
Mechanical Option: Non-Clutching
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Pack Height: 3.75"
Pack Length: 7.25"
Pack Qty: 1
Pack Volume: 183.52 in³
Pack Width: 6.75"
Product Height: 3.75"
Product Length: 7.25"
Product Width: 6.75"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design: Round Rose
Roseescutcheon Design: 3" Rose Diameter
Roseescutcheon Dimensions: 3"
Screws: Wood/Machine Screws
Series: C2000 Series
Ship Weight: 3.5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: C2000-DL-234-613
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: C2000-ACLS
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Size: 4-7/8" x 1-1/4"
Strike Style: Square Corner
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Supplier: Dexter Commercial
Type: Mechanical Commercial Locksets
Ul Listing: ANSI A156.2 Series 4000, Grade 2, UL Listed
Ul Listing Type: UL Listed 3 Hour
Unit of Measure: Each
Upc: 043156535569
Upc Code: 43156535569
