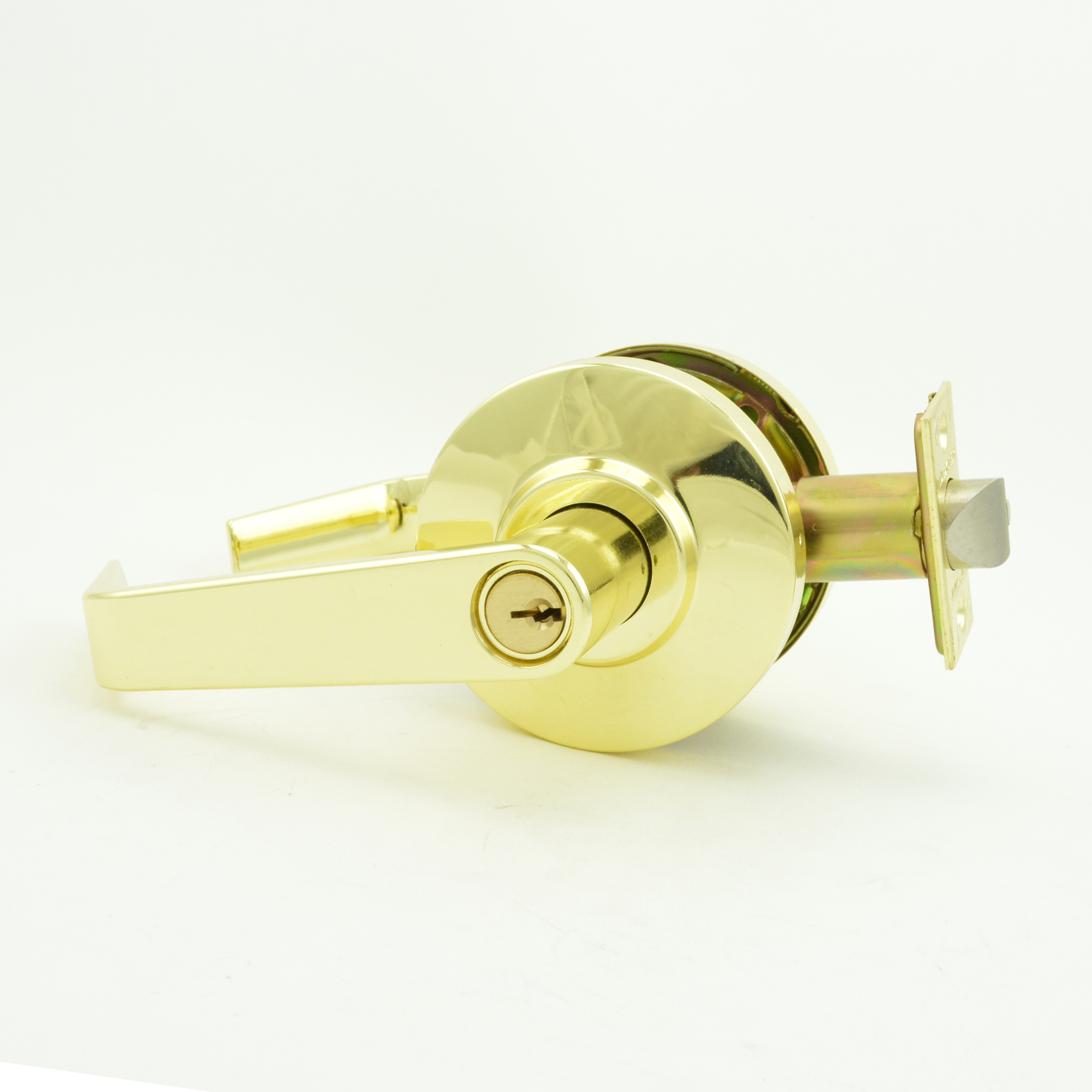

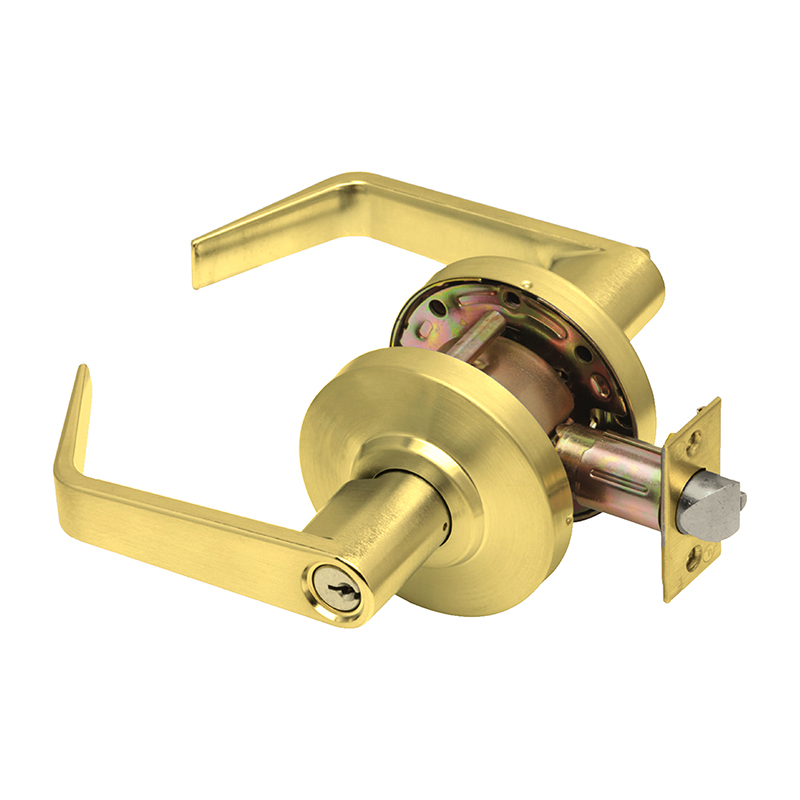

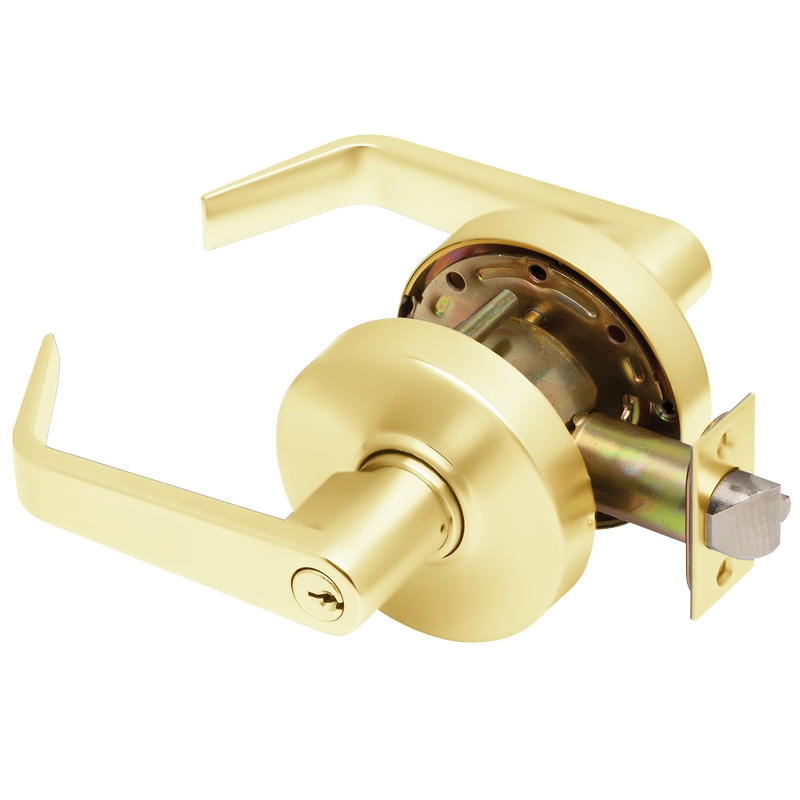

Dexter Commercial C2000ENTRR605KDC Entry / Office Grade 2 Regular Lever Non Clutching Cylindrical Lock offers reliable security and durability for both commercial and residential applications. This Grade 2 lock is UL listed for 3-hour fire ratings, ensuring it meets safety standards while maintaining high performance under pressure. Designed to fit standard door thicknesses ranging from 1-3/8" to 1-3/4", the lock features a 2-3/4" backset and a 2-1/8" crossbore size, making installation straightforward and hassle-free. The bright brass finish exudes a classic appeal, perfectly complementing various architectural styles, while the Schlage C keyway provides enhanced key control for added security. The F109 entry office function allows for easy access, making it suitable for office environments or residential entry points. With a round rose design and a durable brass construction, this lock is not only functional but also aesthetically pleasing. Backed by a limited 5-year mechanical warranty, the C2000ENTRR605KDC promises longevity and peace of mind. Whether you’re a building professional or a knowledgeable homeowner, this cylindrical lockset is a smart choice for cost-effective security solutions without compromising on quality.
Dexter Commercial Hardware, provides the locksmith customer with a competitive option for locks, exits, and closers. With over 200 SKUs of Grade 1, Grade 2, and residential grade products, Dexter Commercial Hardware is your solution for basic, cost constrained jobs.
Attributes
Ansi Function: F109 - Entry/Office
Ansi Function Description: Entry/Office
Backset: 2-3/4" Backset
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8"
Category: Mechanical Commercial Locksets
Country of Origin: Mexico
Crossbore Size: 2-1/8" Bore
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Design: Regular Lever
Dimension: 3-5/16" Rose
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8 In. - 1-3/4 In.
Finish: Bright Brass
Finish Code: 605
Finish Description: Bright Brass
Fire Rated: 3 Hours {A}
Function: ENTR-Entry/Office
Function Family: Entrance
Grade: Grade 2
Hand: Not Handed
Hazardous Material: NO
Keying: Keyed Different
Keys: Cut
Keyway: C
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: C2000-DL-234-605
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: R - Regular Lever
Lever Knob Design Family: Straight Return Lever
Lever Knob Design Name: Regular
Limited Warranty: Limited Warranty
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Entrance, Non-Clutching
Manufacturer Function Description: Turn/push-button locking: pushing and turning button locks the outside lever, requiring use of a key until button is manually unlocked.
Manufacturer Warranty: Limited 5 Year Mechanical Warranty
Material: Brass
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Of Keys: 2
Num Pins: 6
Order_ Qty: 1
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design: 3" Rose Diameter
Rose Escutcheon Dimensions: 3"
Screws: Wood/Machine Screws
Series: C2000 Series
Strike: ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: C2000-ACLS
Strike Type: ASA
Strike Width: 1-1/4 In.
Structure Cylinder: KDC
Structure Function: ENTR
Structure Latch Number: C2000-DL-234-605
Structure Outside Finish: 605
Structure Outside Trim: R
Structure Series: C2000
Structure Strike Number: C2000-ACLS
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Ul Listing Type: UL Listed 3 Hour
Upc: 043156556588
