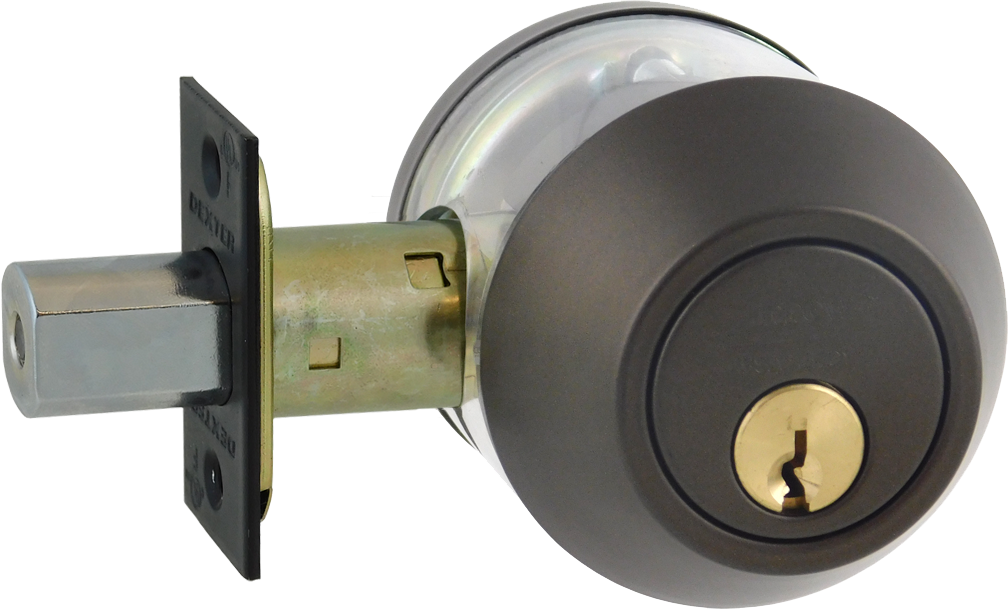

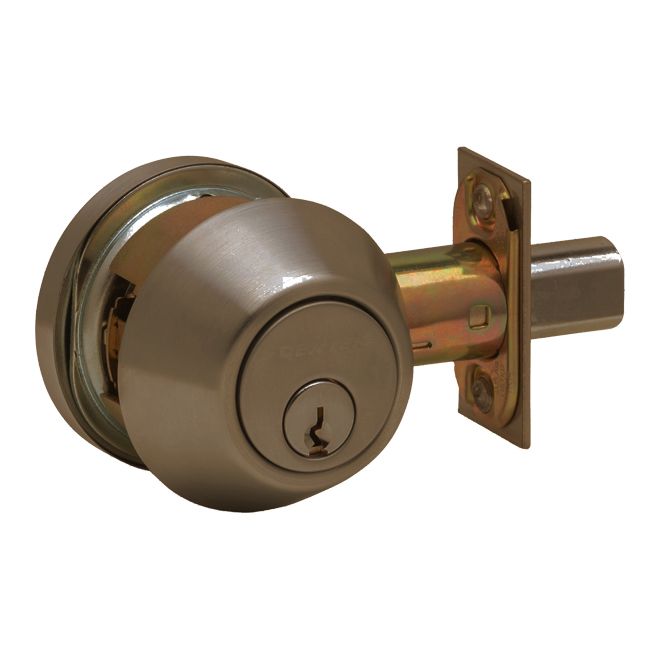

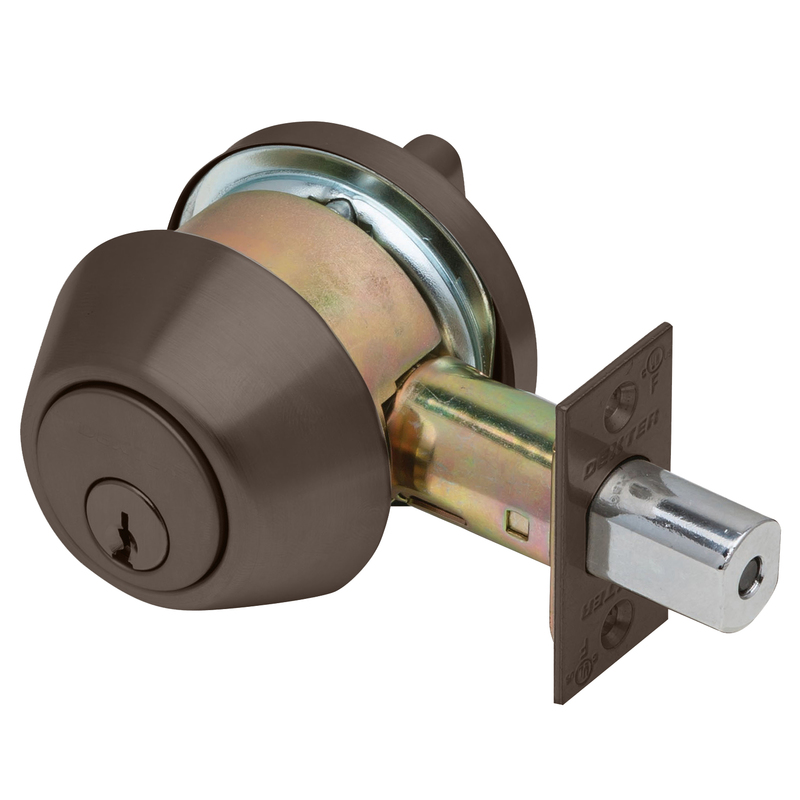

Dexter Commercial DB1000SCT613KDC Single Cylinder Grade 1 Deadbolt with C Keyway; Adjustable Backset; and 2-3/4" Square Strike Oil Rubbed Bronze Finish
Attributes
Alternate Codes: DB1000-SCT-613-KDC, DB1000SCT613KDC
Backset: Adjustable 2-3/8" to 2-3/4" Backset
Burglar Rated: No
Category: Commercial Deadbolts, Commercial Locks, Deadbolts, Lock Sets, Single Cylinder, Single Cylinder (Commercial)
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Included: Yes
Cylinder Type: 6-Pin Cylinder
Door Application: Commercial Deadbolts
Door Bore Size: 2-1/8"
Door Thickness: 1-3/8" to 2"
Door Thickness Max: 1-7/8"
Door Thickness Min: 1-3/8"
Finish: Oil Rubbed Bronze
Finish Code: 613
Finish Color: Oil Rubbed Bronze
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Finish Family: Dark Bronze
Fire Rating: 3 Hours {A}
Function: SCT-Single Cylinder Deadbolt
Grade: Grade 1
Handing: Non-Handed
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Keyway: Schlage C

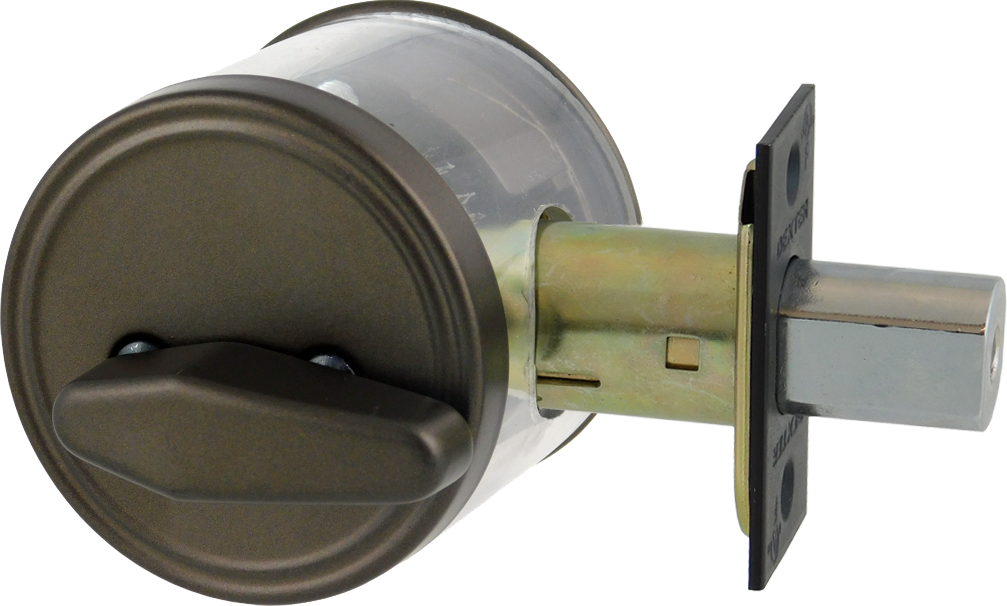

Knob/ Lever Style: Inside Thumbturn
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1"
Latch Bolt Throw: 1"
Latch Bolt Type: Deadbolt
Limited Warranty: 5 Years
Lock Category: Deadbolts
Manufacturer: Dexter
Of Keys: 2
Origin: Mexico
Pack Qty: 1
Pins: 6
Restricted Keyway: No
Series: DB1000
Std Keyway: C
Std Latch Backset Dim: Adjustable 2-3/8" and 2-3/4"
Std Latch Type: Deadbolt
Std Strike Height: 2-3/4"
Std Strike Type: Flat
Std Strike Width: 1-1/8"
Strike: 2-3/4" Square Corner Deadbolt Strike
Strike Size: 2-3/4" x 1-1/8"
Strike Style: Lipless, Square Corner
Subtype: Deadbolts
Supplier: Dexter
Type: Mechanical Commercial Locksets
Ul Listing: ANSI A156.2 Series 4000, Grade 1, UL Listed
Unit of Measure: Each
Upc: 043156535668
Upc Code: 43156535668
