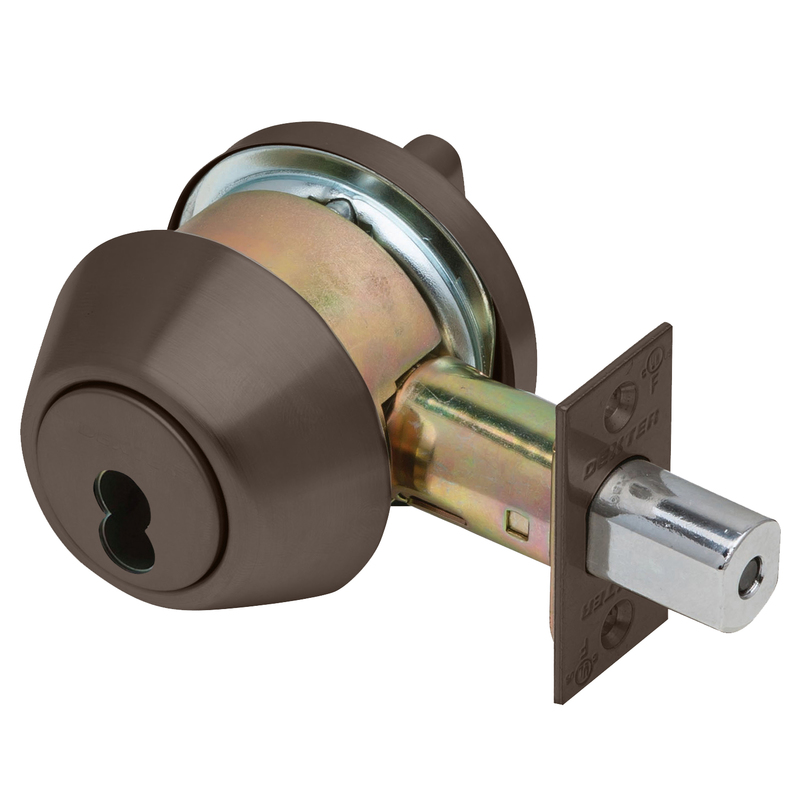

Dexter Commercial DB1000SCT613SFIC Single Cylinder Grade 1 Deadbolt with Small Format IC Prep; Adjustable Backset; and 2-3/4" Square Strike Oil Rubbed Bronze Finish
Attributes
Alternate Codes: DB1000-SCT-613-SFIC, DB1000SCT613SFIC
Backset: Adjustable 2-3/8" to 2-3/4" Backset
Burglar Rated: No
Category: Commercial Deadbolts, Commercial Locks, Deadbolts, Lock Sets, Single Cylinder, Single Cylinder (Commercial)
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Included: No
Cylinder Type: SFIC Cylinder
Door Application: Commercial Deadbolts
Door Bore Size: 2-1/8"
Door Thickness: 1-3/8" to 2"
Door Thickness Max: 2"
Door Thickness Min: 1-5/8"
Finish: Oil Rubbed Bronze
Finish Code: 613
Finish Color: Oil Rubbed Bronze
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Finish Family: Dark Bronze
Fire Rating: 3 Hours {A}
Function: SCT-Single Cylinder Deadbolt
Grade: Grade 1
Hand: Non-Handed
Handing: Non-Handed
Installation: Commercial
Knob/ Lever Style: Inside Thumbturn
Latch Backset Dim: Adjustable 2-3/8" and 2-3/4"
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1"
Latch Bolt Throw: 1"
Latch Bolt Type: Deadbolt
Latch Type: Deadbolt
Limited Warranty: 5 Years
Lock Category: Deadbolts
Manufacturer: Dexter
Origin: Mexico
Pack Qty: 1
Series: DB1000
Std Latch Backset Dim: Adjustable 2-3/8" and 2-3/4"
Std Latch Type: Deadbolt
Std Strike Height: 2-3/4"
Std Strike Type: Flat
Std Strike Width: 1-1/8"
Strike: 2-3/4" Square Corner Deadbolt Strike
Strike Height: 2-3/4"
Strike Size: 2-3/4" x 1-1/8"
Strike Style: Lipless, Square Corner
Strike Type: Flat
Strike Width: 1-1/8"
Subtype: Deadbolts
Supplier: Dexter
Type: Mechanical Commercial Locksets
Ul Listing: ANSI A156.2 Series 4000, Grade 1, UL Listed
Unit of Measure: Each
Upc: 043156535682
Upc Code: 43156535682
