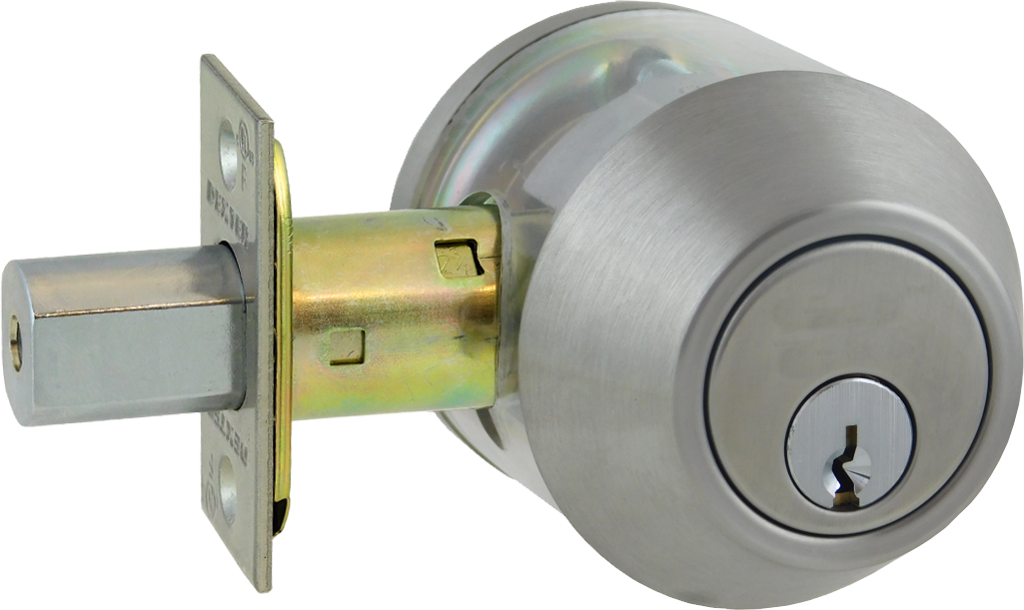

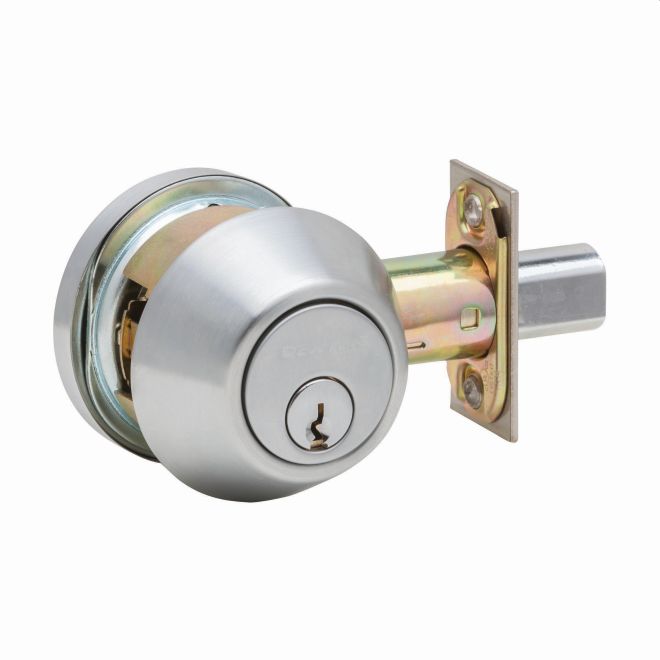

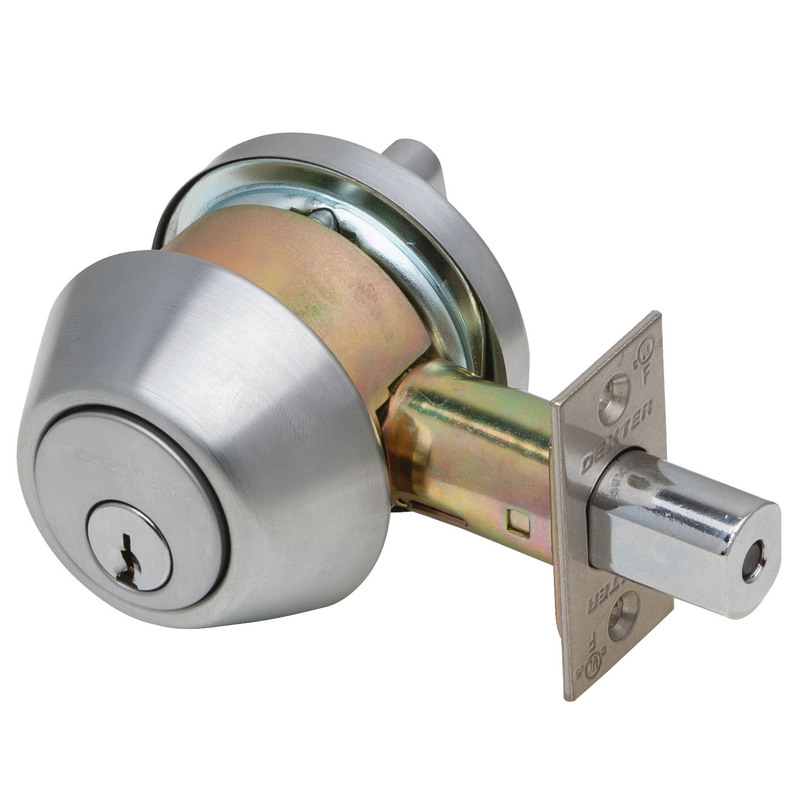

Dexter Commercial DB1000SCT626KDC Single Cylinder Grade 1 Deadbolt offers a robust security solution ideal for commercial applications. This deadbolt is UL listed for a 3-hour fire rating, ensuring reliable performance under critical conditions. It accommodates a door thickness range of 1-3/8" to 1-7/8", making it versatile for various installations. Designed with an adjustable backset, the DB1000SCT626KDC can be set to either 2-3/8" or 2-3/4", providing flexibility for different door configurations. The single cylinder functionality, operated by a thumbturn, enhances ease of use while maintaining a high level of security. Featuring a satin chrome finish, this deadbolt not only looks professional but also resists wear and tear. With a 2-1/8" crossbore size and a square corner lipless strike measuring 1-1/8" x 2-3/4", installation is straightforward and efficient. The 6-pin Schlage C keyway offers an additional layer of security, while the limited 5-year mechanical warranty underscores its durability. Whether you're outfitting a new building or upgrading existing hardware, the Dexter Commercial DB1000SCT626KDC is a reliable choice that meets the demands of modern security needs.
Dexter Commercial Hardware, provides the locksmith customer with a competitive option for locks, exits, and closers. With over 200 SKUs of Grade 1, Grade 2, and residential grade products, Dexter Commercial Hardware is your solution for basic, cost constrained jobs.
Attributes
Manufacturer surcharge: $ 0.0
Alternate Codes: DB1000-SCT-626-KDC, DB1000SCT626KDC
Backset: Adjustable 2-3/8" or 2-3/4" Backset
Burglar Rated: No
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore
Cylinder Included: Yes
Cylinder Type: 6-Pin Cylinder
Door Application: Commercial Deadbolts
Door Bore Size: 2-1/8"
Door Range: 1-3/8" to 1-7/8"
Door Thickness: 1-3/8 In. - 2 In.
Door Thickness Max: 1-7/8"
Door Thickness Min: 1-3/8"
Finish: Satin Chrome
Finish Code: 626
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rating: 3 Hours {A}
Function: SCT-Single Cylinder Deadbolt
Grade: Grade 1
Hand: Not Handed
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Keyway: C

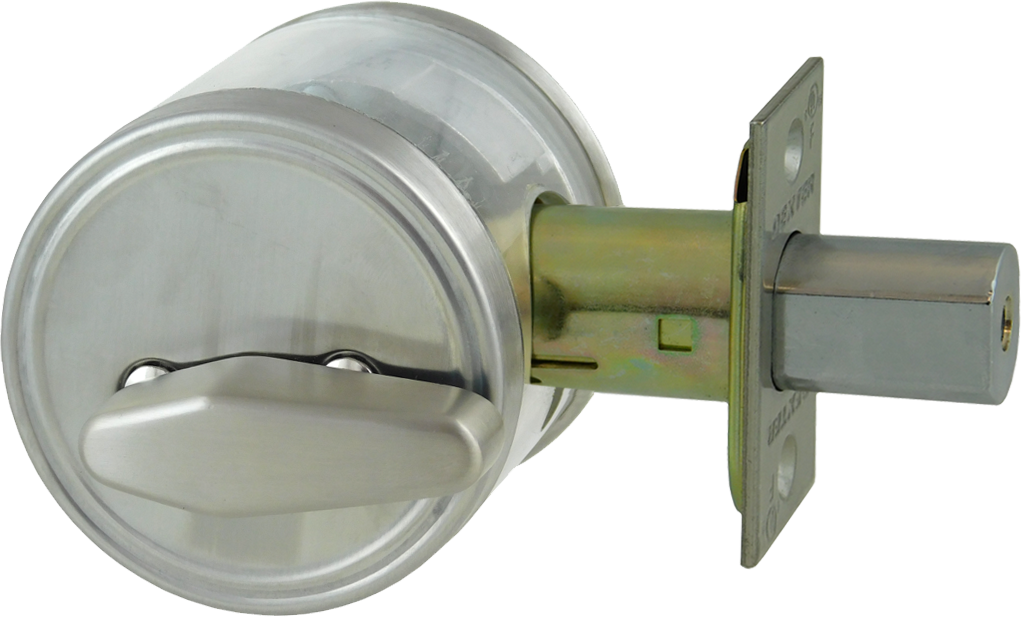

Knob/ Lever Style: Inside Thumbturn
Latch Backset Dim: Adjustable 2-3/8 In. and 2-3/4 In.
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1"
Latch Bolt Throw: 1"
Latch Bolt Type: Deadbolt
Latch Faceplate Dimension: 1-1/8" x 2-3/4"
Latch Type: Deadbolt
Limited Warranty: 5 Years
Lock Category: Deadbolts
Manufacturer: Dexter
Manufacturer Warranty: Limited 5 Year Mechanical Warranty
Material: Brass and Bronze
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Origin: Mexico
PO date: 2024-10-15
Pack Qty: 1
Pins: 6
Restricted Keyway: No
Series: DB1000 Series
Std Keyway: C
Std Latch Backset Dim: Adjustable 2-3/8" and 2-3/4"
Std Latch Type: Deadbolt
Std Strike Height: 2-3/4"
Std Strike Type: Flat
Std Strike Width: 1-1/8"
Strike: 2-3/4" Square Corner Deadbolt Strike
Strike Dimension: 1-1/8" x 2-1/4"
Strike Height: 2-3/4 In.
Strike Size: 2-3/4" x 1-1/8"
Strike Style: Lipless, Square Corner
Strike Type: Flat
Strike Width: 1-1/8 In.
Subcategory: Commercial Deadbolts
Subtype: Deadbolts
Supplier: Dexter
Type: Mechanical Commercial Locksets
Ul Listing: ANSI A156.2 Series 4000, Grade 1, UL Listed
Unit of Measure: Each
Upc: 043156535651
Upc Code: 43156535651
