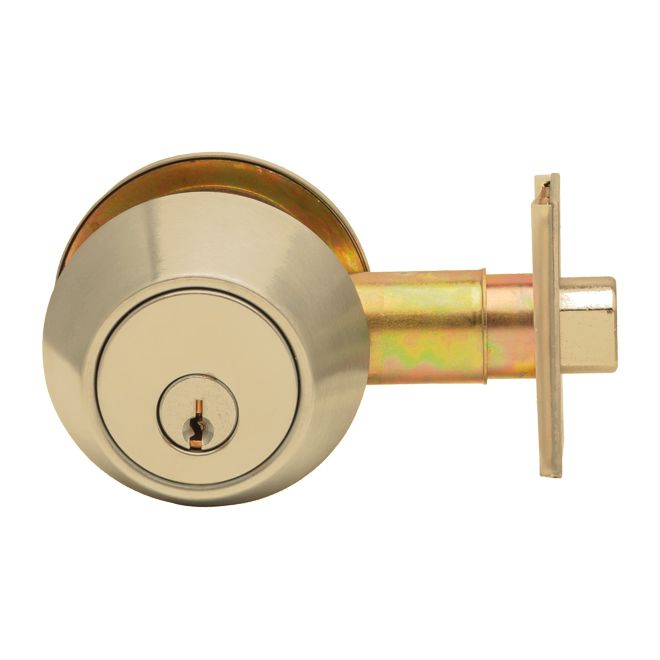

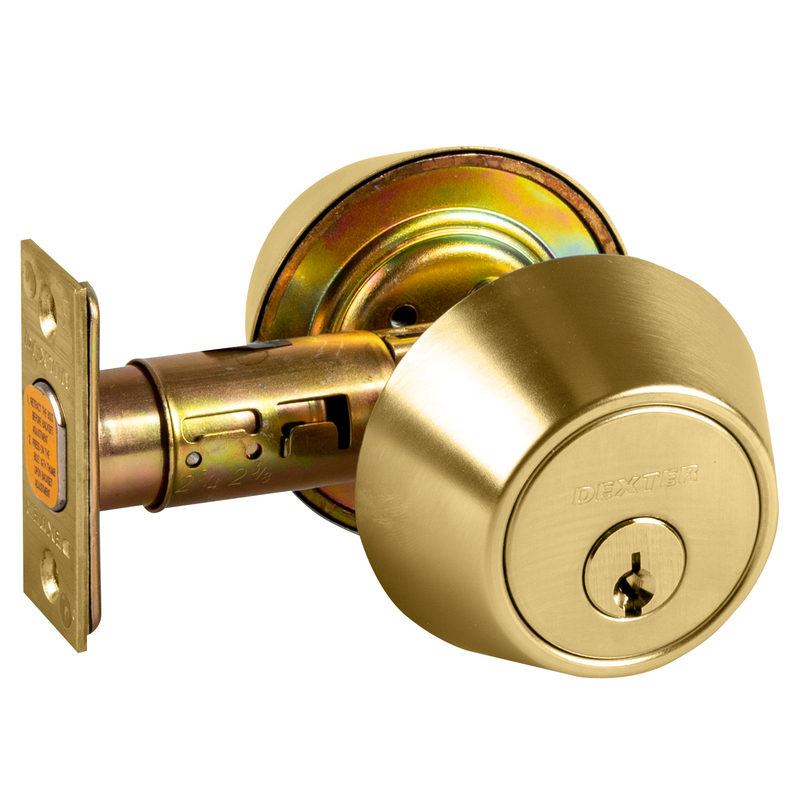

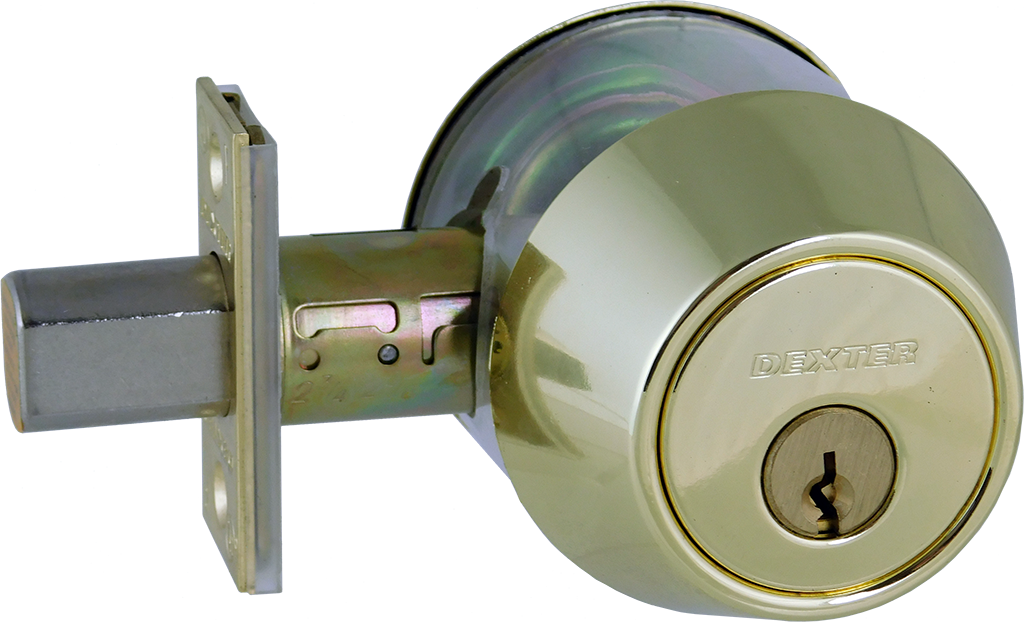

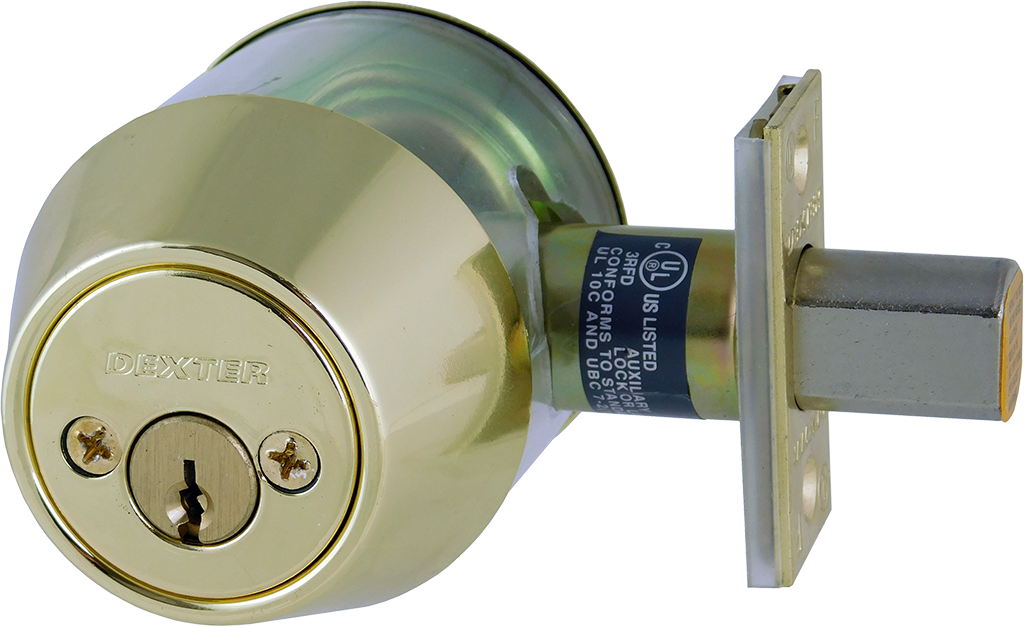

Dexter Commercial DB2000DCT605KDC Double Cylinder Grade 2 Deadbolt offers a versatile and robust solution for security-conscious environments. Designed with a UL listed 3-hour rating, this deadbolt is ideal for applications requiring reliable access control. It accommodates a door thickness ranging from 1-3/8" to 1-3/4", ensuring compatibility with a wide variety of doors. Featuring an adjustable backset of 2-3/8" or 2-3/4", the DB2000DCT605KDC simplifies installation while providing flexibility for different door configurations. The double cylinder function enhances security by requiring a key for both sides, making it suitable for exterior doors where additional protection is necessary. The deadbolt is constructed from brass and bronze materials, finished in bright brass for a polished look that complements any architectural style. It includes a 1-1/8" x 2-3/4" square corner lipless strike for a seamless fit. With a 6-pin Schlage C keyway, users benefit from enhanced key control. Backed by a limited 5-year mechanical warranty, the Dexter DB2000 Series is a dependable choice for commercial deadbolts, combining quality, performance, and aesthetic appeal. Ideal for locksmiths and building professionals, it provides a cost-effective solution without compromising on safety.
Dexter Commercial Hardware, provides the locksmith customer with a competitive option for locks, exits, and closers. With over 200 SKUs of Grade 1, Grade 2, and residential grade products, Dexter Commercial Hardware is your solution for basic, cost constrained jobs.
Attributes
Alternate Codes: DB2000-DCT-605-KDC, DB2000DCT605KDC
Backset: Adjustable 2-3/8" or 2-3/4" Backset
Burglar Rated: No
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore
Cylinder Included: Yes
Cylinder Type: 6-Pin Cylinder
Door Application: Commercial Deadbolts
Door Bore Size: 2-1/8"
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8 In. - 2 In.
Door Thickness Max: 1-3/4"
Door Thickness Min: 1-3/8"
Finish: Bright Brass
Finish Code: 605
Finish Color: Polished Brass
Finish Description: Bright Brass
Finish Family: Polished Brass
Fire Rating: 3 Hours {A}
Function: DCT-Double Cylinder Deadbolt
Grade: Grade 2
Hand: Not Handed
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Keyway: C
Knob/ Lever Style: Inside Thumbturn
Latch Backset Dim: Adjustable 2-3/8 In. and 2-3/4 In.
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/8"
Latch Bolt Throw: 1"
Latch Bolt Type: Deadbolt
Latch Faceplate Dimension: 1-1/8" x 2-3/4"
Latch Type: Deadbolt
Limited Warranty: 5 Years
Lock Category: Deadbolts
Manufacturer: Dexter
Manufacturer Warranty: Limited 5 Year Mechanical Warranty
Material: Brass and Bronze
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Origin: Mexico
Pack Qty: 1
Pins: 6
Restricted Keyway: No
Series: DB2000 Series
Std Keyway: C
Std Latch Backset Dim: Adjustable 2-3/8" and 2-3/4"
Std Latch Type: Deadbolt
Std Strike Height: 2-3/4"
Std Strike Type: Flat
Std Strike Width: 1-1/8"
Strike: 2-3/4" Square Corner Deadbolt Strike
Strike Dimension: 1-1/8" x 2-1/4"
Strike Height: 2-3/4 In.
Strike Size: 2-3/4" x 1-1/8"
Strike Style: Lipless, Square Corner
Strike Type: Flat
Strike Width: 1-1/8 In.
Subcategory: Commercial Deadbolts
Subtype: Deadlock
Supplier: Dexter
Type: LOCK SETS
Ul Listing: ANSI A156.2 Series 4000, Grade 2, UL Listed
Unit of Measure: Each
Upc: 043156535781
Upc Code: 43156535781
