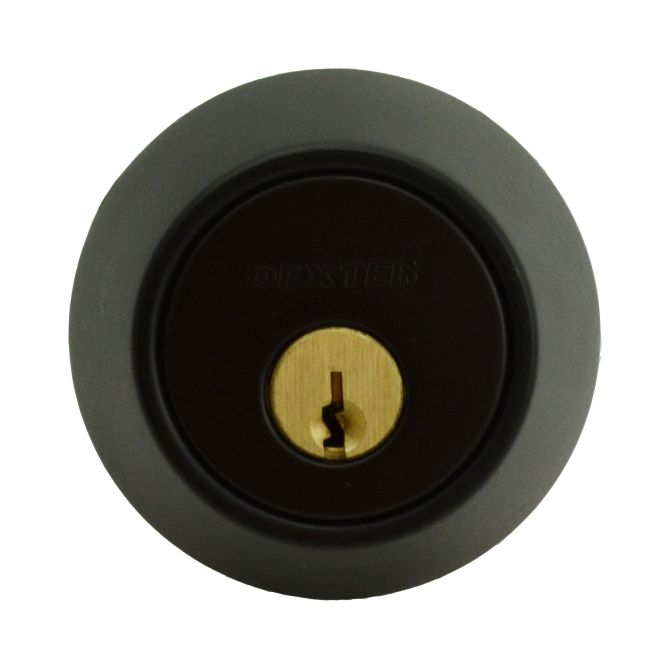

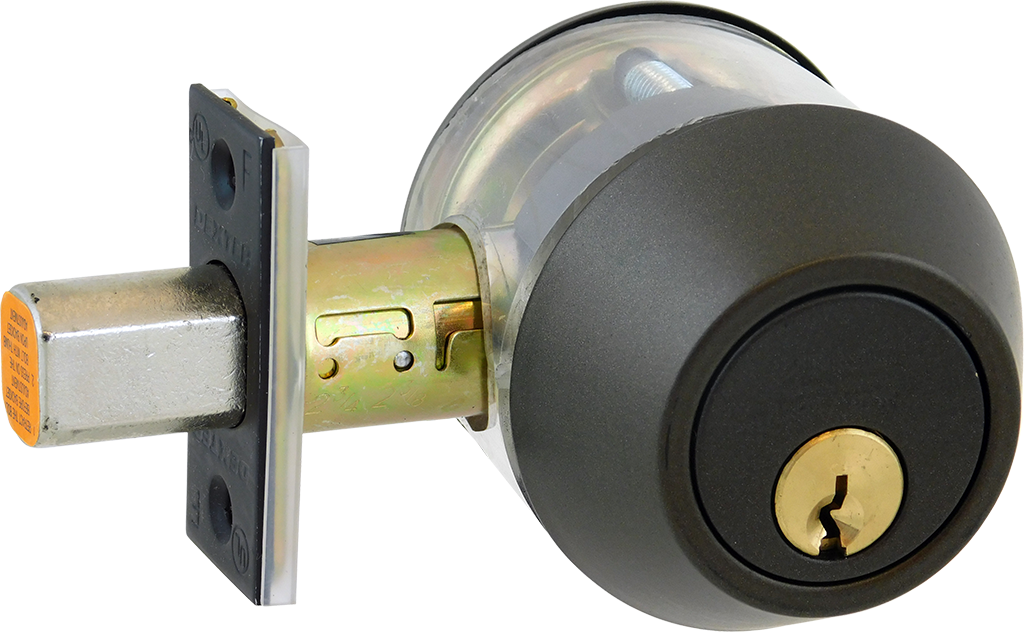

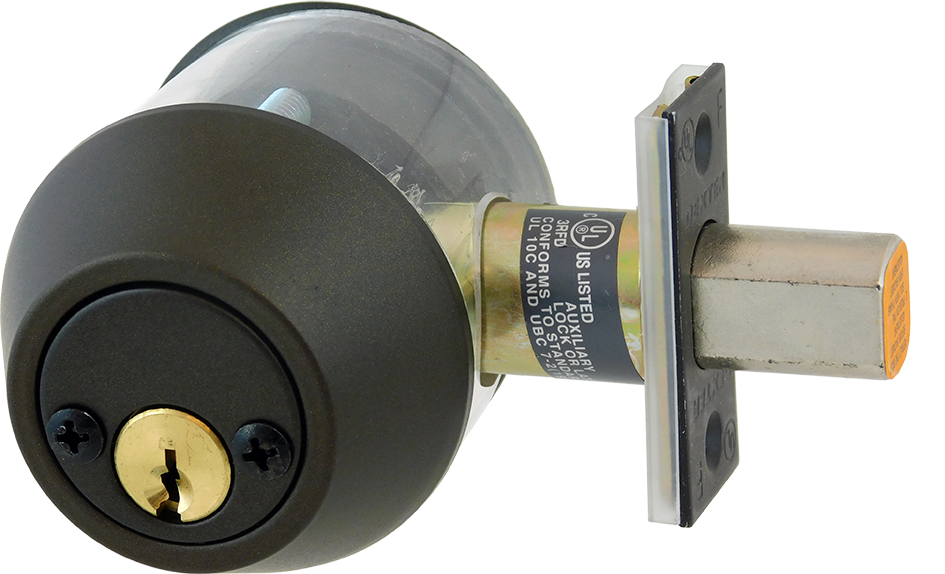

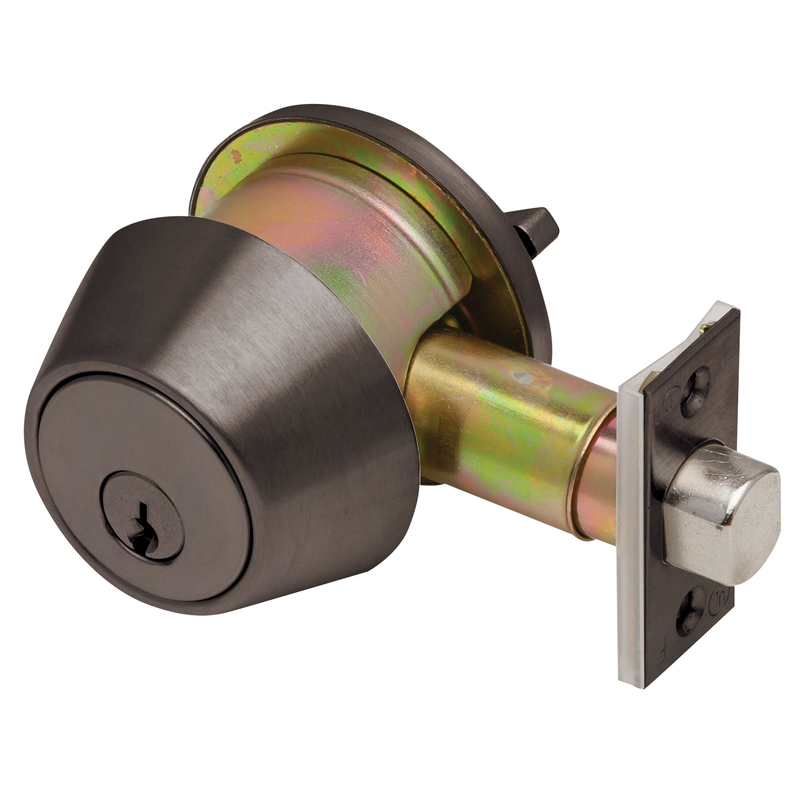

Dexter Commercial DB2000DCT613KDC Double Cylinder Grade 2 Deadbolt offers a robust and reliable locking solution for diverse commercial applications. This deadbolt is UL listed for 3-hour fire resistance, ensuring safety and security in your building’s entrances. Designed to accommodate conventional cylinder doors ranging from 1-3/8" to 1-3/4" in thickness, it features an adjustable backset of 2-3/8" or 2-3/4", making installation straightforward and adaptable. The DB2000 series boasts a double cylinder function, which allows for locking from both sides, enhancing security in high-risk areas. Its oil-rubbed bronze finish not only adds an elegant touch but also provides durability against wear and tear. The deadbolt includes a 2-3/4" square corner strike and a 1-1/8" x 2-3/4" latch faceplate, tailored for seamless integration with your existing hardware. With a 6 pin Schlage C keyway, this deadbolt offers increased key control and versatility. Backed by a limited 5-year mechanical warranty, Dexter Commercial stands behind the quality and reliability of its products, making the DB2000DCT613KDC an excellent choice for professionals seeking a dependable locking solution.
Dexter Commercial Hardware, provides the locksmith customer with a competitive option for locks, exits, and closers. With over 200 SKUs of Grade 1, Grade 2, and residential grade products, Dexter Commercial Hardware is your solution for basic, cost constrained jobs.
Attributes
Alternate Codes: DB2000-DCT-613-KDC, DB2000DCT613KDC
Backset: Adjustable 2-3/8" or 2-3/4" Backset
Burglar Rated: No
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore
Cylinder Included: Yes
Cylinder Type: 6-Pin Cylinder
Door Application: Commercial Deadbolts
Door Bore Size: 2-1/8"
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8 In. - 2 In.
Door Thickness Max: 1-3/4"
Door Thickness Min: 1-3/8"
Finish: Oil Rubbed Bronze
Finish Code: 613
Finish Color: Oil Rubbed Bronze
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Finish Family: Dark Bronze
Fire Rating: 3 Hours {A}
Function: DCT-Double Cylinder Deadbolt
Grade: Grade 2
Hand: Not Handed
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Keyway: C
Knob/ Lever Style: Inside Thumbturn
Latch Backset Dim: Adjustable 2-3/8 In. and 2-3/4 In.
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/8"
Latch Bolt Throw: 1"
Latch Bolt Type: Deadbolt
Latch Faceplate Dimension: 1-1/8" x 2-3/4"
Latch Type: Deadbolt
Limited Warranty: 5 Years
Lock Category: Deadbolts
Manufacturer: Dexter
Manufacturer Warranty: Limited 5 Year Mechanical Warranty
Material: Bronze
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Origin: Mexico
Pack Qty: 1
Pins: 6
Restricted Keyway: No
Series: DB2000 Series
Std Keyway: C
Std Latch Backset Dim: Adjustable 2-3/8" and 2-3/4"
Std Latch Type: Deadbolt
Std Strike Height: 2-3/4"
Std Strike Type: Flat
Std Strike Width: 1-1/8"
Strike: 2-3/4" Square Corner Deadbolt Strike
Strike Dimension: 1-1/8" x 2-1/4"
Strike Height: 2-3/4 In.
Strike Size: 2-3/4" x 1-1/8"
Strike Style: Lipless, Square Corner
Strike Type: Flat
Strike Width: 1-1/8 In.
Subcategory: Commercial Deadbolts
Subtype: Deadbolts
Supplier: Dexter
Type: Mechanical Commercial Locksets
Ul Listing: ANSI A156.2 Series 4000, Grade 2, UL Listed
Unit of Measure: Each
Upc: 431565357818
Upc Code: 43156535781
